Home >> Mitsubishi >> 1994 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Diagnostic Procedures (Charts) >> C-8 Faulty Auto Reverse

C-8 Faulty Auto Reverse

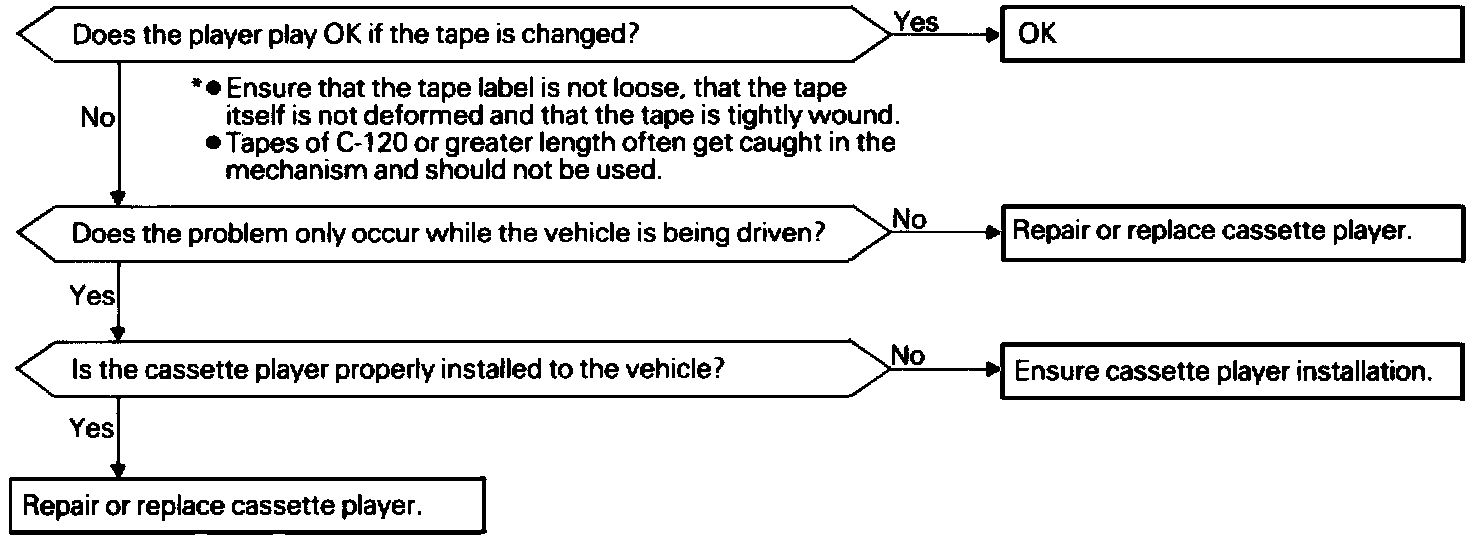

Chart C-8:





Faulty auto reverse
