Home >> Mitsubishi >> 1994 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Diagnostic Procedures (Charts) >> C-1 Cassette Tape Is Not Accepted

C-1 Cassette Tape Is Not Accepted

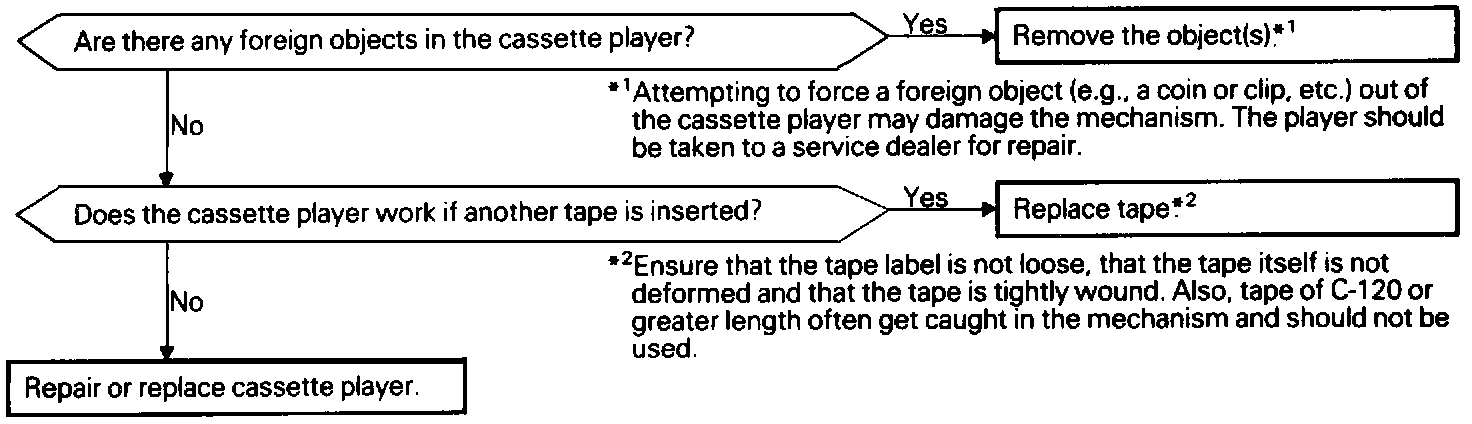

Chart C-1:





Cassette tape will not be accepted.
