Eclipse AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Testing and Inspection
>>
Symptom Diagnostic Procedures (Charts)
>>
B-7 Two Few Automatic Select Station
B-7 Two Few Automatic Select Station

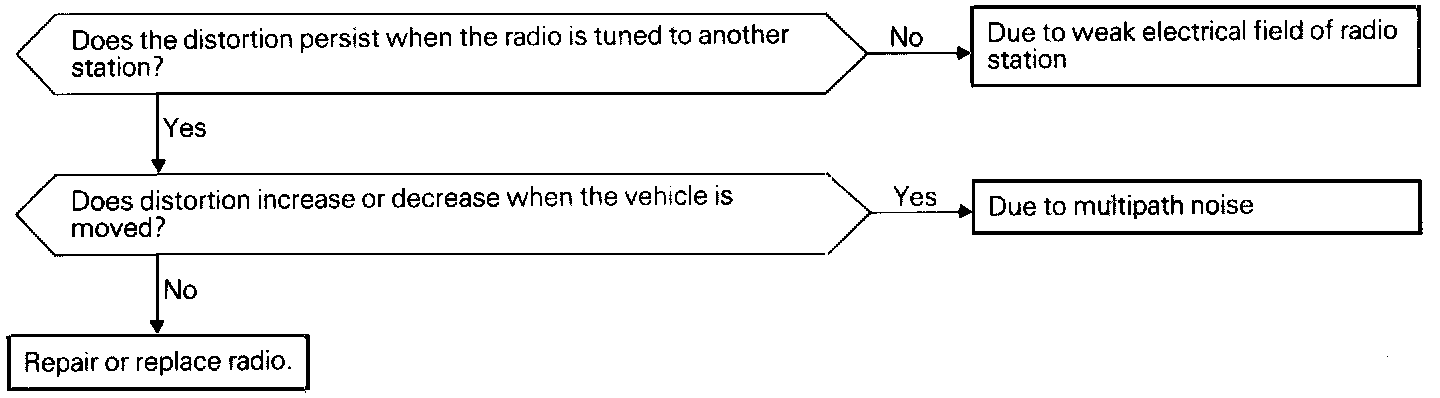

Chart B-7:
Distortion on FM only.
