B-1 No Power Is Supplied When the Switch Is Turned on
B-1 No Power Is Supplied When the Switch Is Turned on

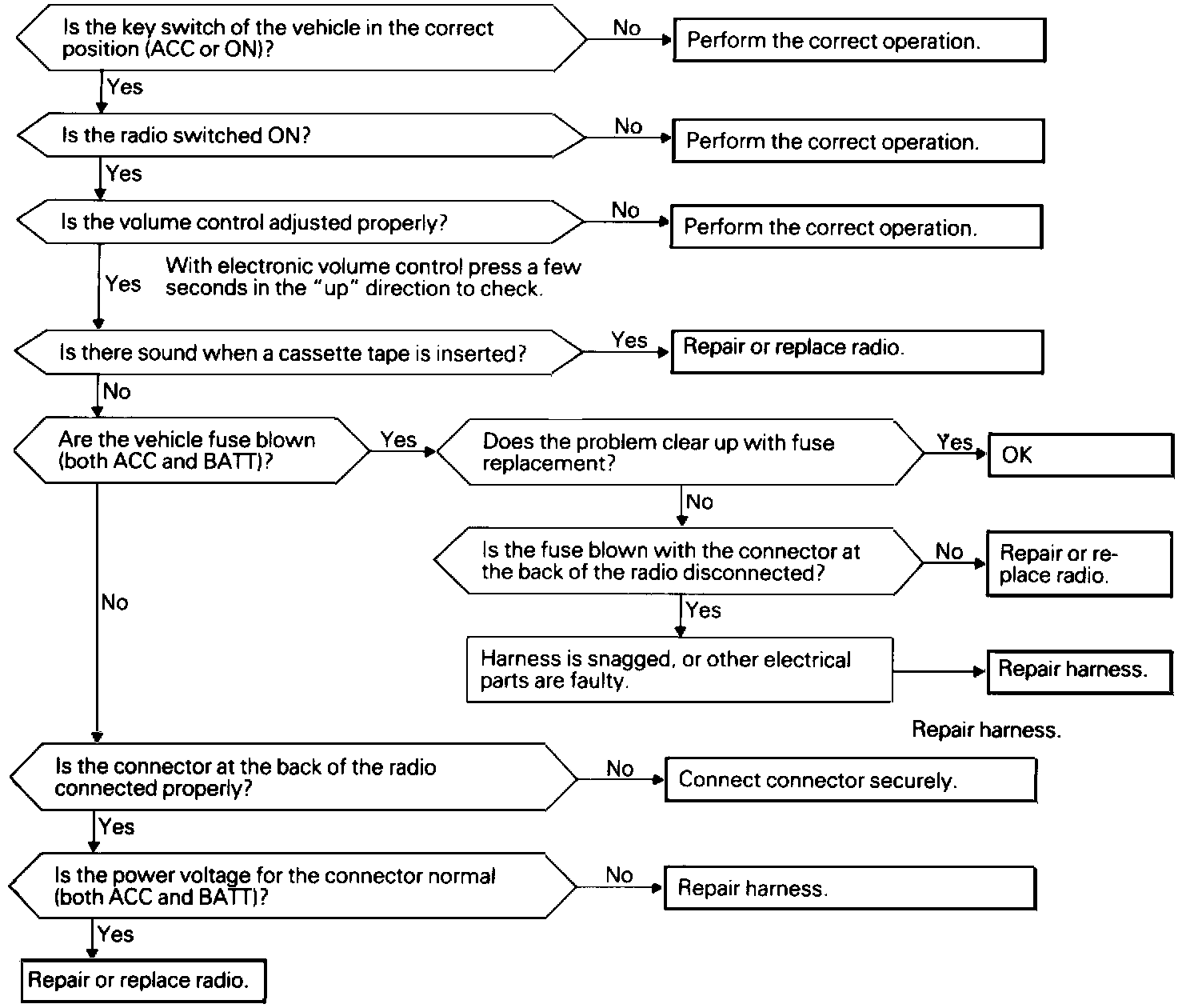

Chart B-1:
No sound.
