Removal and Installation Steps

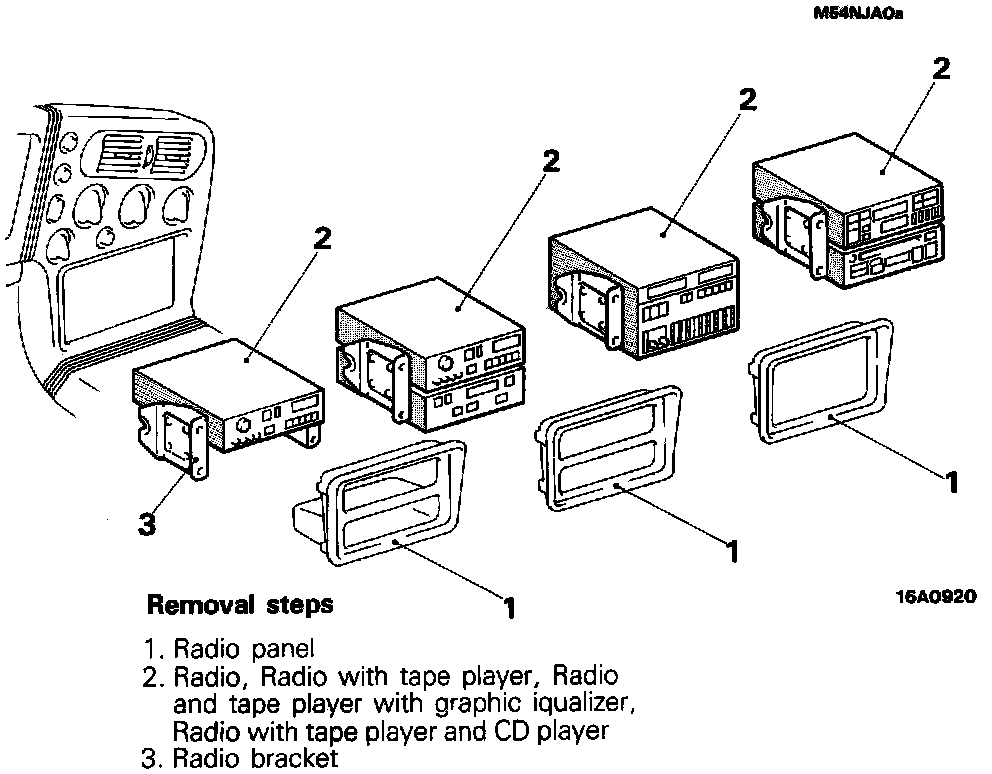

Radio And Tape Player - Removal And Installation:





REMOVE
1. Radio panel
2. Radio, Radio with tape player, Radio and tape player with graphic iqualizer, Radio with tape player and CD player
3. Radio bracket

INSTALL
1. Radio bracket
2. Radio, Radio with tape player, Radio and tape player with graphic iqualizer, Radio with tape player and CD player
3. Radio panel
