Antenna: Service and Repair

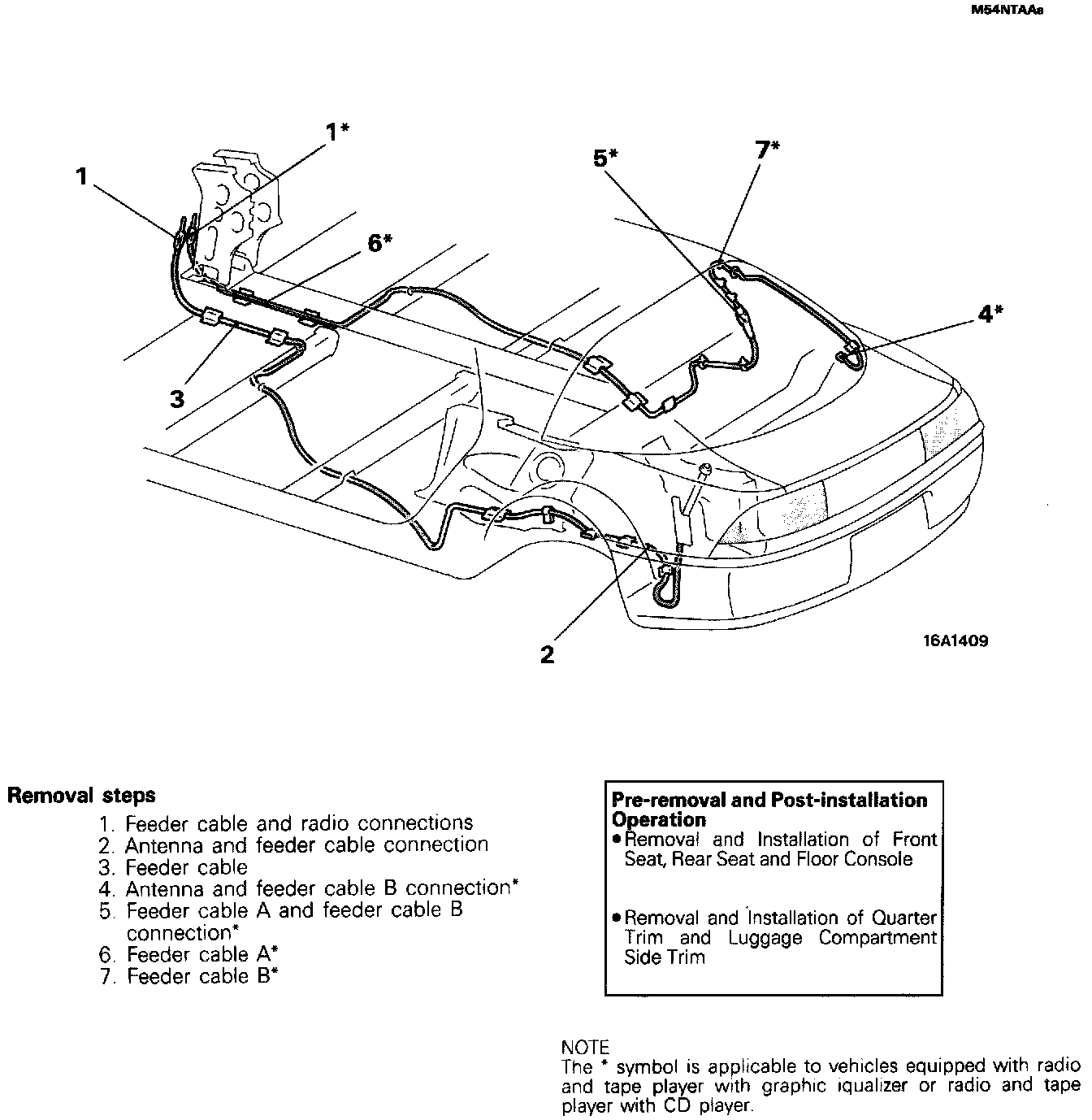

Feeder Cable:

REMOVE
- Front seat, Rear seat and floor console
- Quarter trim and luggage compartment side trim
1. Feeder cable and radio connections
2. Antenna and feeder cable connection
3. Feeder cable
4. Antenna and feeder cable B connection*
5. Feeder cable A and feeder cable B connection*
6. Feeder cable A*
7. Feeder cable B*

INSTALL
1. Feeder cable B*
2. Feeder cable A*
3. Feeder cable A and feeder cable B connection*
4. Antenna and feeder cable B connection*
5. Feeder cable
6. Antenna and feeder cable connection
7. Feeder cable and radio connections
- Quarter trim and luggage compartment side trim
- Front seat, Rear seat and floor console


NOTE: * The symbol is applicable to vehicles equipped with radio and tape player with graphic equalizer or radio and tape player with CD player.
