E-2 Motor Antenna Extends and Retracts But Does Not Receive
E-2 Motor Antenna Extends and Retracts But Does Not Receive

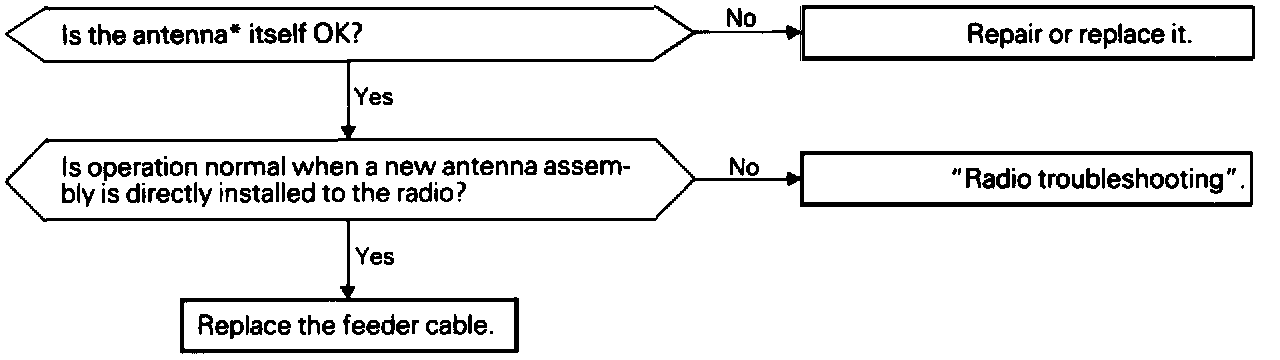

Chart E-2:

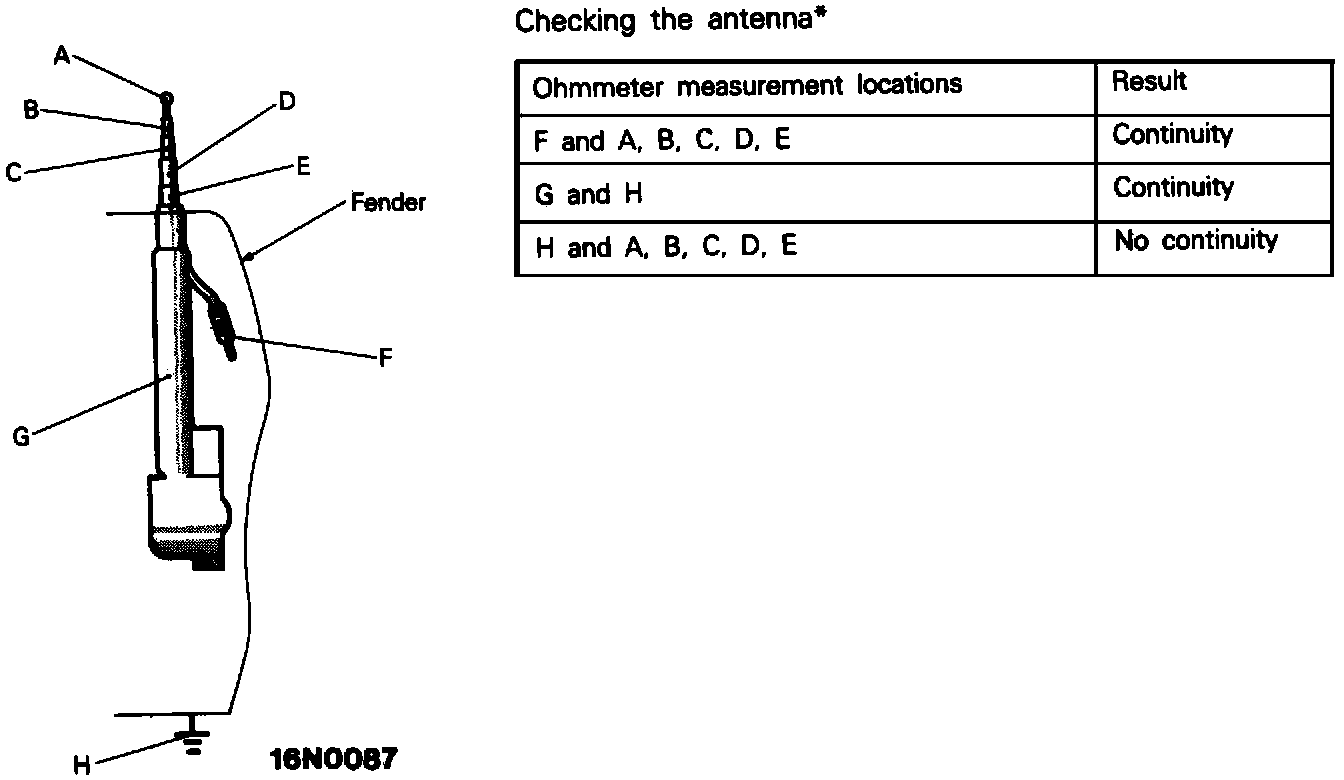

Checking The Antenna:
Motor antenna extends and retracts but does not receive.
