Antenna Motor: Service and Repair

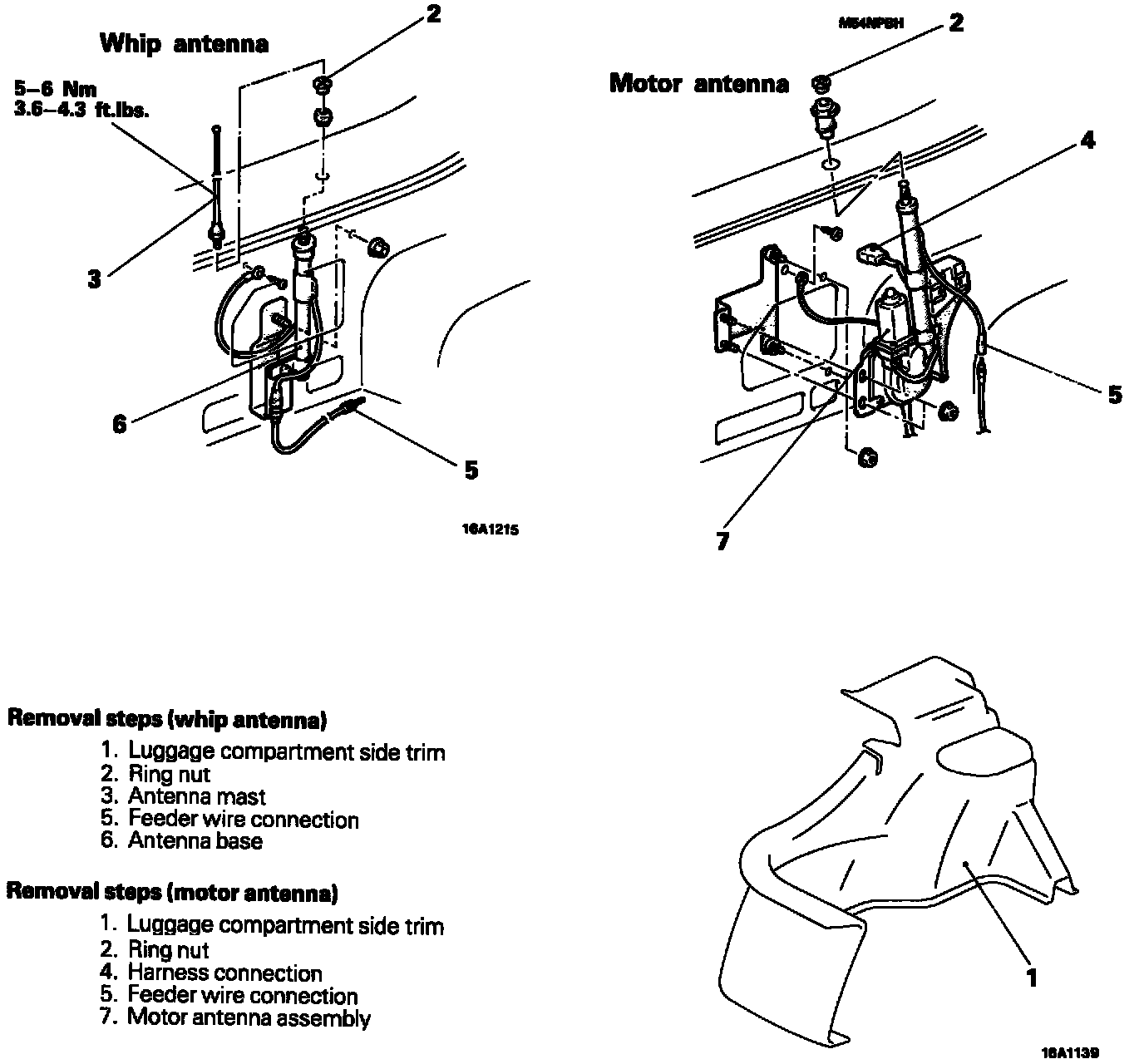

Antenna Assembly - Removal And Installation:

REMOVE
Whip Antenna
1. Luggage compartment side trim
2. Ring
3. Antenna mast
5. Feeder wire connection
6. Antenna base

Motor Antenna
1. Luggage compartment side trim
2. Ring
4. Harness connection
5. Feeder wire connection
7. Motor antenna assembly


INSTALL
Whip Antenna
1. Antenna base
2. Feeder wire connection
3. Antenna mast
5. Ring
6. Luggage compartment side trim

Motor Antenna
1. Motor antenna assembly
2. Feeder wire connection
4. Harness connection
5. Ring
7. Luggage compartment side trim
