Home >> Mitsubishi >> 1994 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Items Indicated By the Malfunction Indicator Lamp

Items Indicated By the Malfunction Indicator Lamp

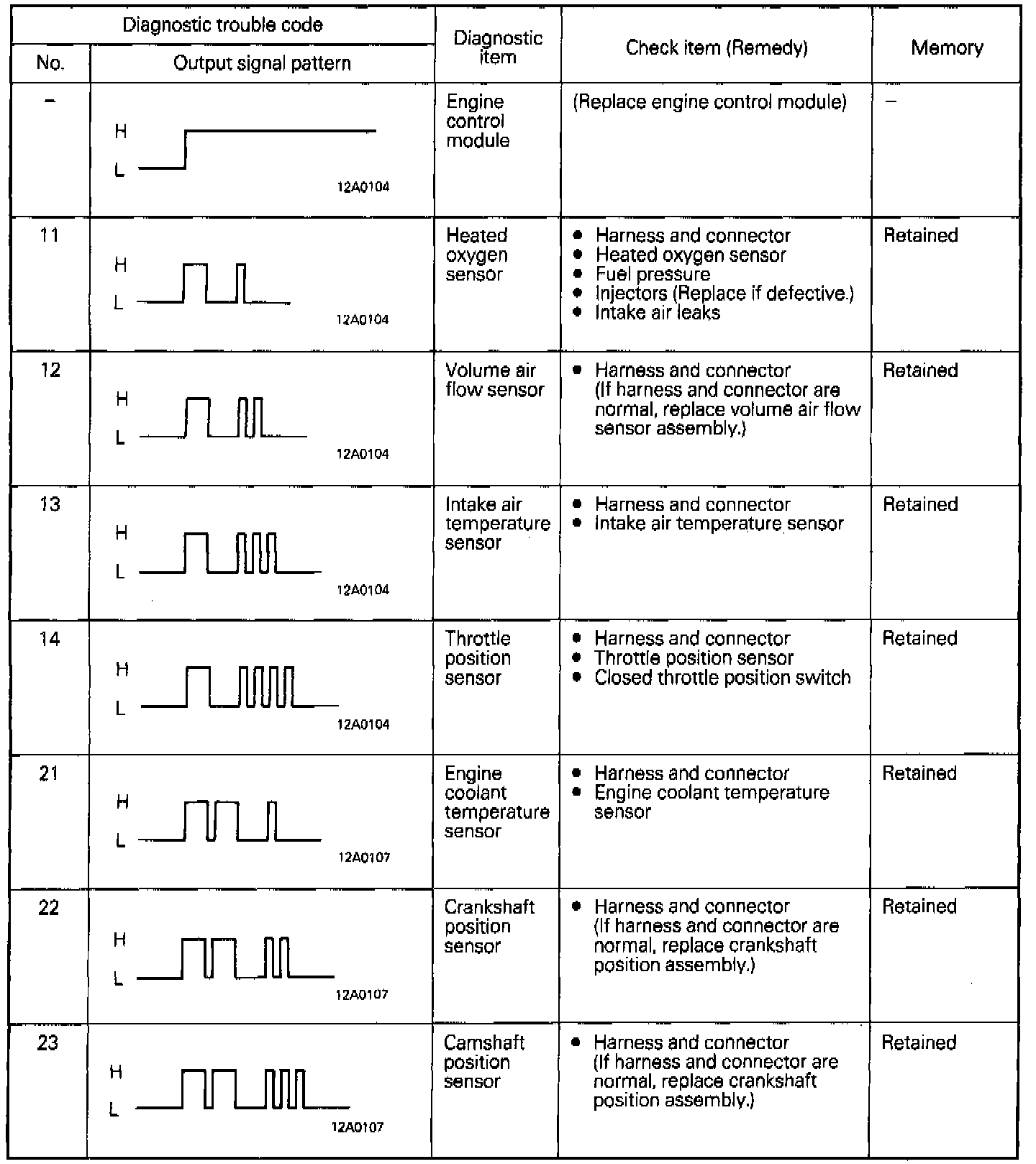

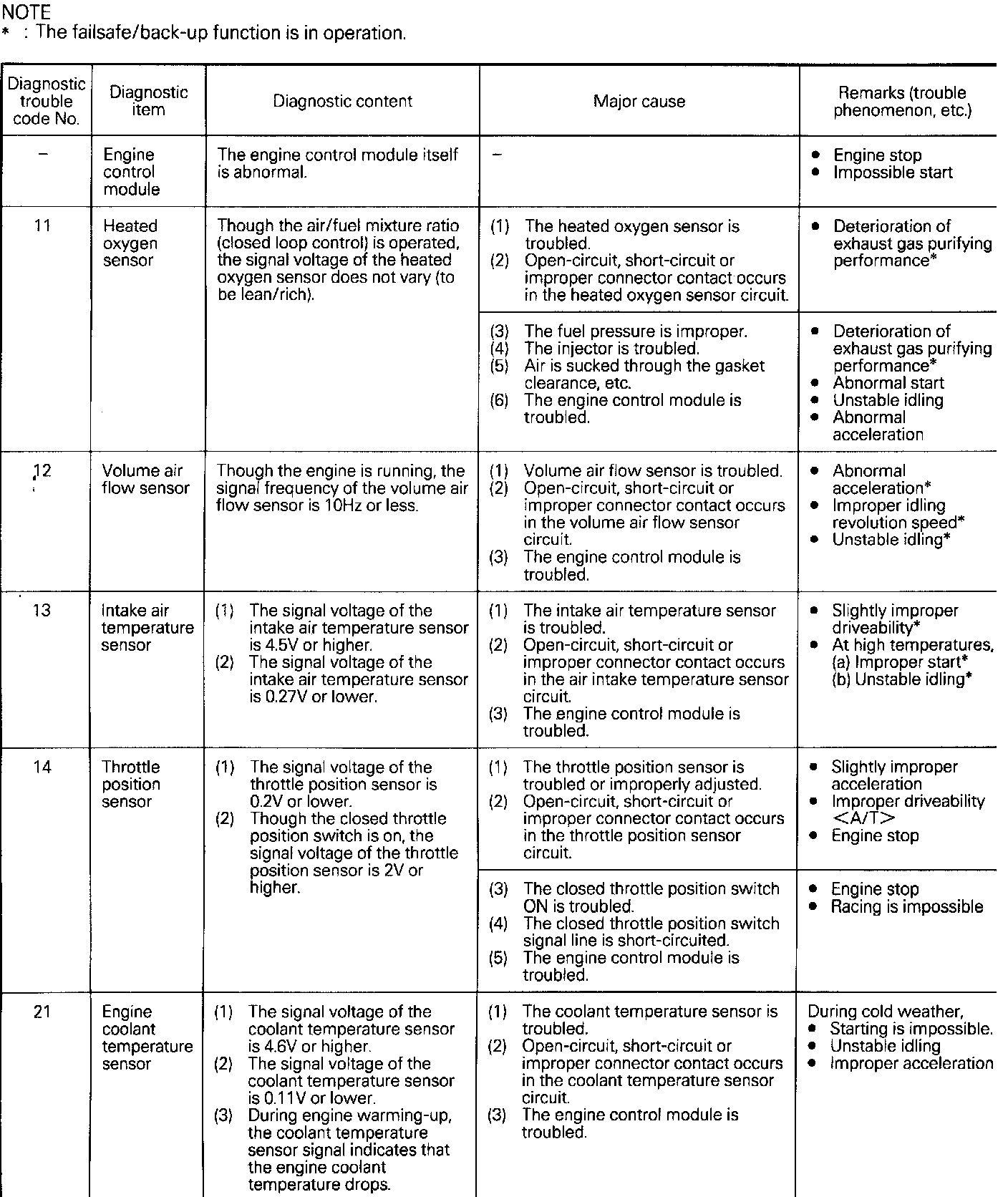

Code 11 - Code 21:

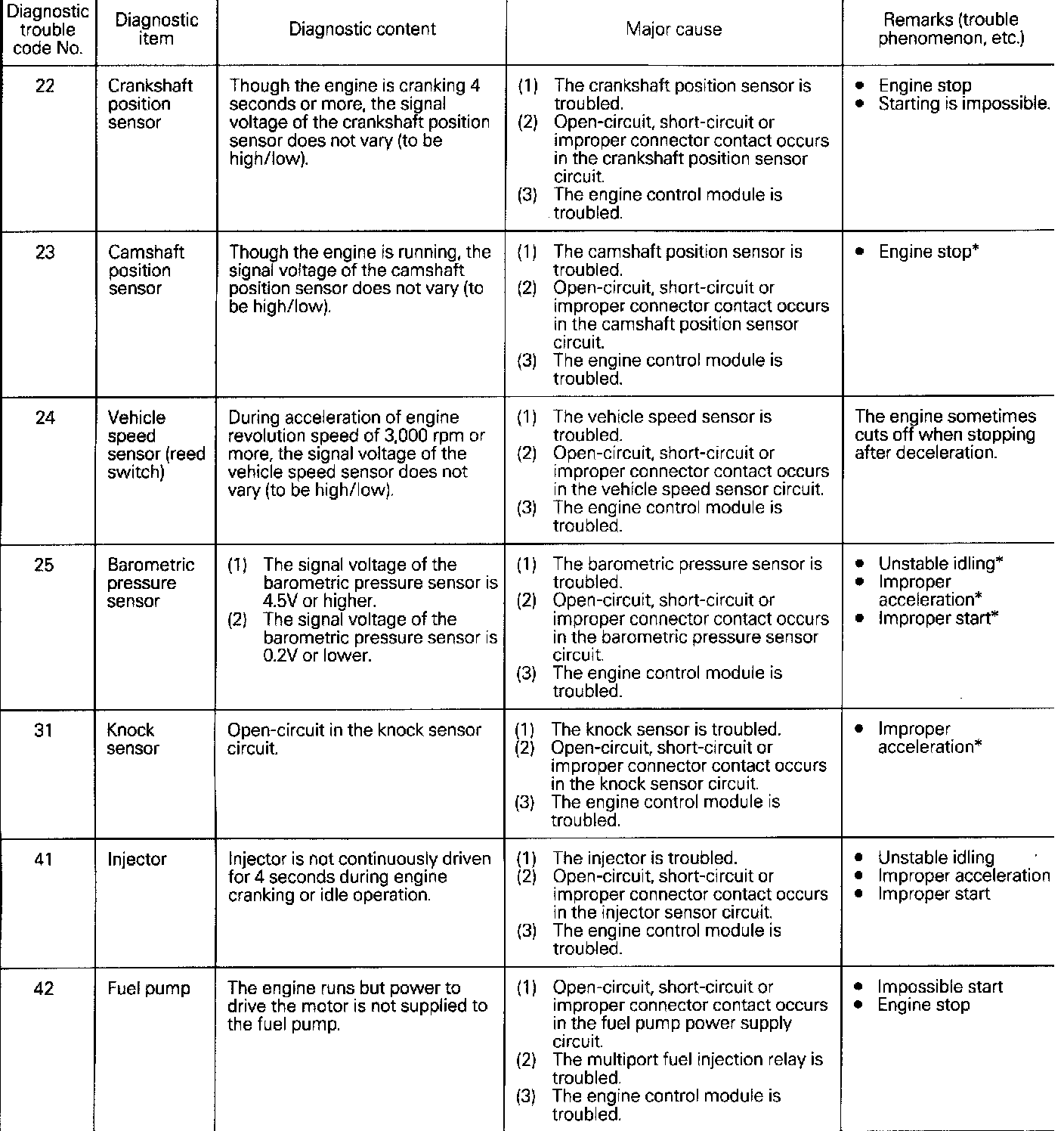

Code 22 - Code 42:

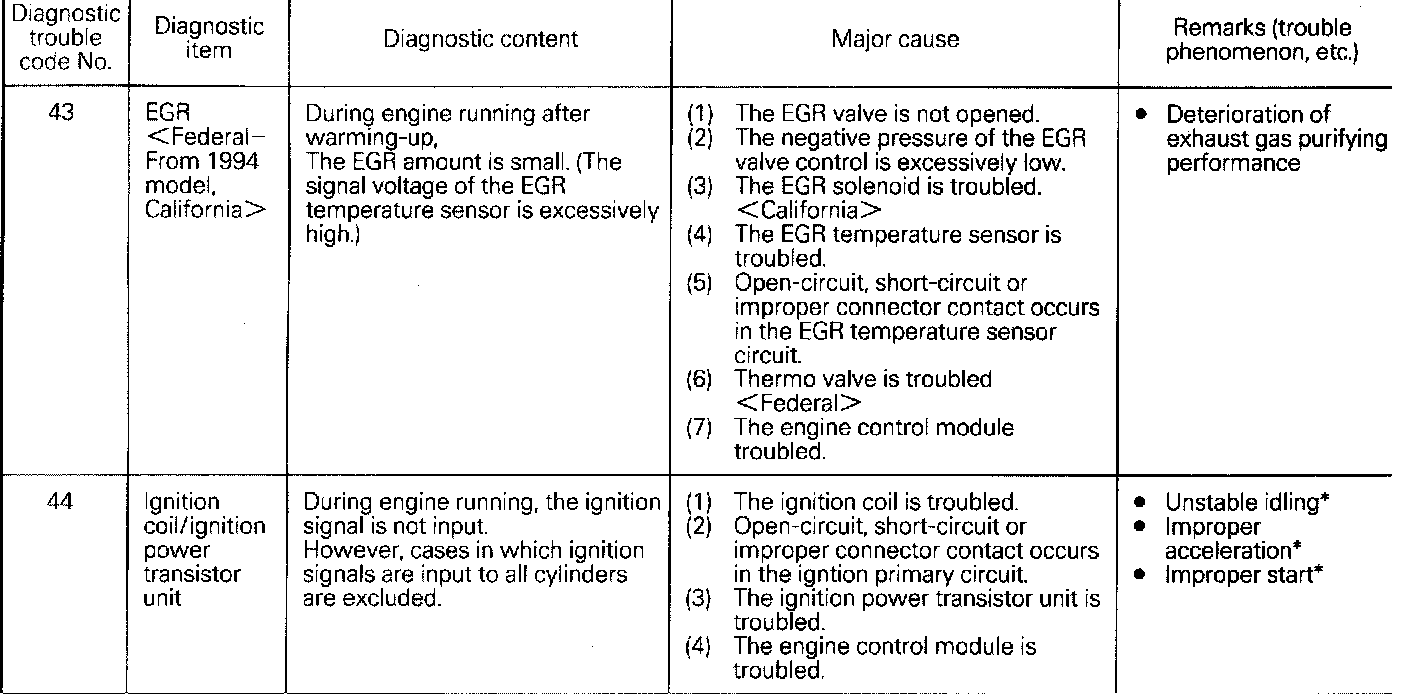

Code 43 - Code 44:
