Home >> Mitsubishi >> 1992 >> Mirage L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Locations >> 3-Speed

3-Speed

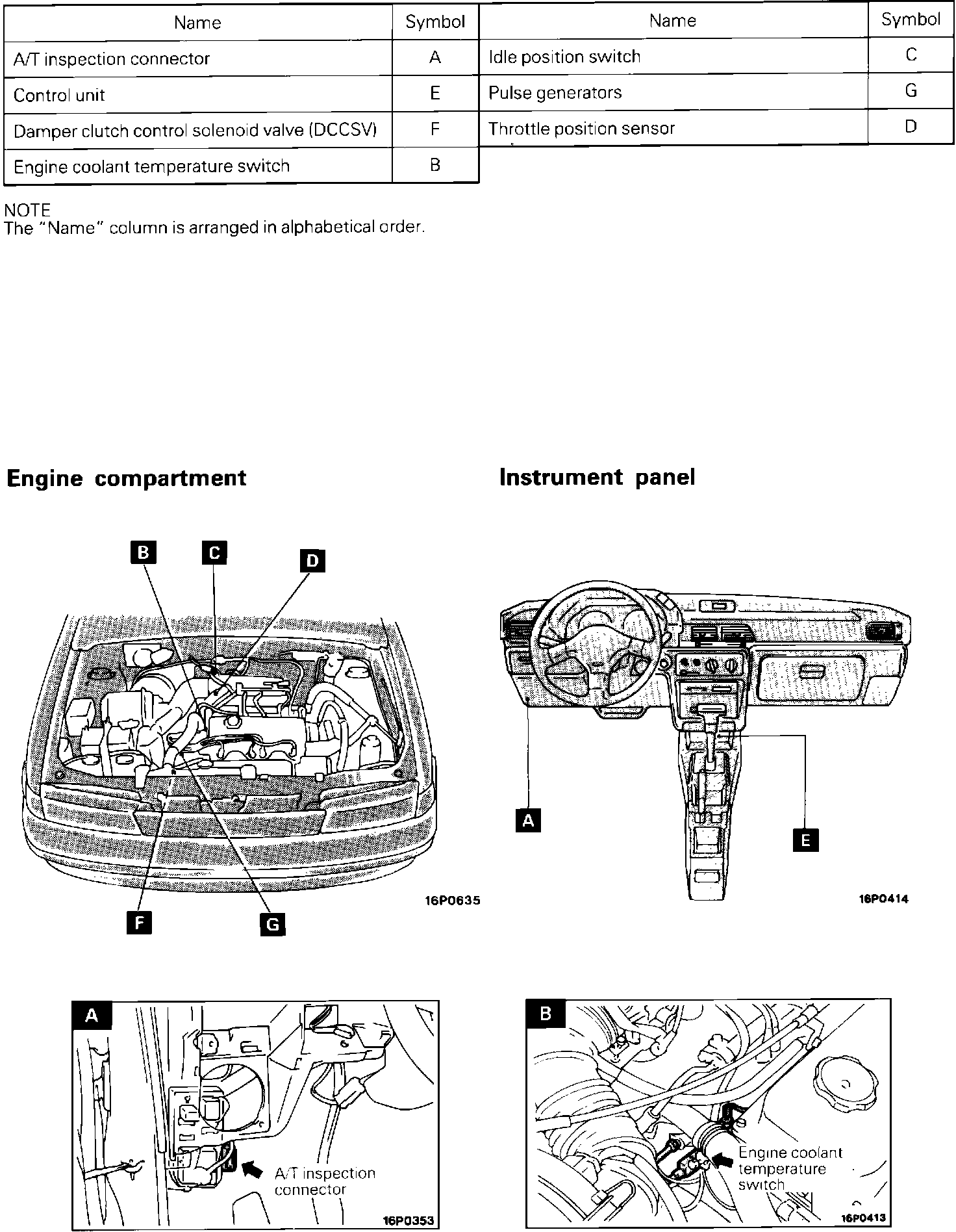

Automatic Transaxle (3-Speed): Component Locations:

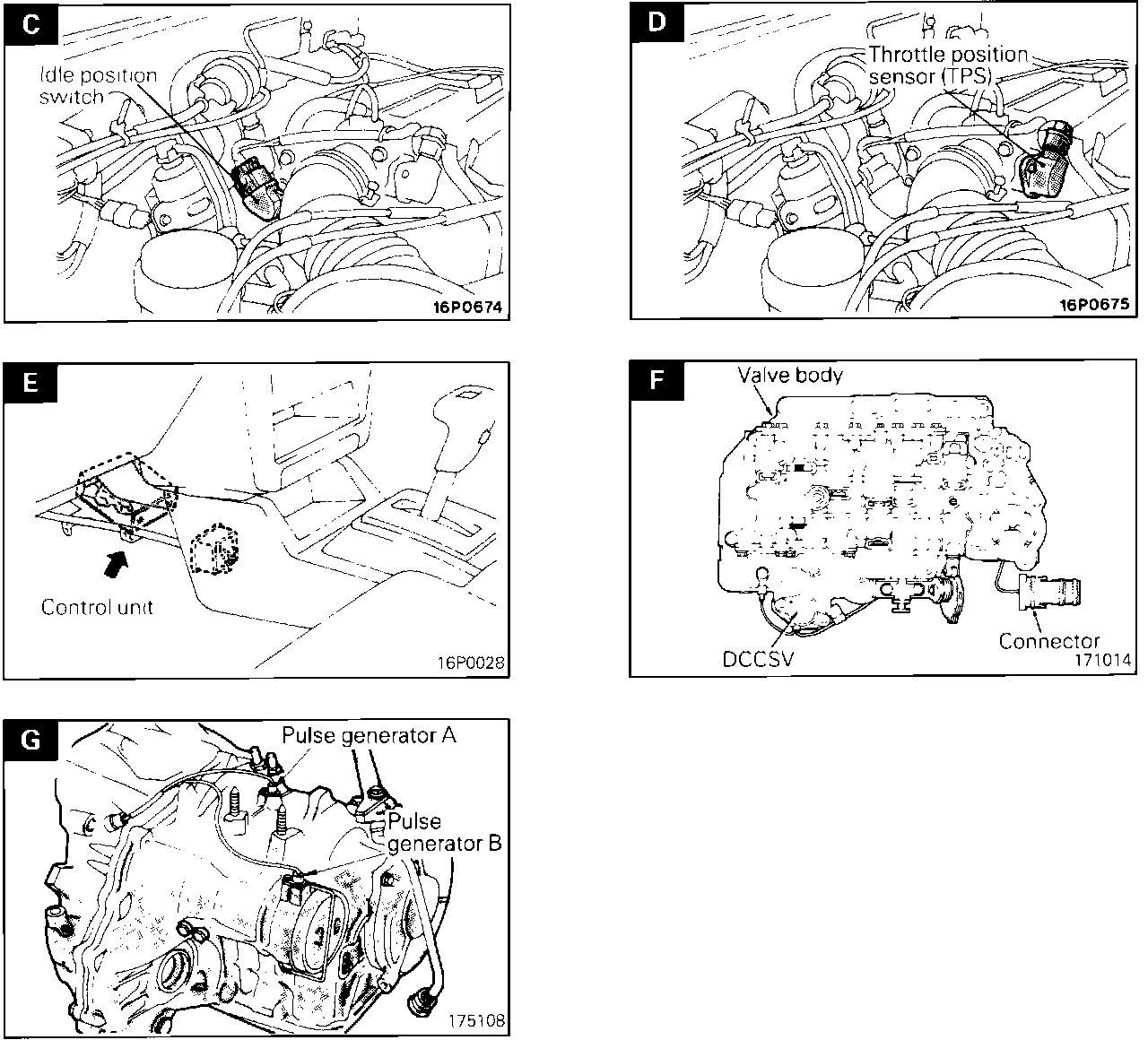

Automatic Transaxle (3-Speed): Component Locations:
