Home >> Mitsubishi >> 1992 >> Mirage L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations >> Component Locations

Component Locations

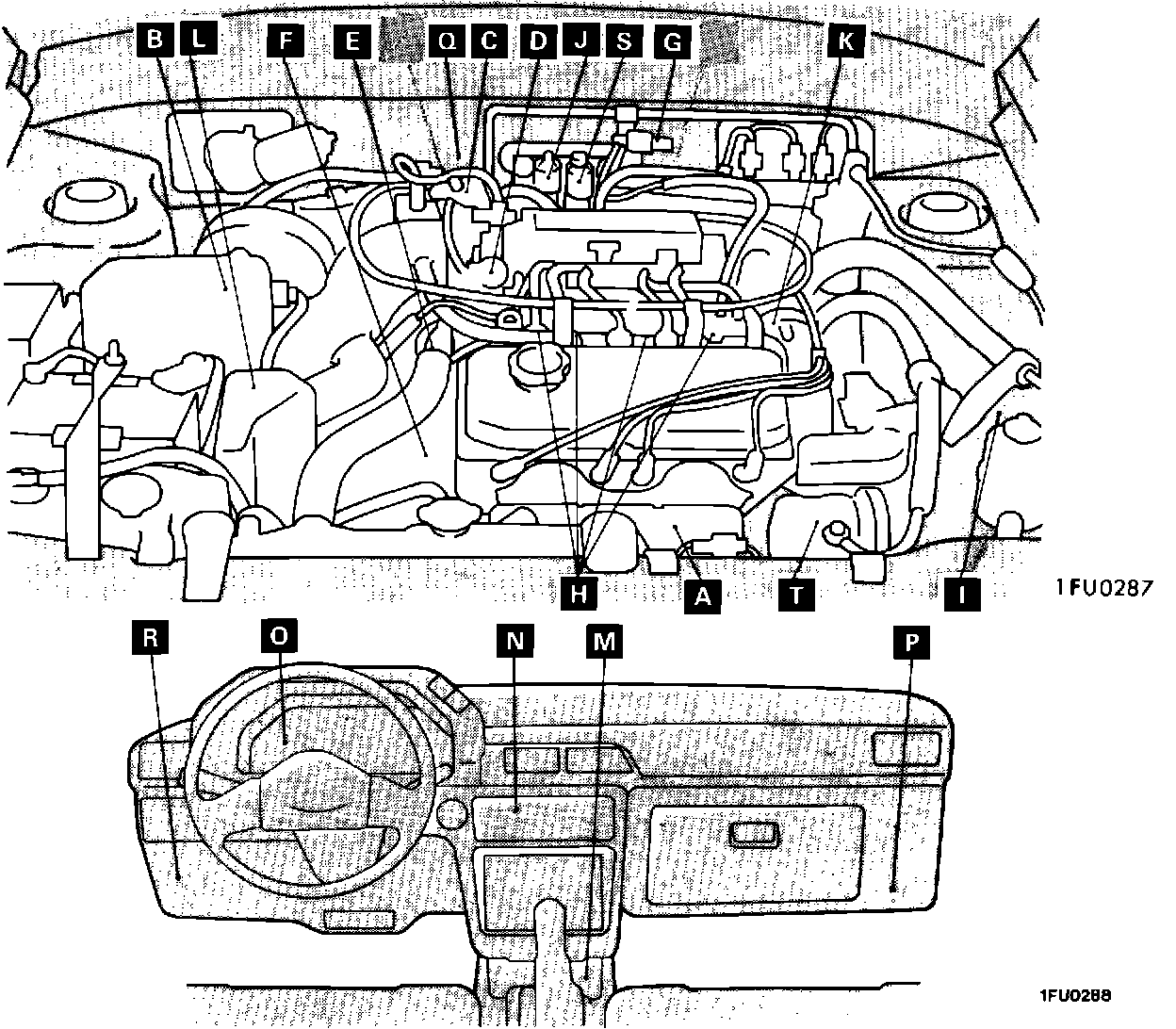

Engine Management: Component Location:

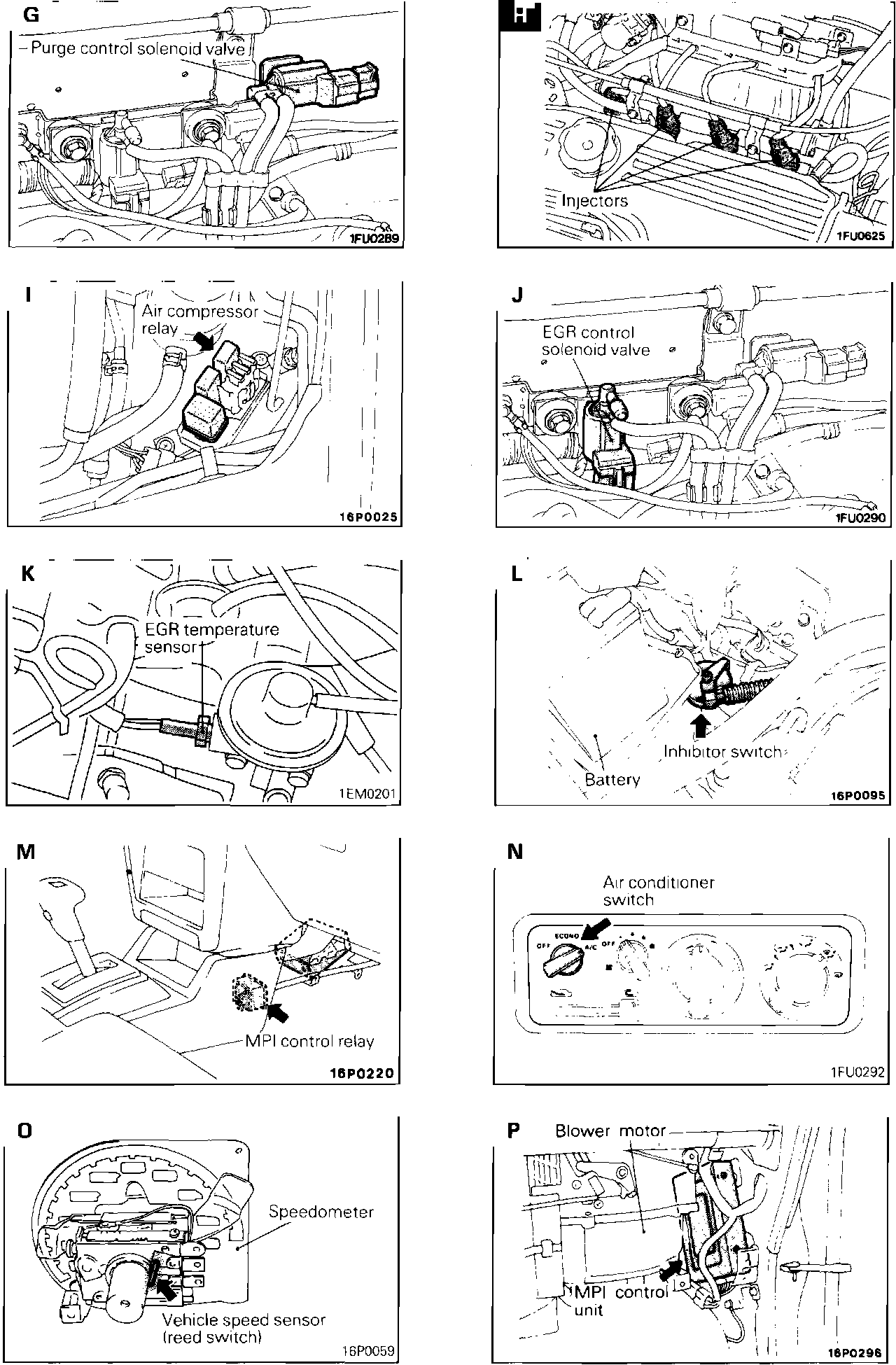

Engine Management: Component Location:

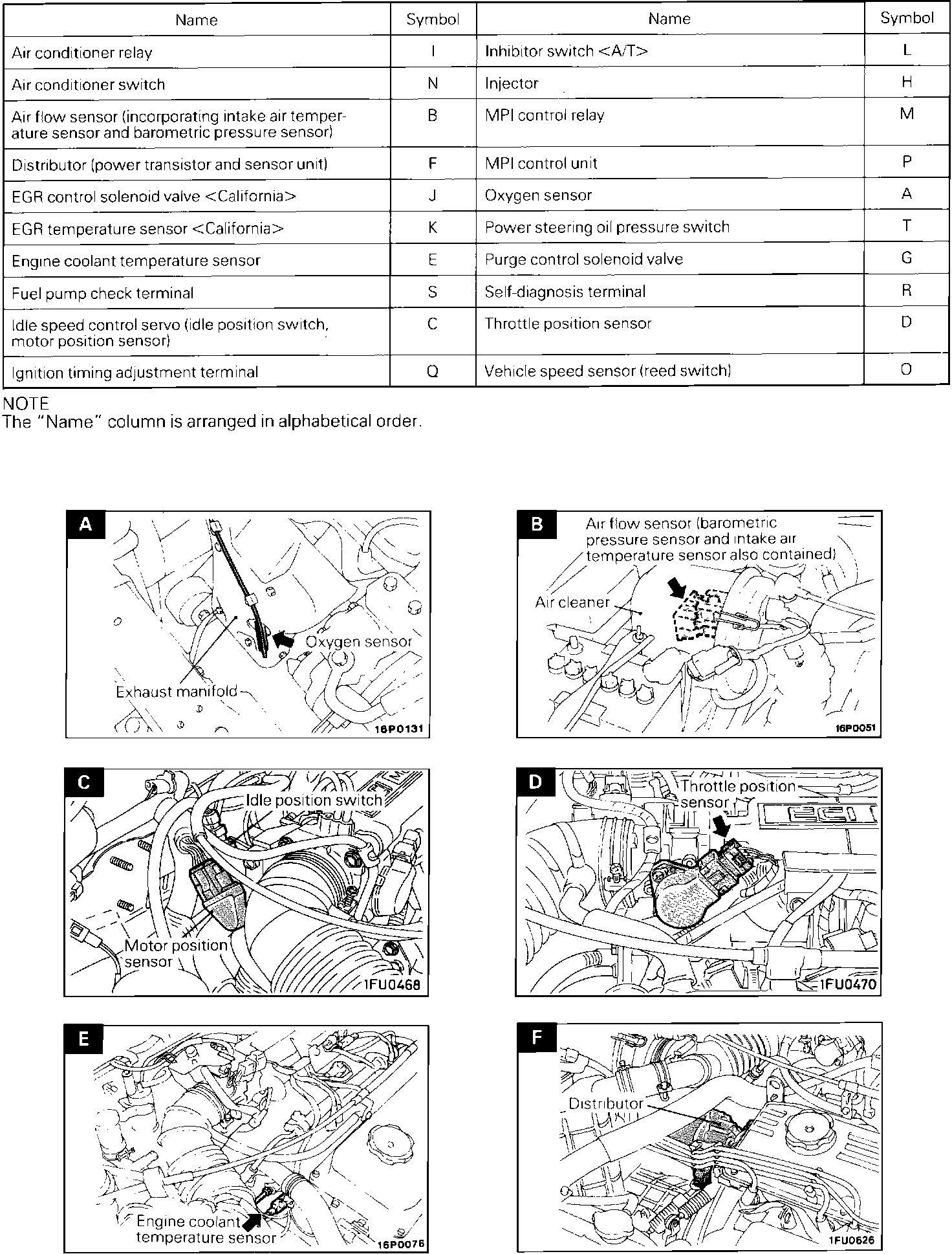

Engine Management: Component Location:

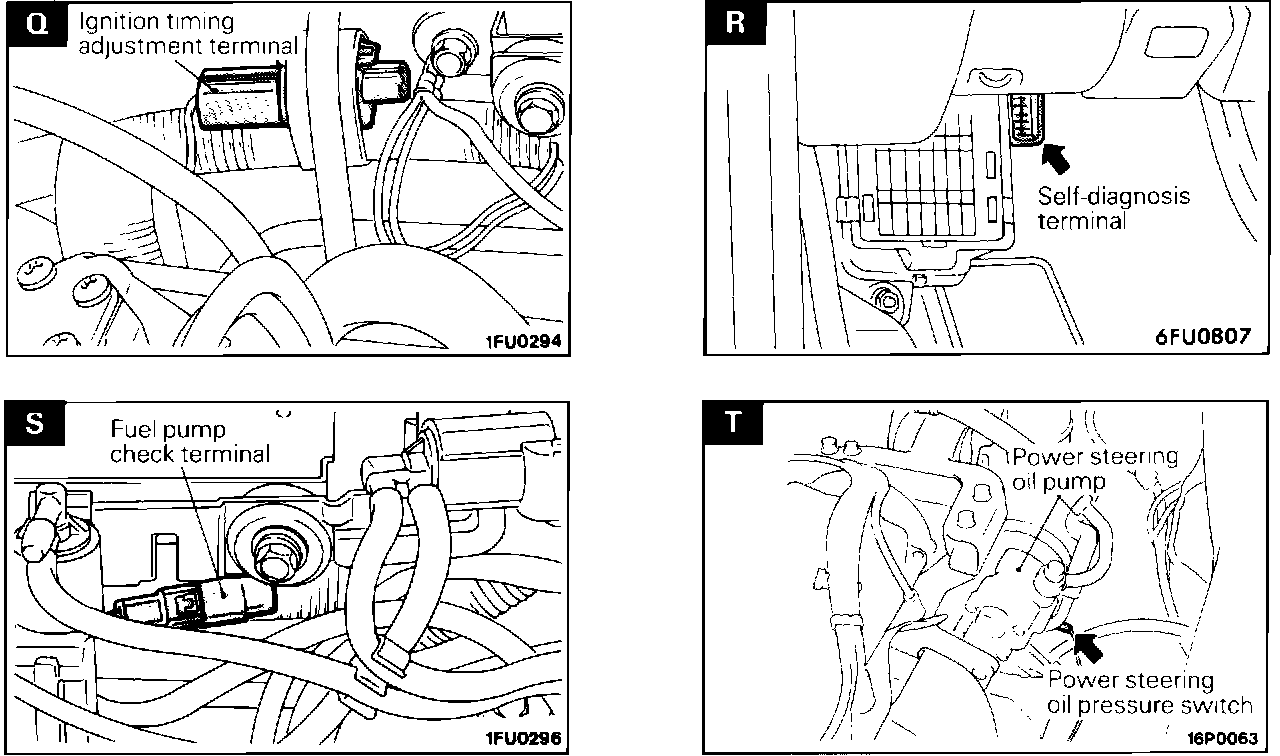

Engine Management: Component Location:
