Rear Window Wiper Motor Replace

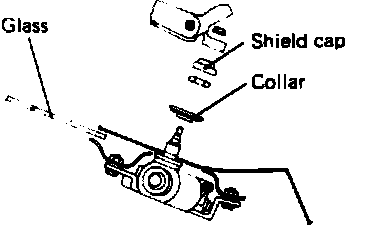

Fig. 18 Rear Wiper Motor Installation:

1. Disconnect battery ground cable.
2. Raise wiper arm pivot cover, then remove pivot shaft locking nut.
3. Remove wiper arm and shield cap, Fig. 18.
4. Remove nut and collar.
5. Remove hatch trim.
6. Remove rear wiper motor bracket mounting nuts, then remove rear wiper motor assembly from hatch.
7. Reverse procedure to install.
