Charging System: Testing and Inspection

Charging System Troubleshooting:

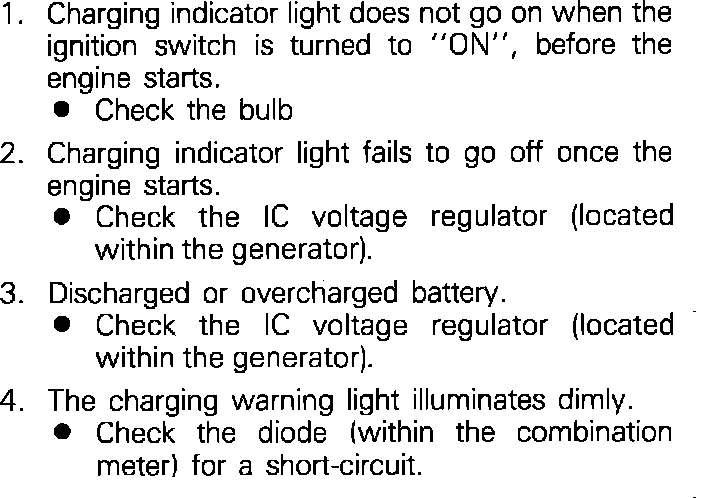

Fig. 1 Troubleshooting Chart:
