Seat Belt Systems: Locations

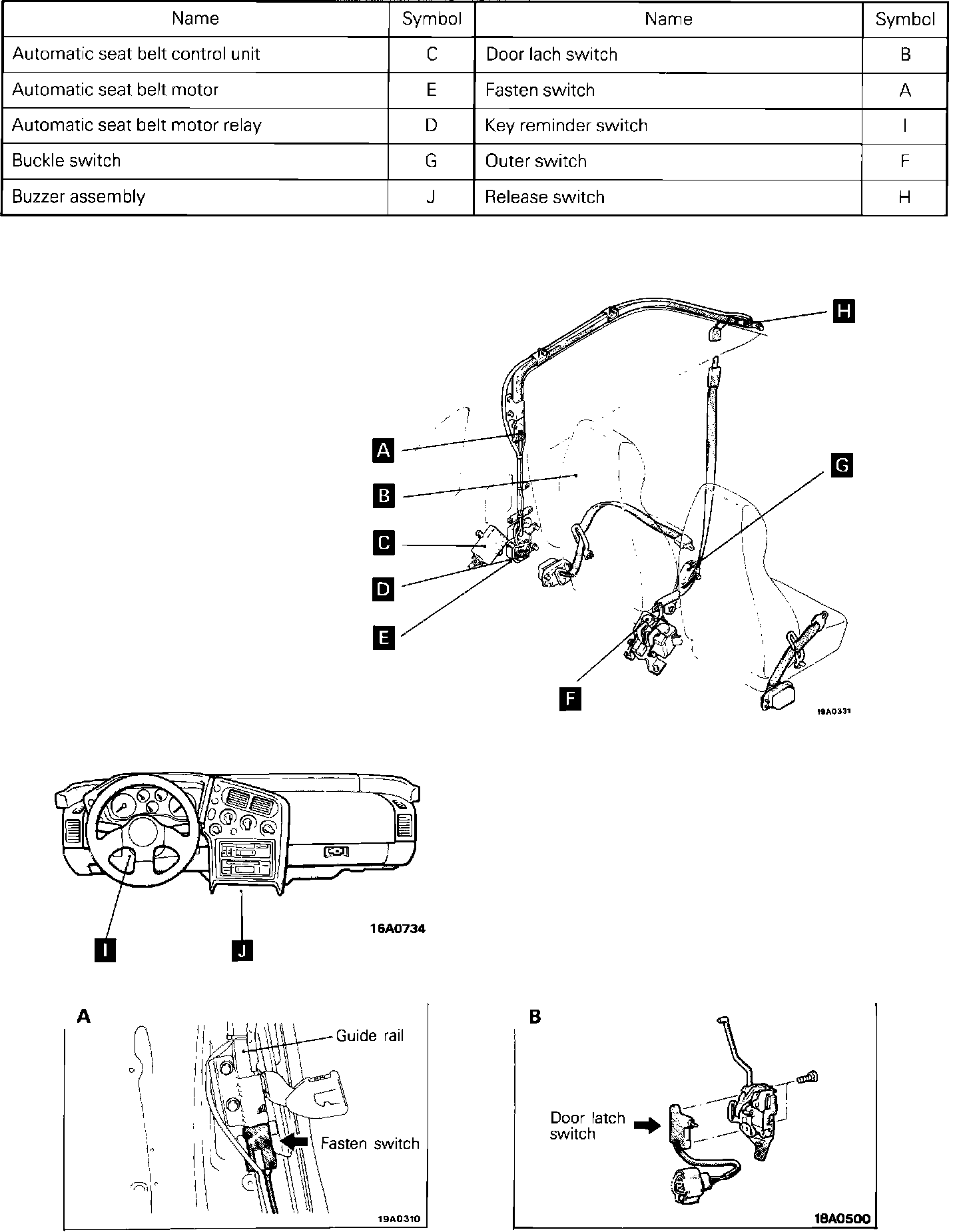

Automatic Seat Belt: Component Location:

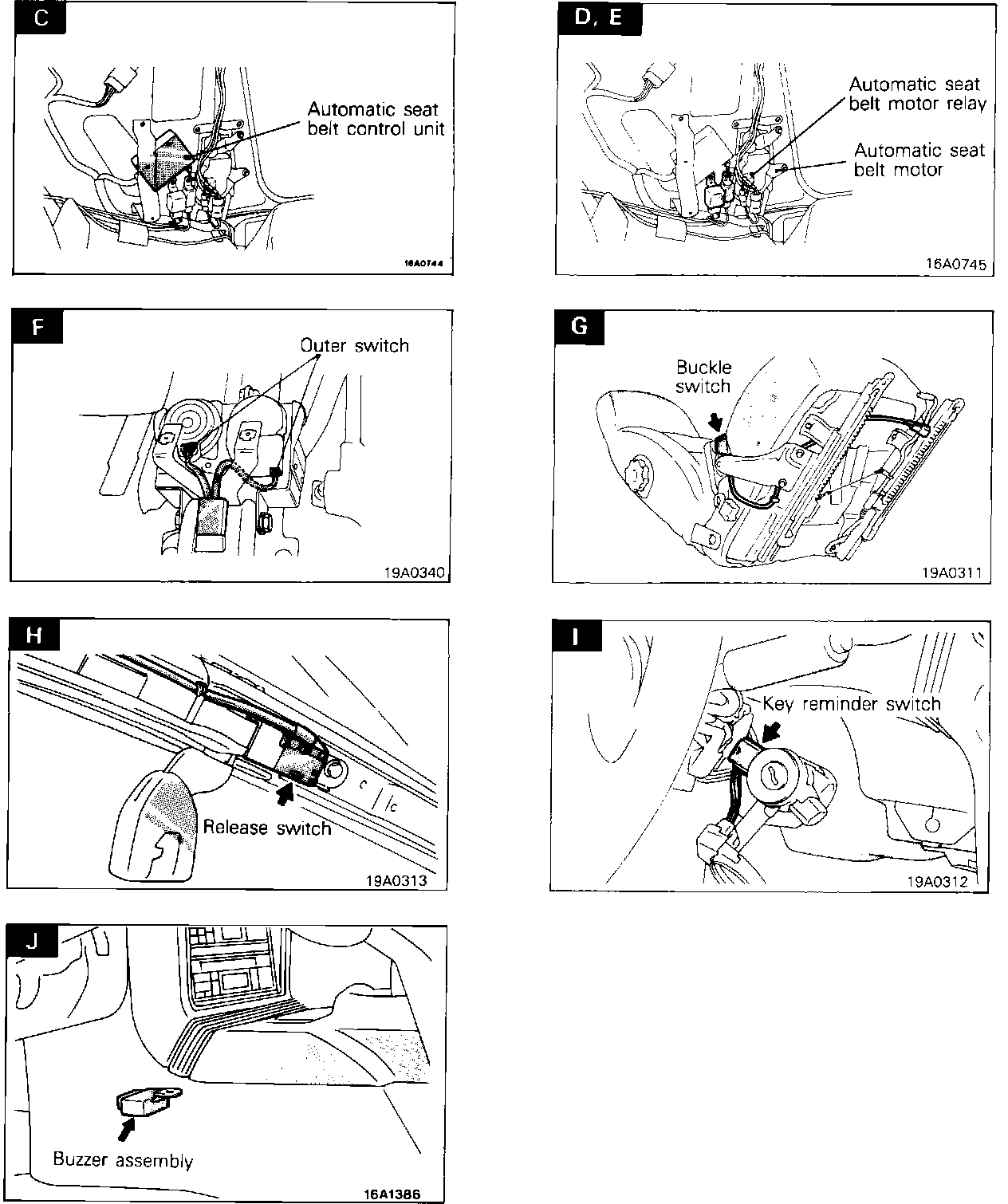

Automatic Seat Belt: Component Location:
