Centralized Relay (Engine Compartment)

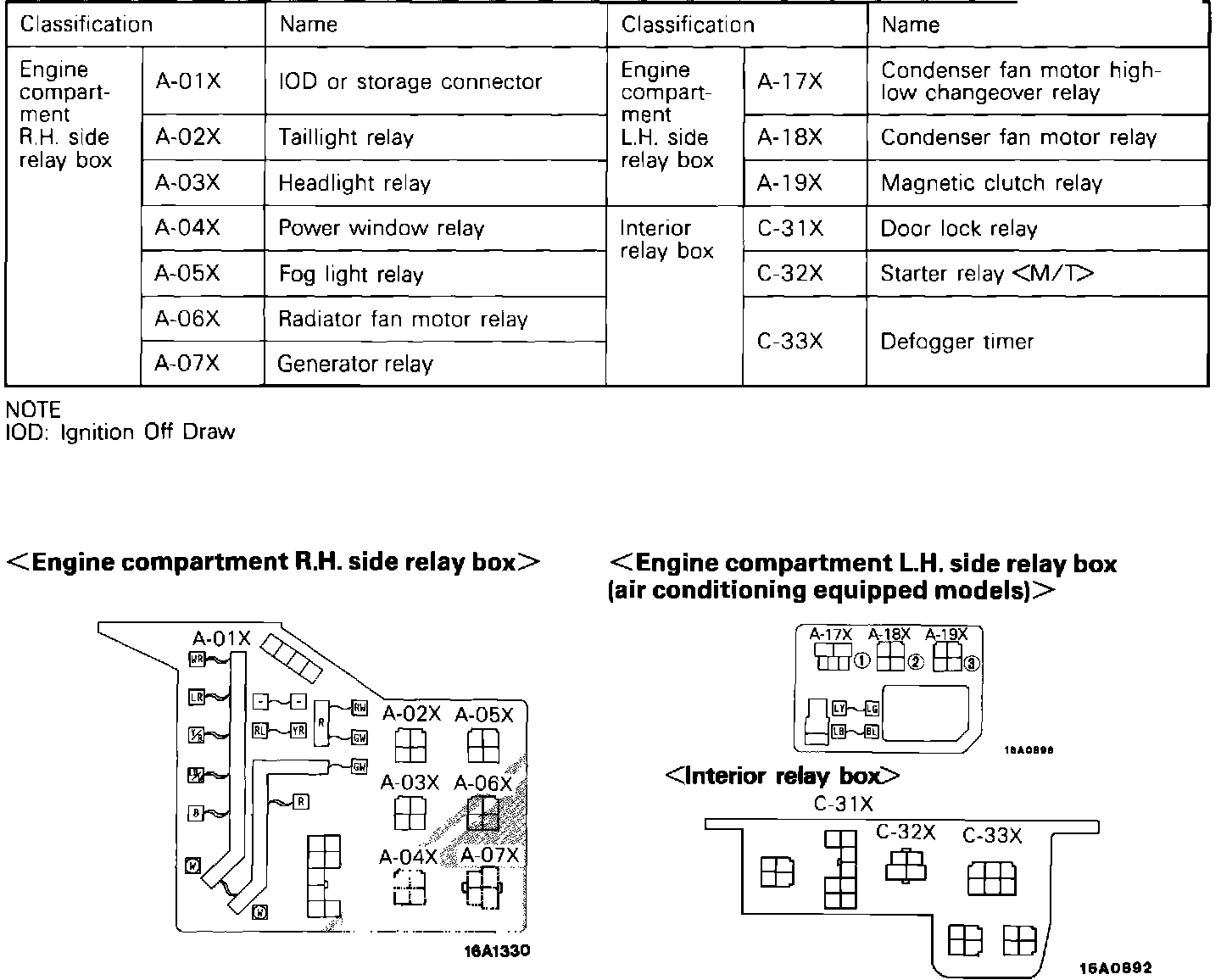

Centralized Junction: Centralized Relay:

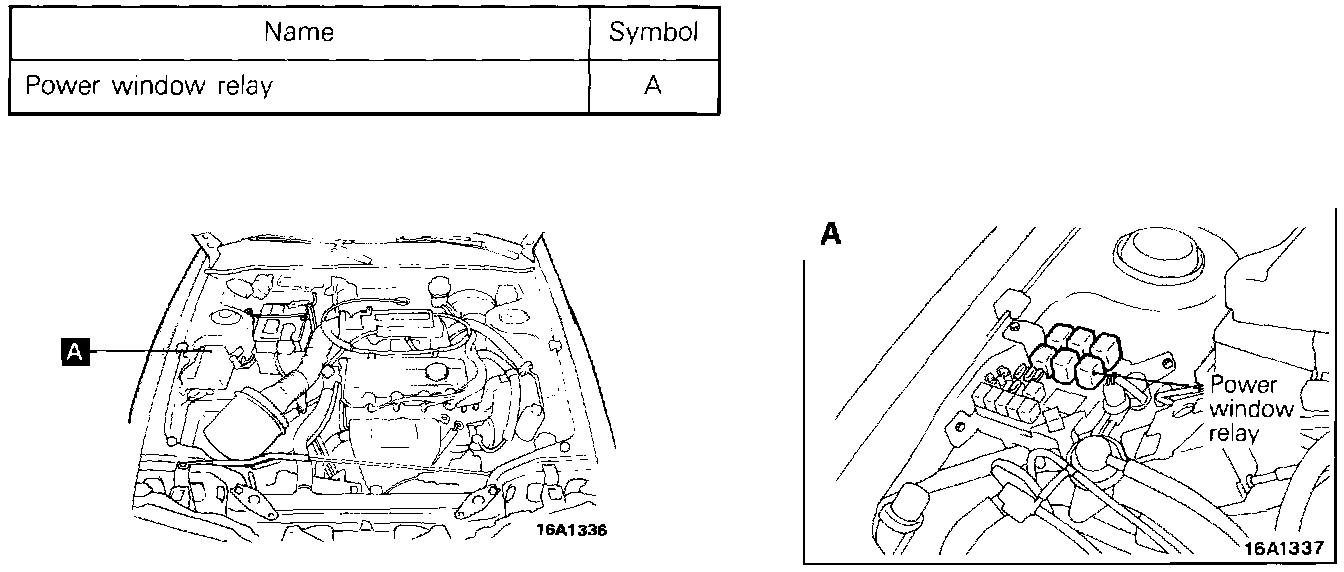

Power Windows: Component Location:
