Home >> Mitsubishi >> 1992 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Locations

Turn Signals: Locations

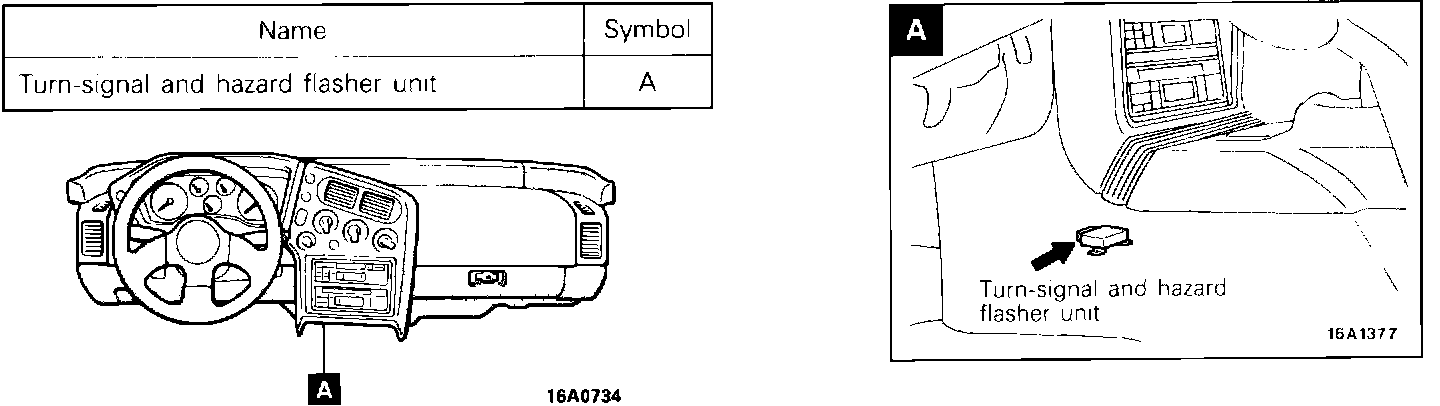

Turn-Signal, Hazard And Stop Lamps: Component Location:
