Electrical Diagrams

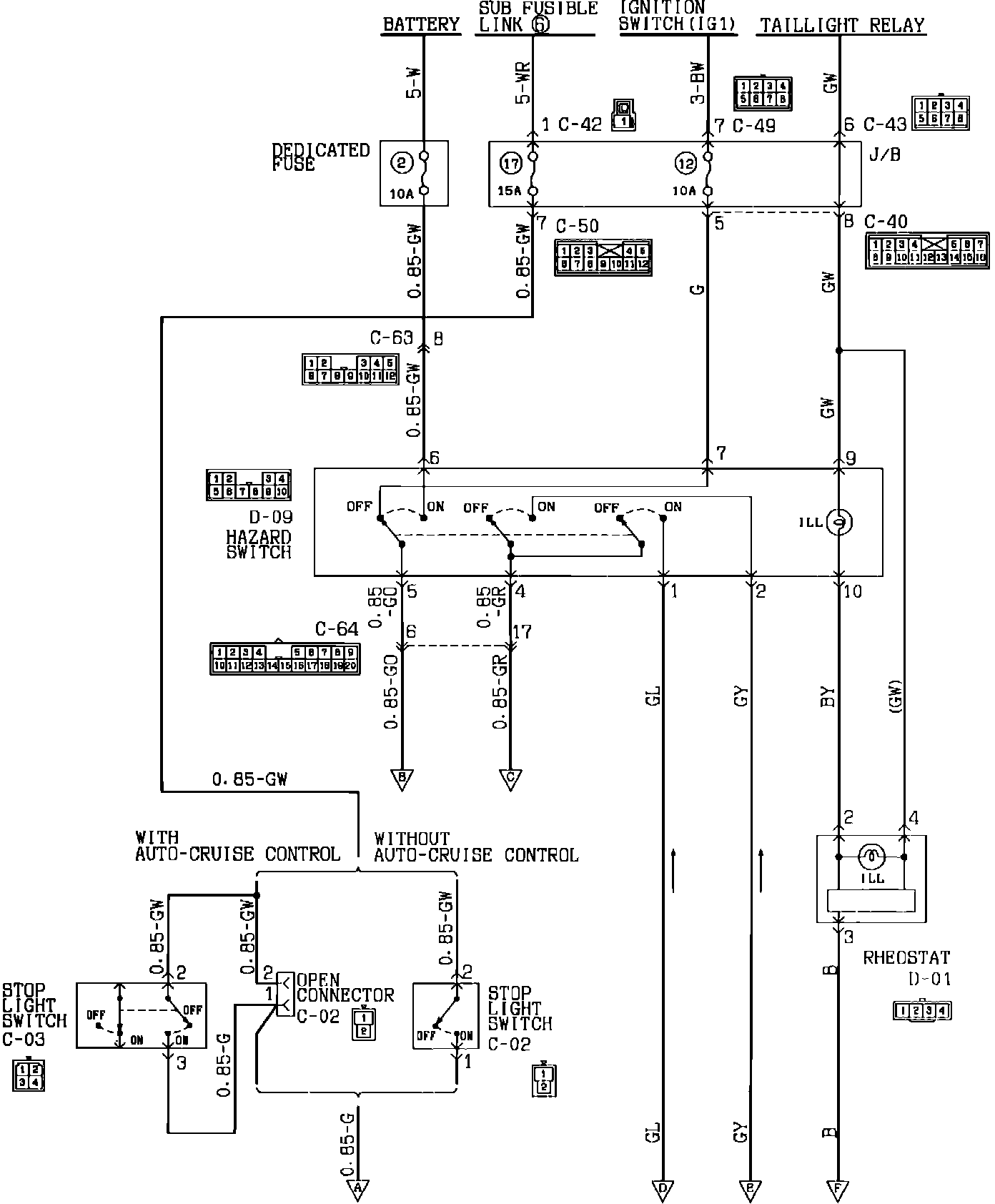

Turn-Signal, Hazard And Stop Lamps:

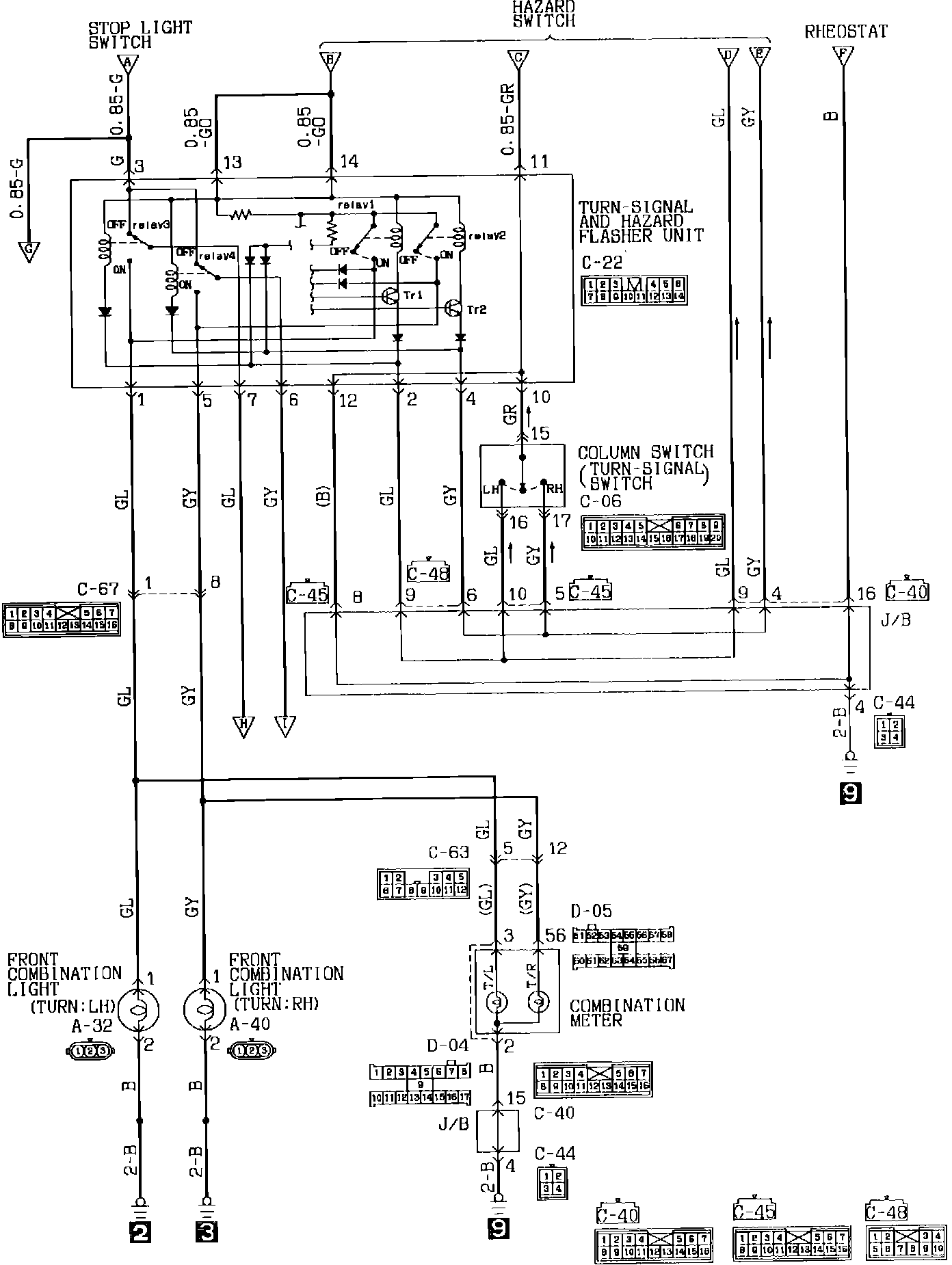

Turn-Signal, Hazard And Stop Lamps:



Turn-Signal, Hazard And Stop Lamps:
