Generator and Ignition System

GENERATOR AND IGNITION SYSTEM (DOHC)

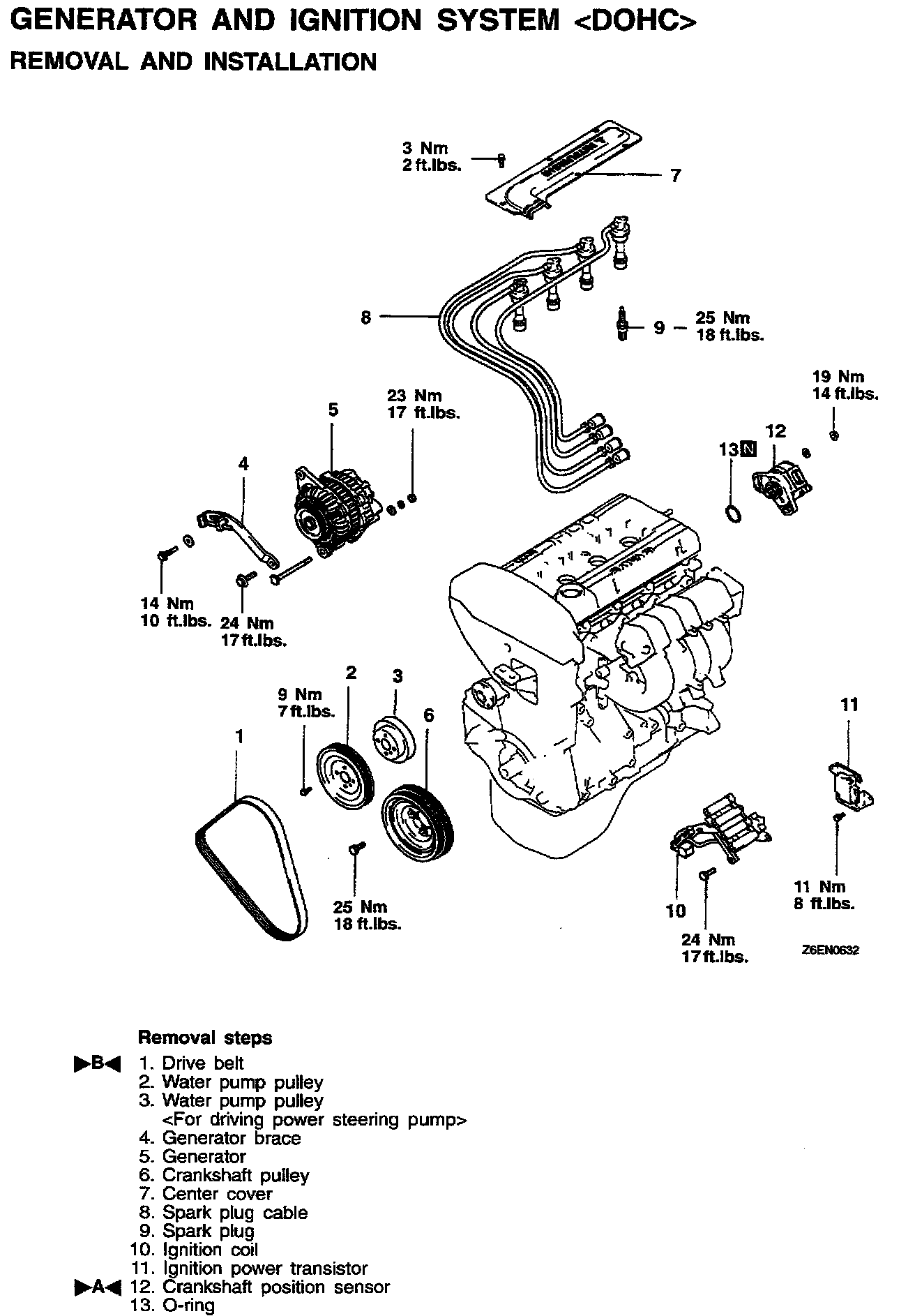

REMOVAL AND INSTALLATION

Removal Steps 1-13:

INSTALLATION SERVICE POINTS

A CRANKSHAFT POSITION INSTALLATION




1. Turn the crankshaft so that the No.1 cylinder is at top dead center.

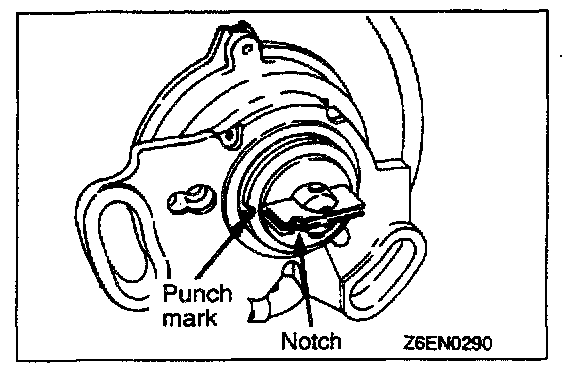

2. Align the punch mark on the crankshaft position sensor housing with the notch in the plate.
3. Install the crankshaft position sensor on the cylinder head.

B DRIVE BELT TENSION ADJUSTMENT

ADJUSTER TYPE

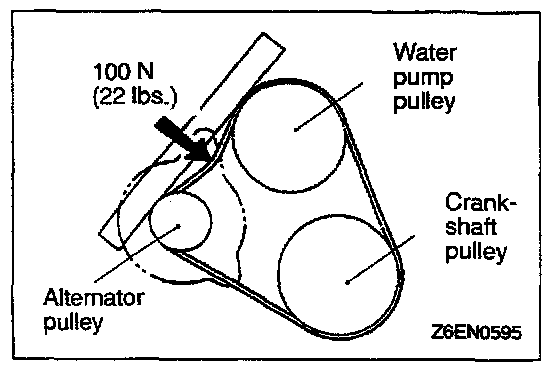

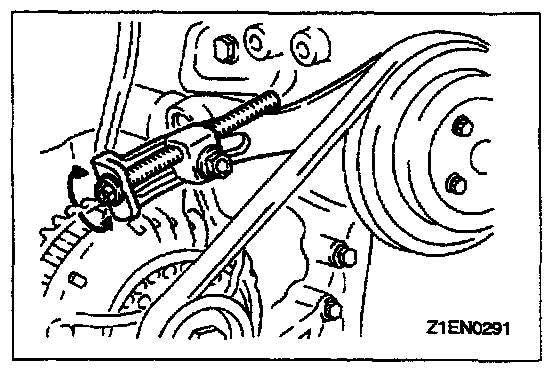

1. Adjust the belt deflection to the standard value. Turn the adjusting bolt clockwise to increase the belt tension and turn the adjusting bolt counterclockwise to decrease the belt tension.

Standard value:
V-ribbed type belt (Reference value)
New belt 7.5-9.0 mm (0.30-0.35 in.)
Used belt 10.0 mm (0.39 in.)

V-type belt 7.0-10.0 mm (0.28-0.39 in.)









When using a tension gauge for V-ribbed belt only.

Standard value:
New belt 500-700 N (110-154 lbs.)
Used belt 400 N (88 lbs.)

2. Tighten the lock bolt to the specified torque.
3. Tighten the nut for the pivot bolt to the specified torque
