Home >> Mitsubishi >> 1992 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control >> A/T

A/T

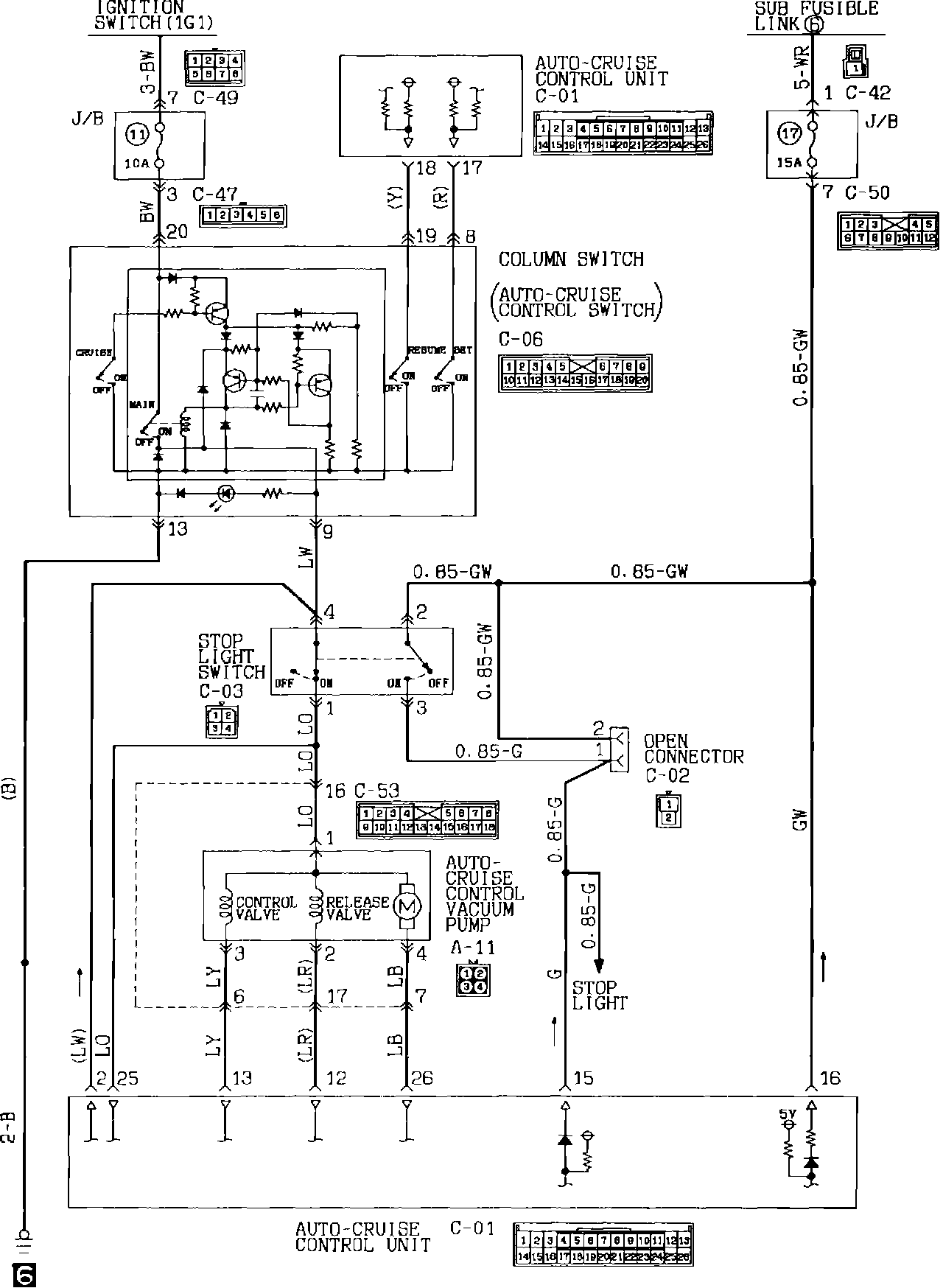

Cruise Control (A/T):

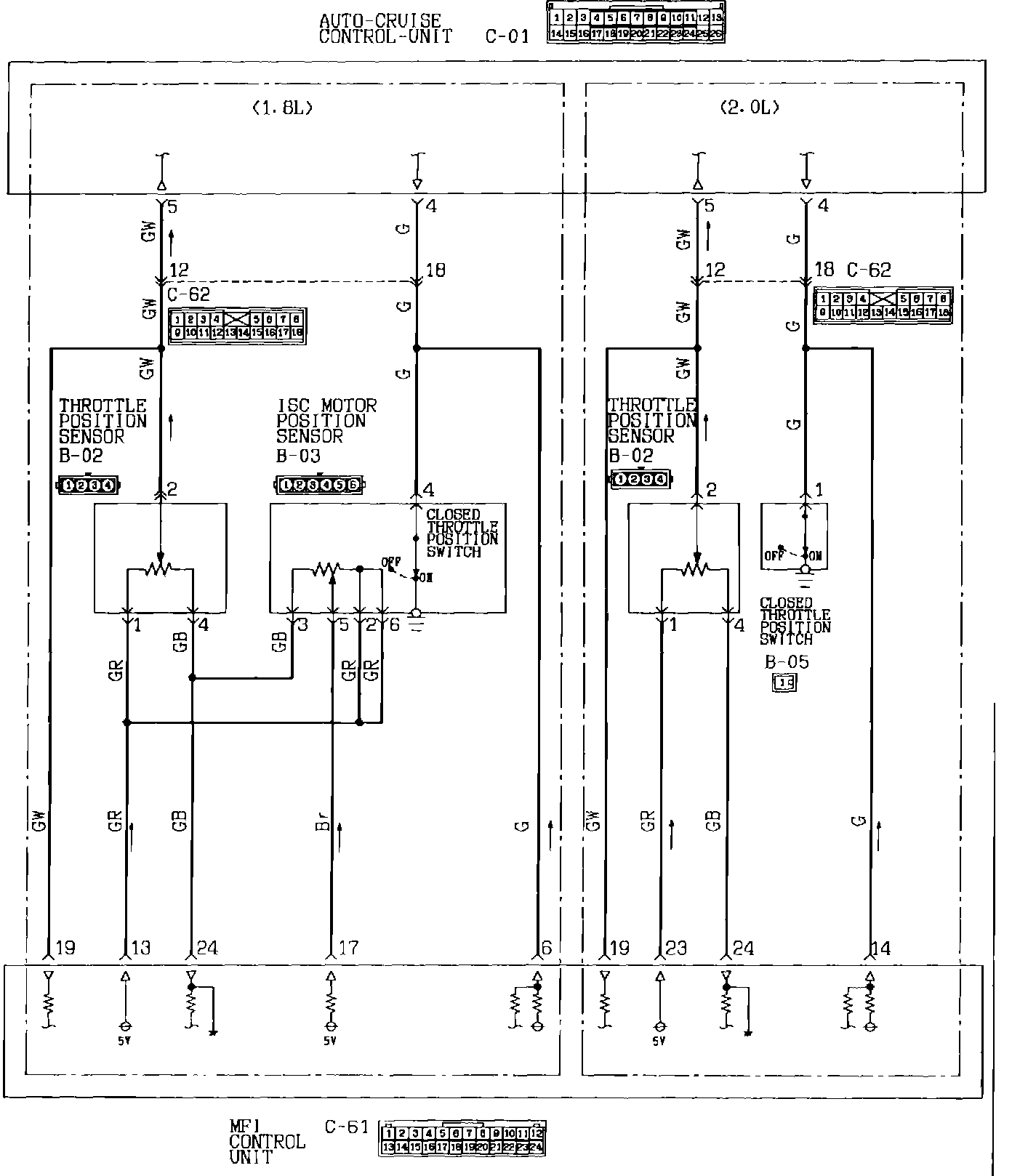

Cruise Control (A/T):

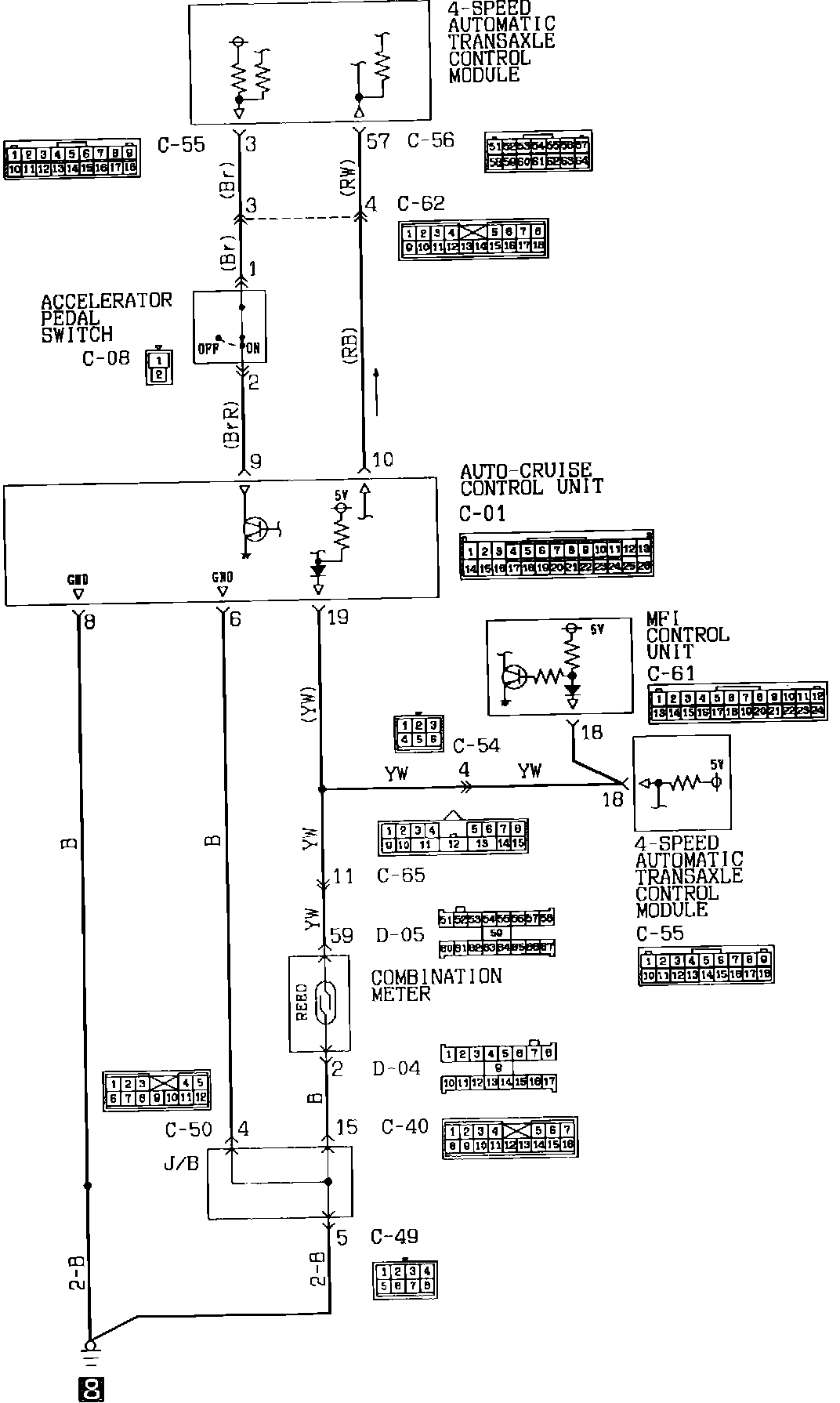

Cruise Control (A/T):

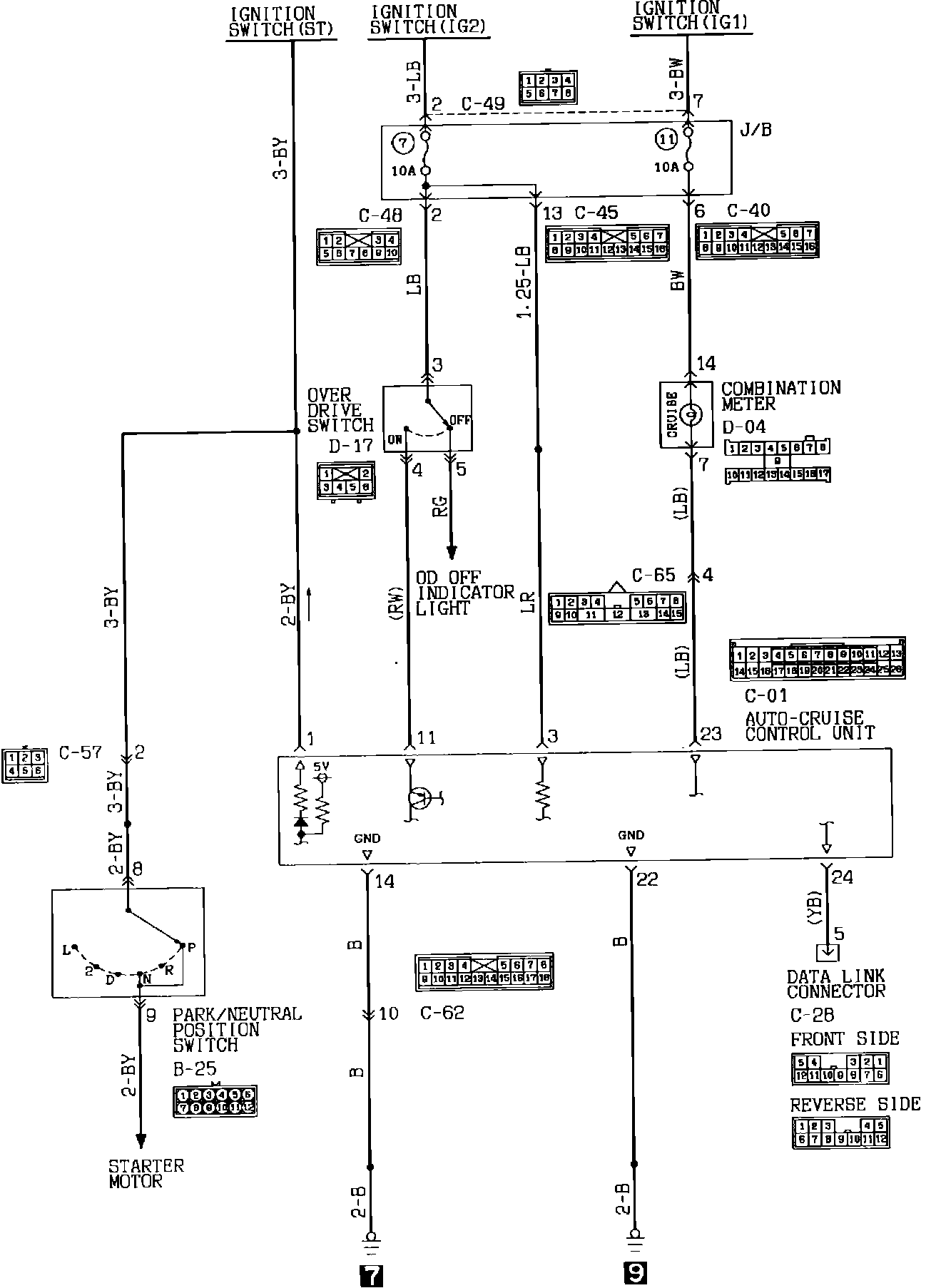

Cruise Control (A/T):
