C Connectors - Instrument Panel Harness

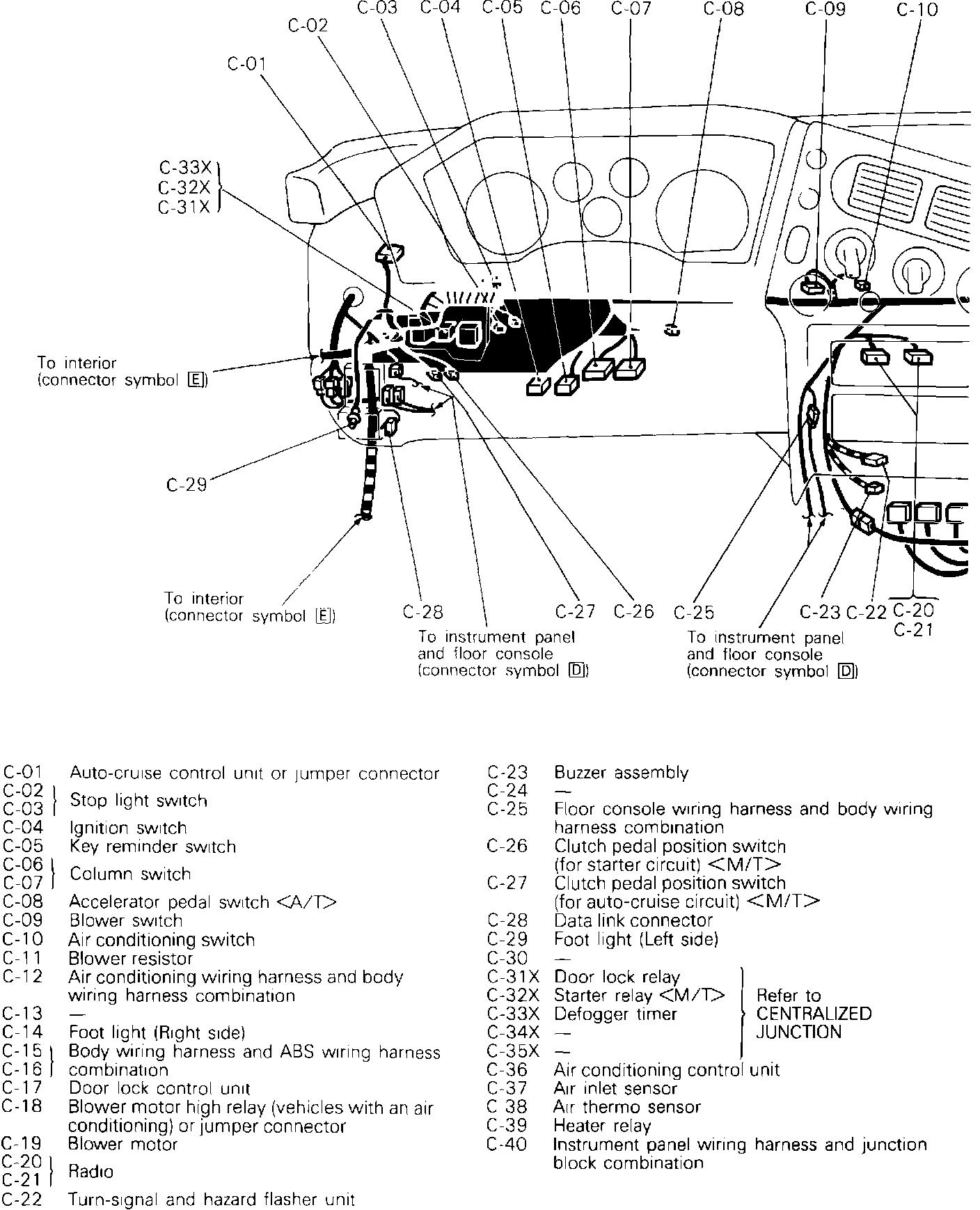

Connector Locations: Dash Panel (C-01 Thru C-50):

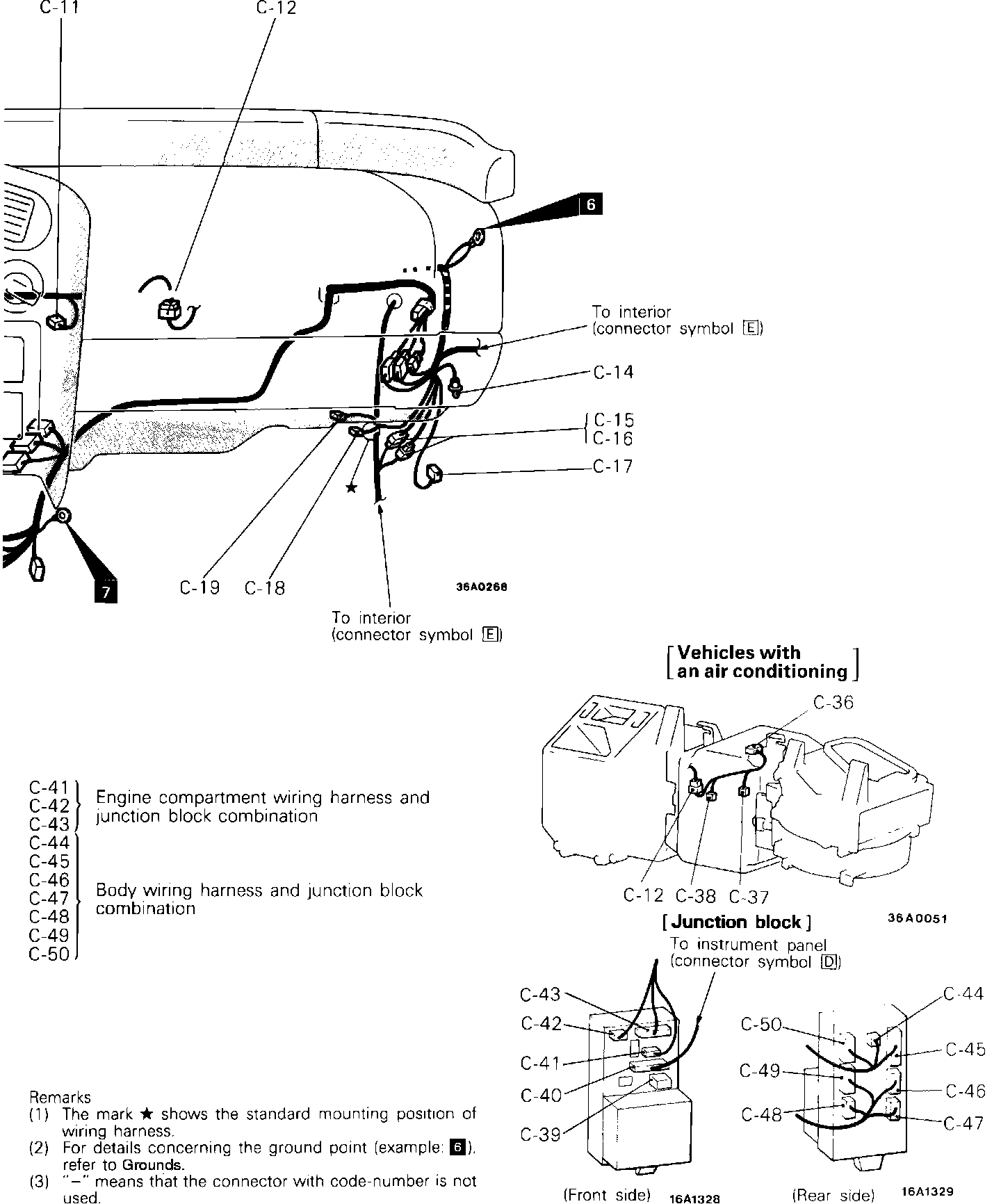

Connector Locations: Dash Panel (C-01 Thru C-50):

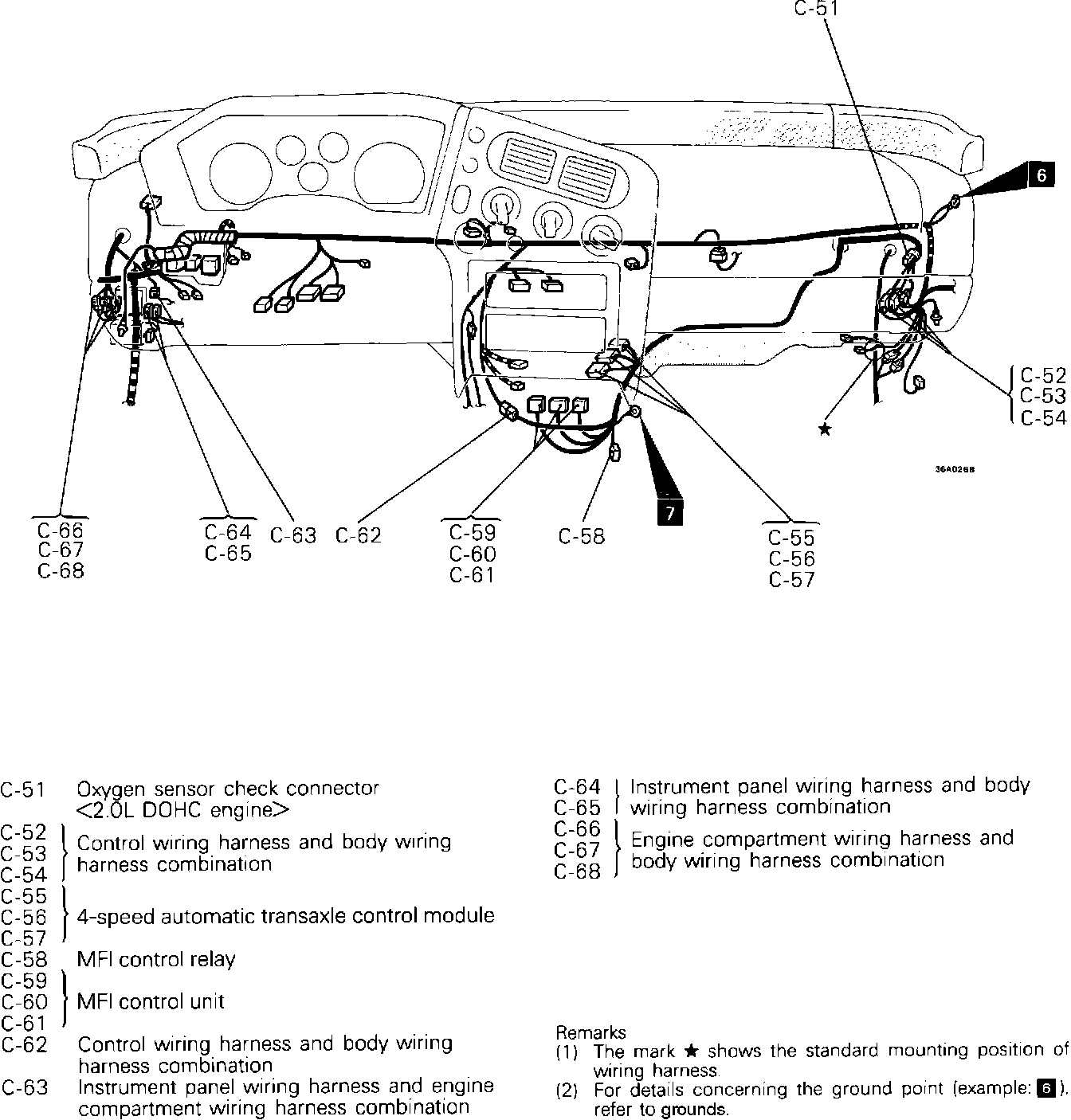

Connector Locations: Dash Panel (C-51 Thru C-68):
