Home >> Mitsubishi >> 1992 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Symptom Diagnostic Procedures (Charts) >> B-8 (Too Few Automatic Select Stations)

B-8 (Too Few Automatic Select Stations)

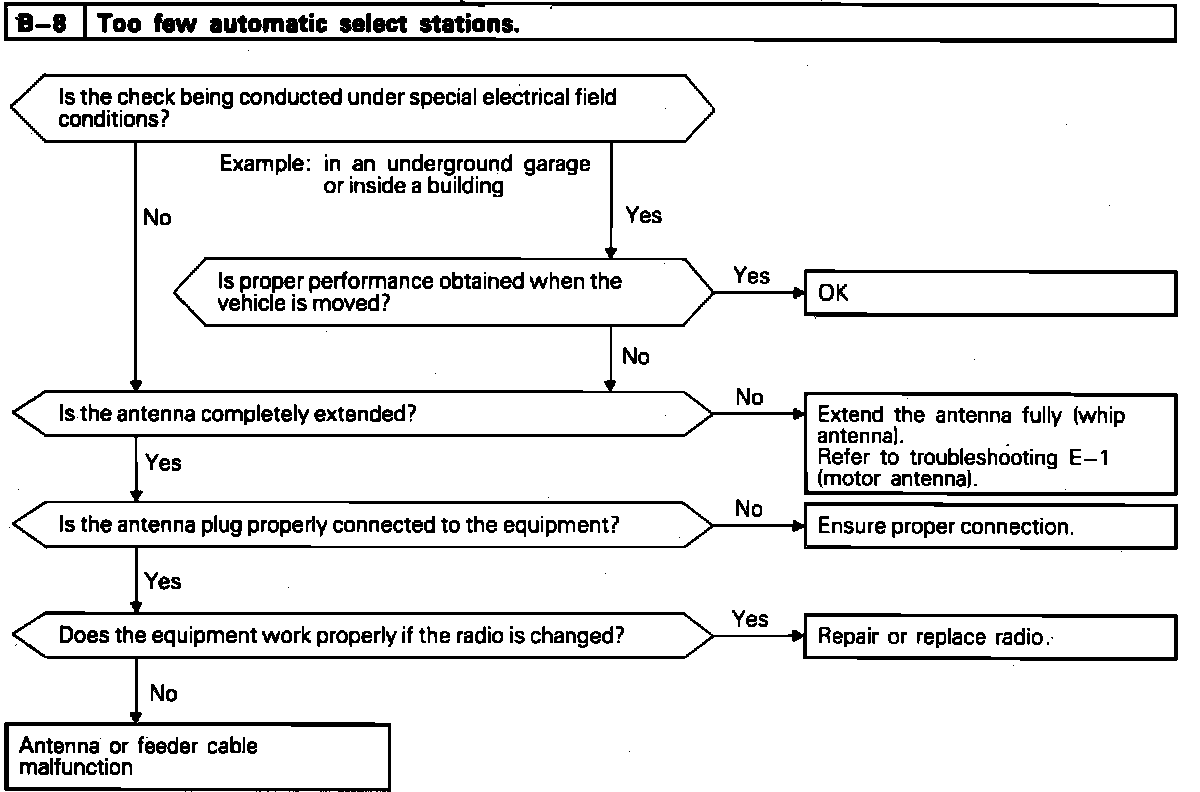

Chart: B-8:
