Home >> Mitsubishi >> 1992 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Locations >> Noise Suppressor

Noise Suppressor

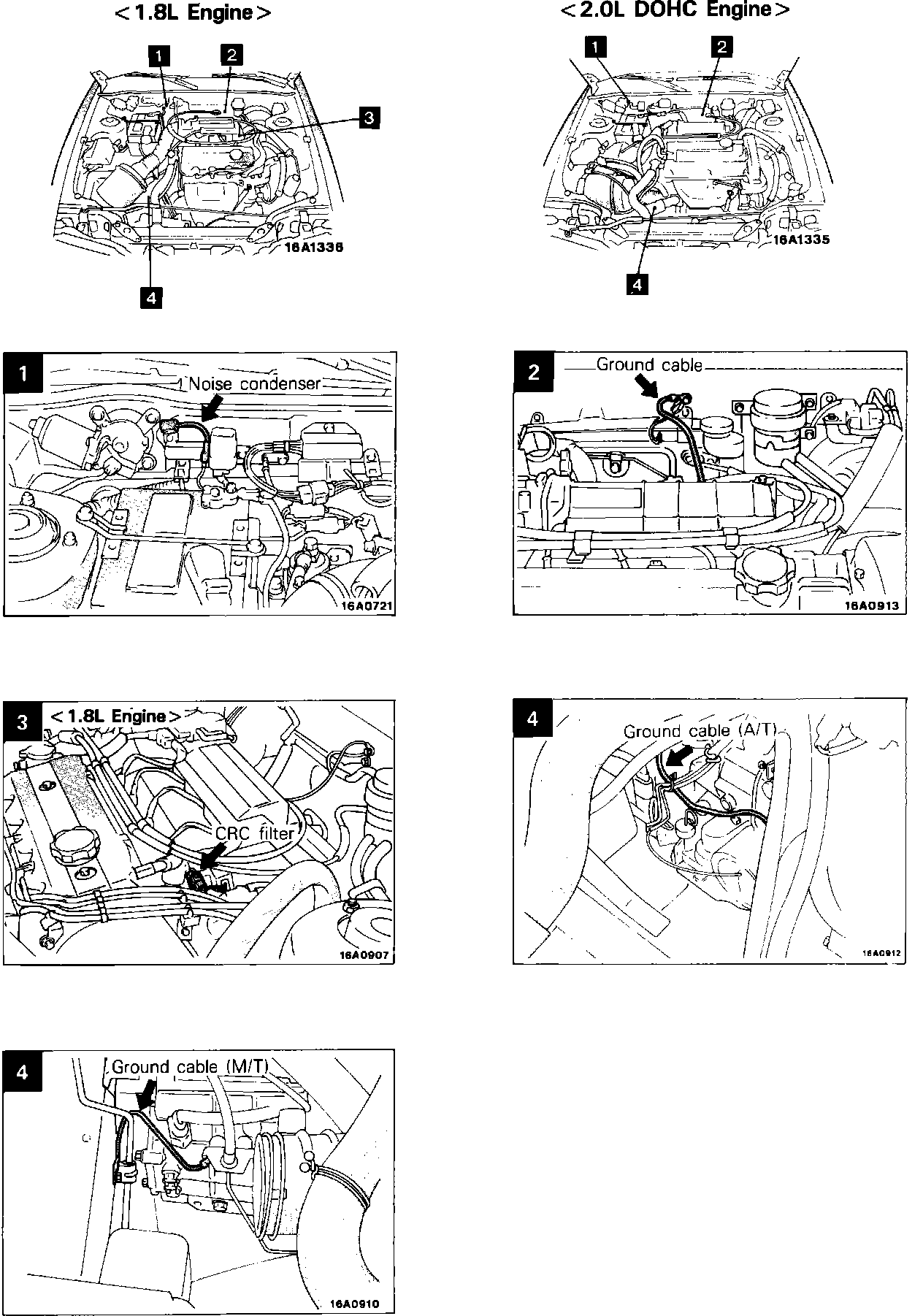

Noise Suppressor Location: Engine Compartment:

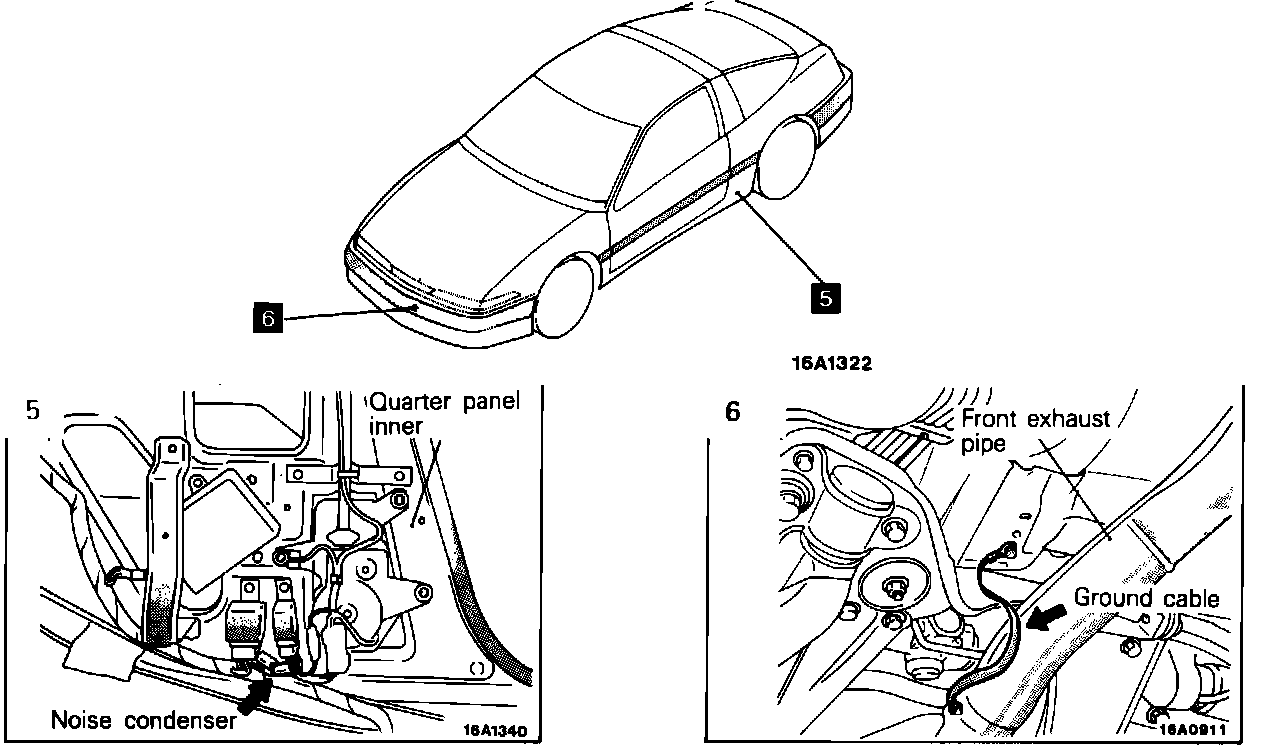

Noise Suppressor Location: Interior-Rear Section And Front Floor Lower Part:
