Transmission Oil Replacement







1. Position vehicle. on a flat level.

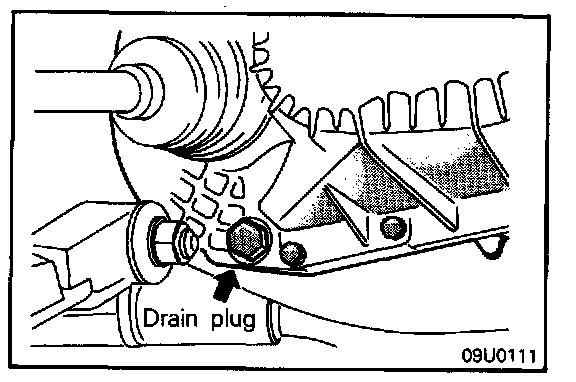

2. Remove filler and drain plugs and allow the transaxle oil to drain.

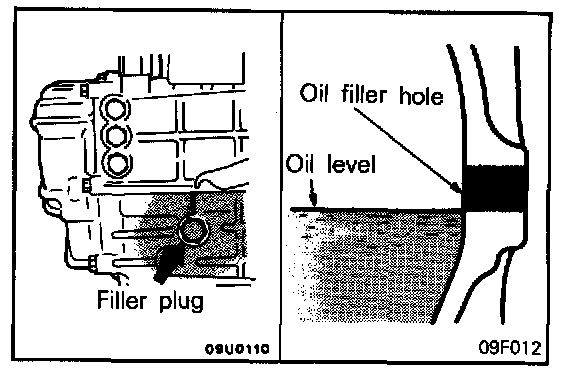

3. Refill the transaxle to the proper level with specified transaxle oil. The oil level should be the bottom of the oil filler hole.

Transaxle oil: Hypoid gear oil SAE 75W - 85W conforming to API classification GL-4 or higher
1.8 liters (1.9 qts.)
2.2 liters (2.3 qts.)
