Drive Shaft Oil Seals Replacement

1. Disconnect the drive shaft from the transaxle.

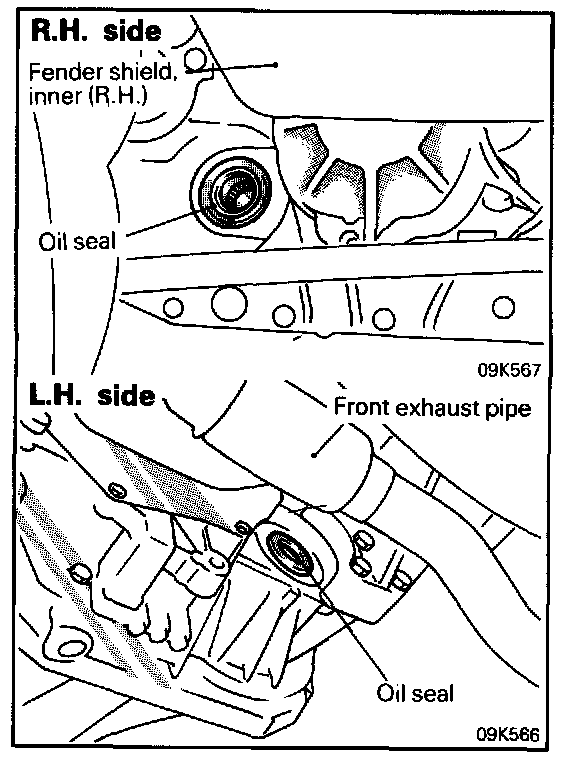

2. Using a flat-tip (-) screwdriver remove the oil seal.

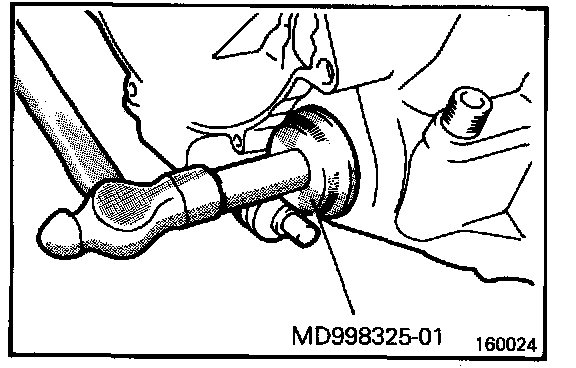

3. Using the special tool tap the drive shaft oil seal into the transaxle.
4. Apply a coating of the transaxle oil to the lip of the oil seal.

Transaxle oil: Hypoid gear oil, SAE 75W - 85W conforming to API GL-4 or higher
