Without Cruise Control

Accelerator Cable Adjustment:

1. Loosen the adjusting bolts.
2. Adjust the accelerator cable free play.

M/T:
0.04 - 0.08 in. (1 - 2 mm)
A/T:
0.12 - 0.20 in. (3 - 5 mm)

3. Tighten the adjusting bolts.
4. Confirm that the throttle valve fully opens and closes by operating the accelerator pedal.

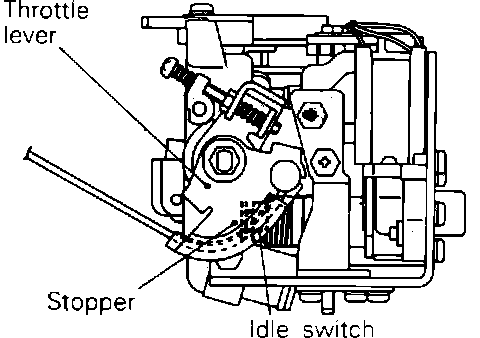

Accelerator Cable, Throttle Body End:

5. Confirm that the throttle lever stopper touches the idle position switch.
