System Operation

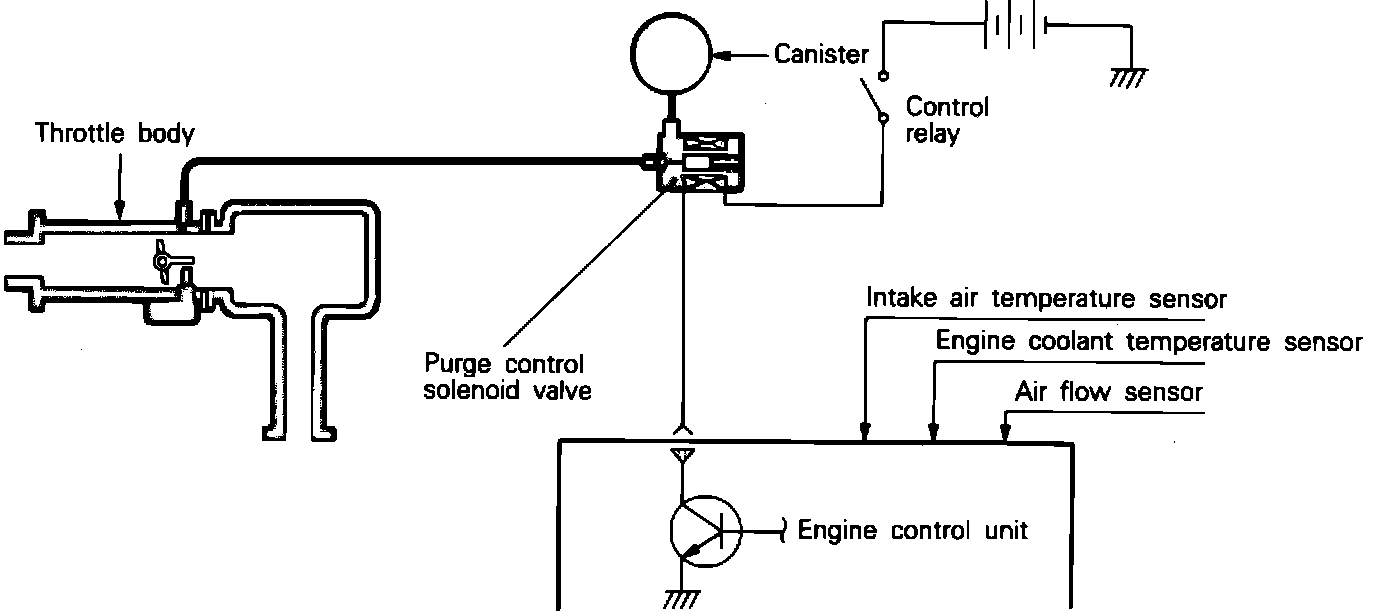

Purge Control System Diagram:

The vapors generated in the fuel tank while driving or when the engine is at a stop enters the charcoal canister where the charcoal absorbs and stores the fuel vapor.
When the ECU senses the correct conditions for operation, it supplies the ground circuit to the solenoid. This opens the solenoid, allowing manifold vacuum to be applied to the carbon canister, allowing fresh air is to be drawn into the bottom of the canister.
The vapors then pass through the solenoid valve into the intake manifold to be consumed in the combustion process.

The canister is purged (solenoid energized) under the following conditions:
CONDITION 1
Engine temperature above 158° F (70° C).
For the first three minutes after starting engine.
Engine rpm over 3000

CONDITION 2
Engine temperature above 158° F (70° C).
After three minutes of engine operation, the canister will be purged intermittently.
Engine rpm over 3000

CONDITION 3
Engine temperature above 158° F (70° C).
Altitude above 7,200 ft. (2,200 m).
Engine rpm over 3000

CONDITION 4
Engine temperature above 158° F (70° C).
Intake air temperature is above 122° F (50° C).
Engine rpm over 3000
