Exhaust Manifold and Water Pump

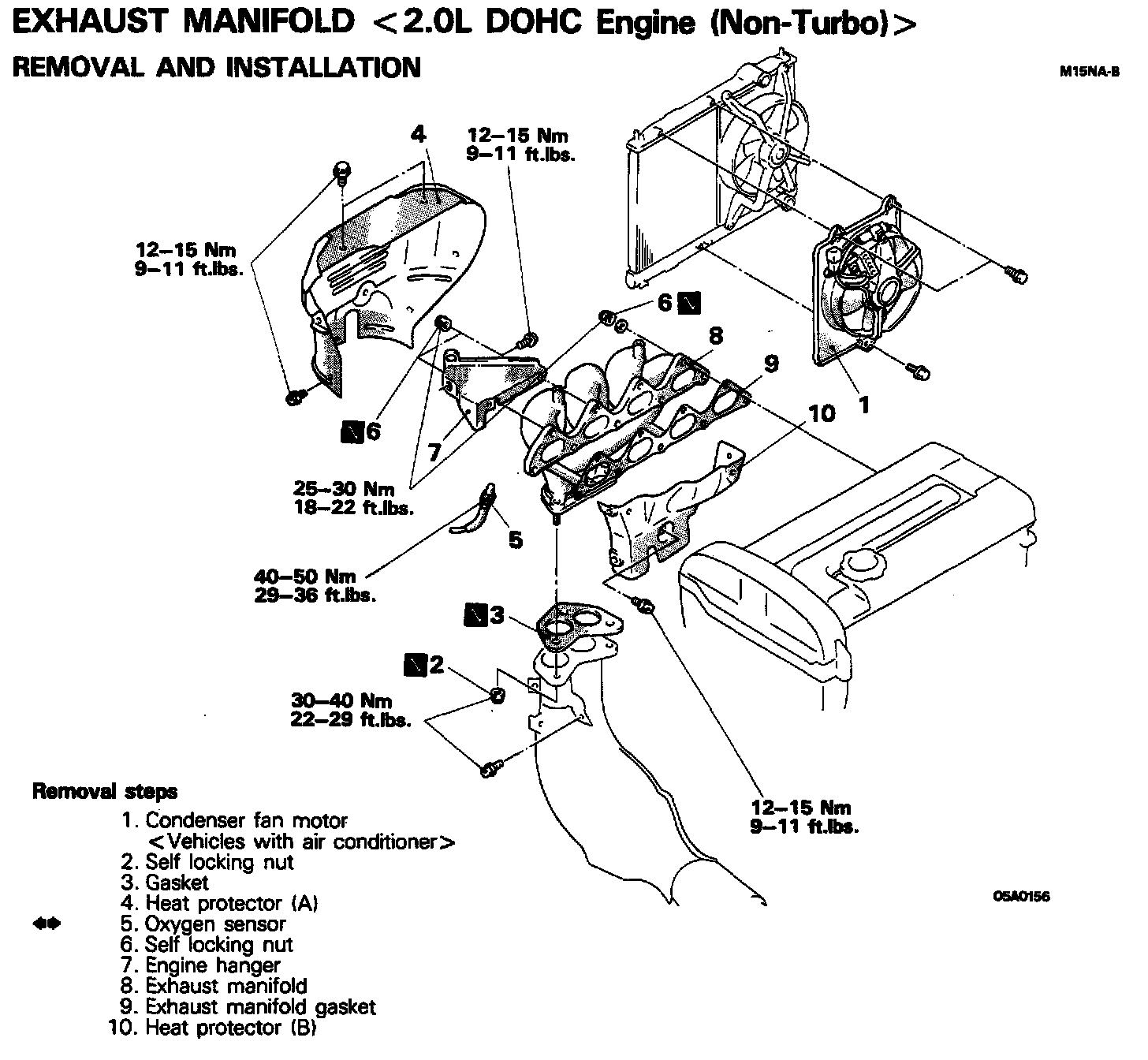

EXHAUST MANIFOLD - 2.0L DOHC Engine (Non-Turbo)

REMOVAL AND INSTALLATION

Removal Steps 1-10:

SERVICE POINTS OF REMOVAL




5. REMOVAL OF OXYGEN SENSOR
Disconnect the connector of the oxygen sensor, and install the special tool to the oxygen sensor.
Then, using an offset (box-end) wrench, remove the oxygen sensor.

INSPECTION
Check the following points; replace the part if a problem is found.

EXHAUST MANIFOLD
Check for damage or cracking of any part.

EXHAUST MANIFOLD GASKET
Check for flaking or damage of the gasket.
