Eclipse L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Transmission and Drivetrain
>>
Manual Transmission/Transaxle
>>
System Specifications
>>
M/T Torque Data
>>
F5M33 5-SPD M/T
F5M33 5-SPD M/T

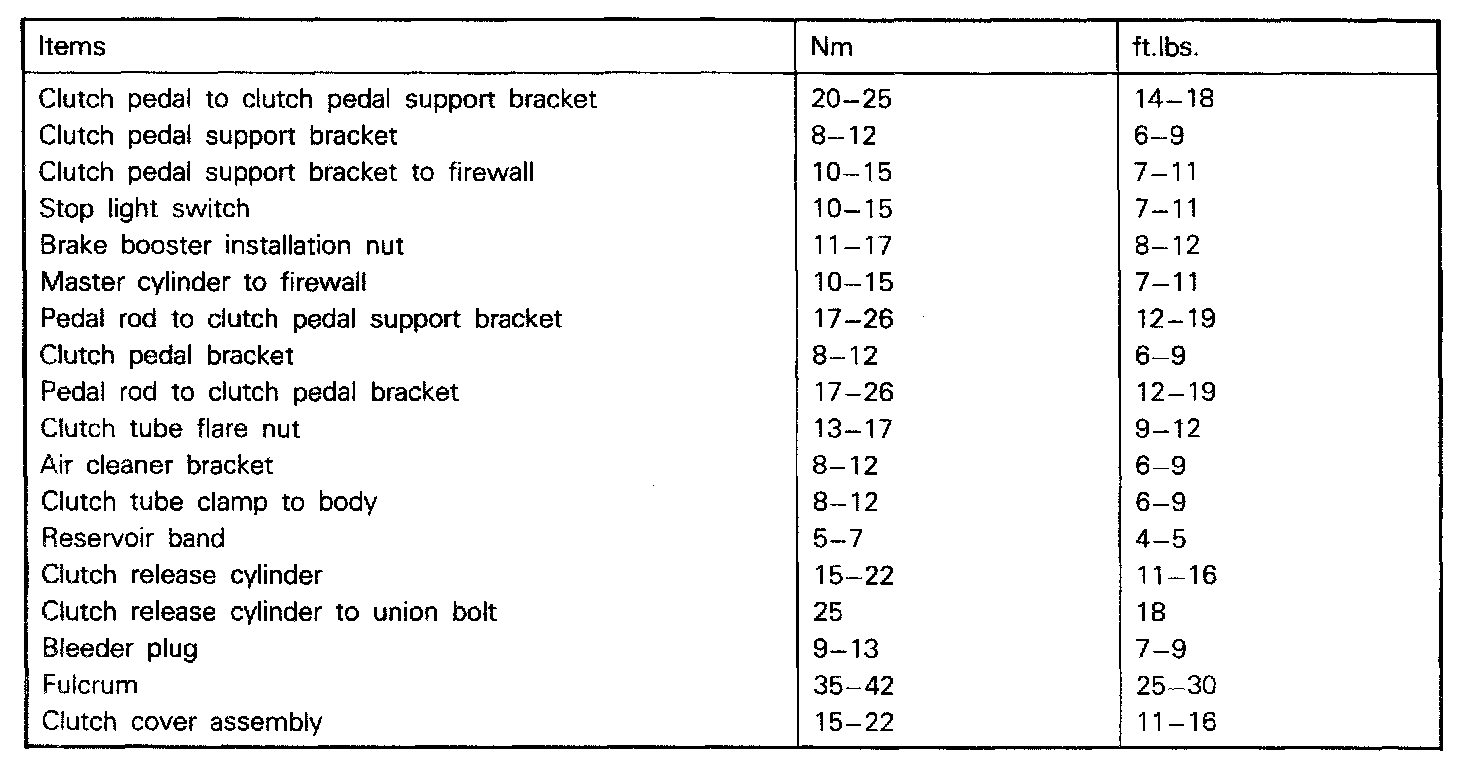

F5M22/F5M33 5-spd M/T, Clutch Torque:

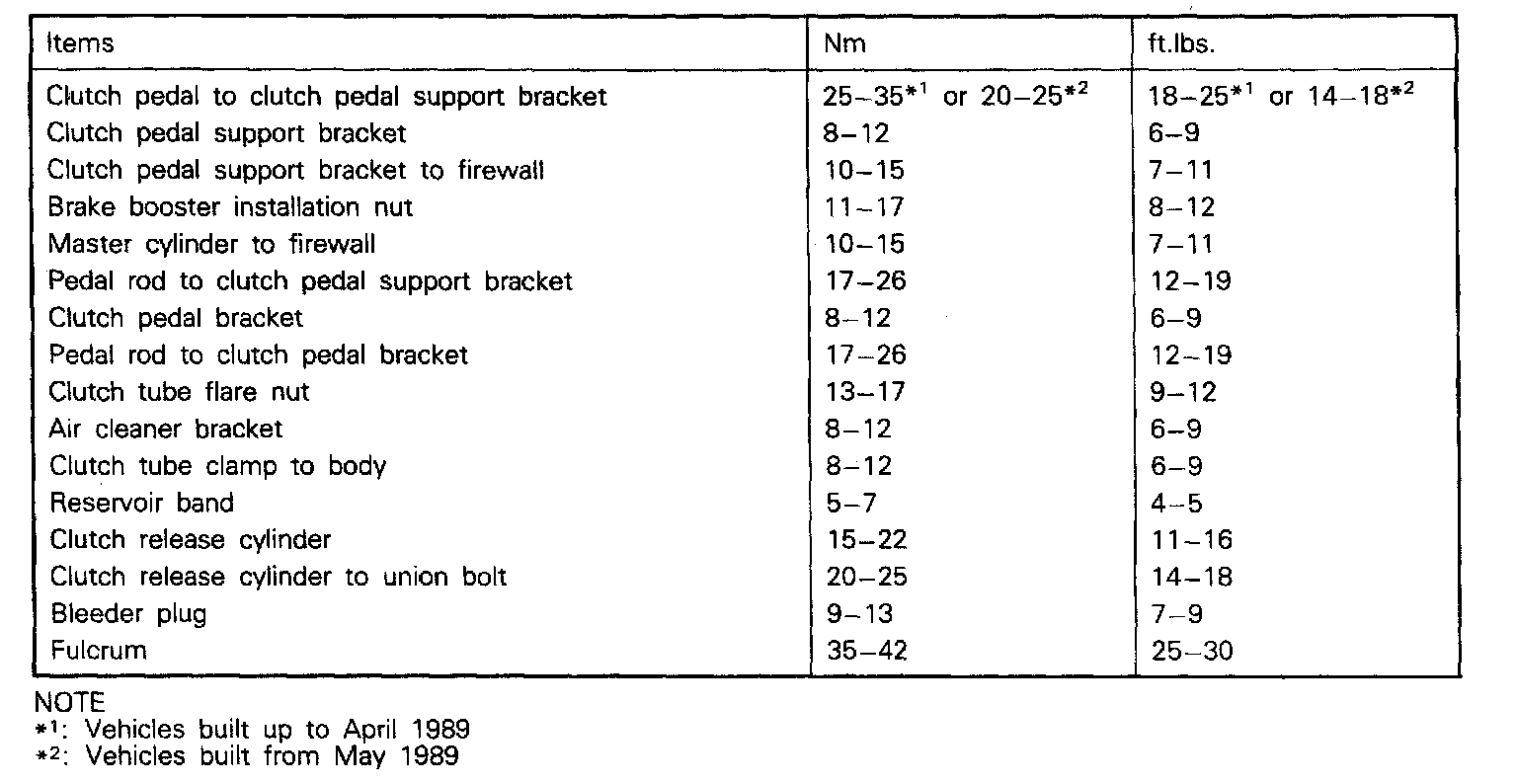

F5M22/F5M33 M/T, Clutch Torque ('92-'94):

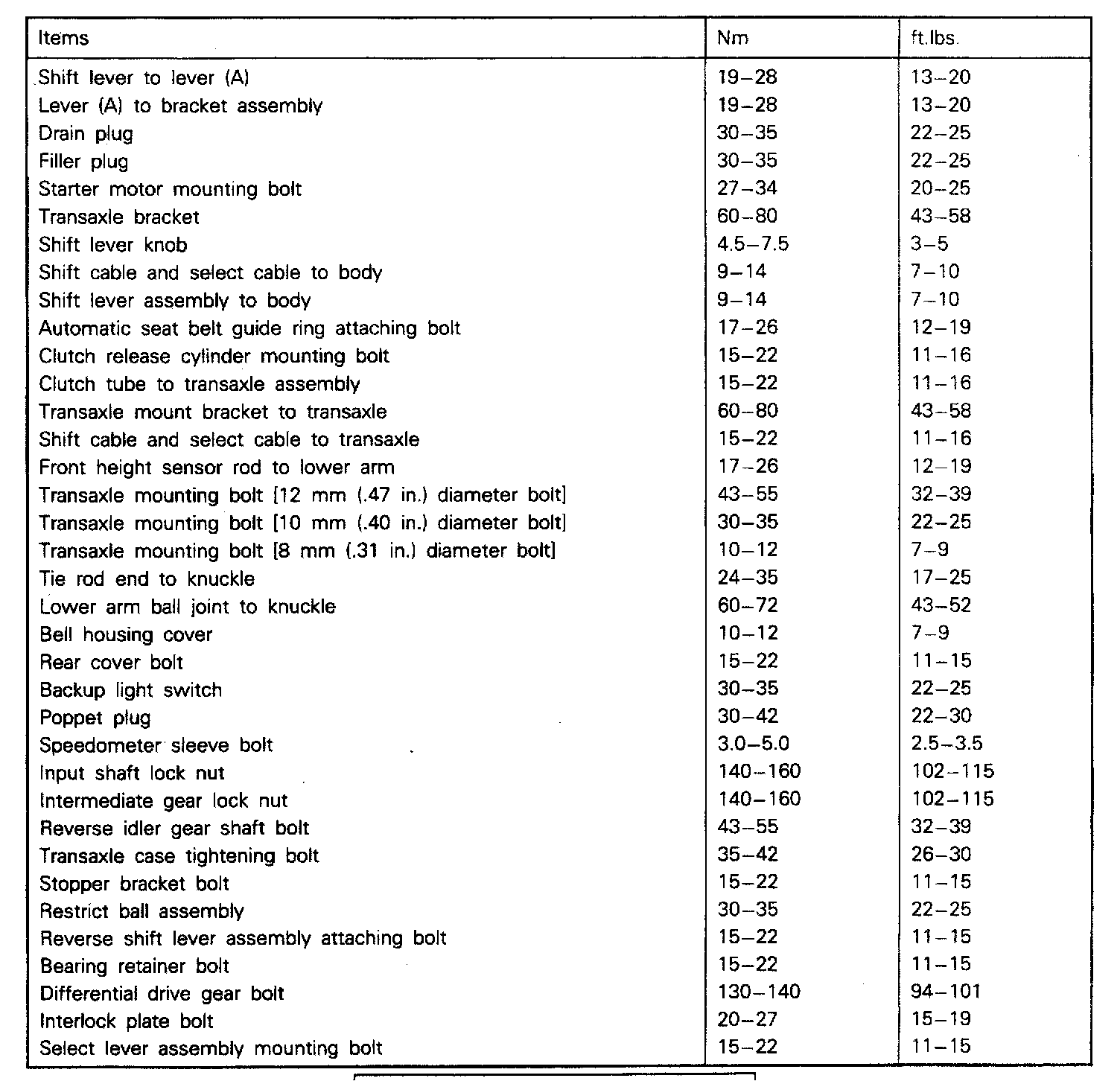

F5M22/F5M33 5-spd M/T, Transaxle Torque:
