Rear Wipers

WIPER MOTOR

Wiper Operation Check

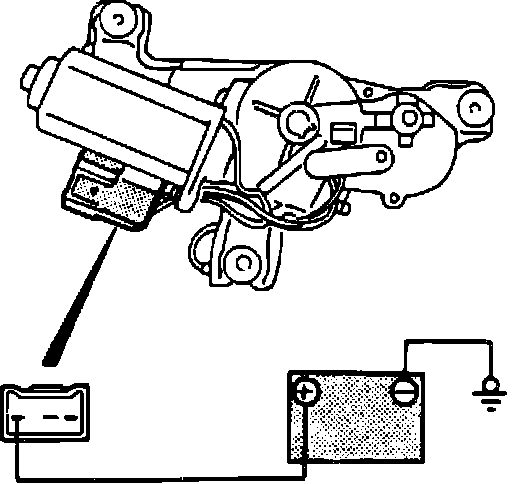

Fig. 54 Wiper Operation Check:

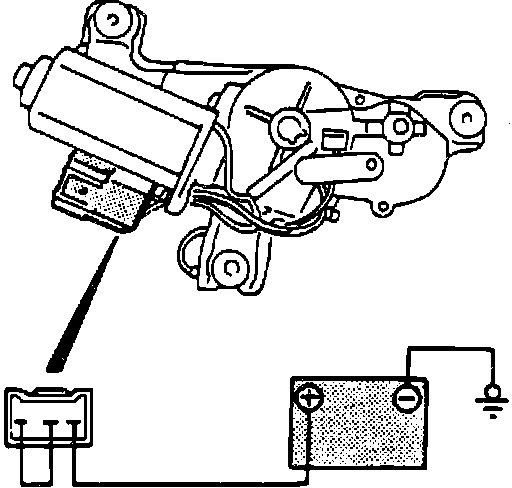

Fig. 55 Wiper Operation Stop Check:

1. Connect battery as shown in Fig. 54, ensure proper low speed operation.
2. Connect jumper and battery as shown in Fig. 55, ensure motor start turning, then stops in the automatic stop position.

REAR WIPER & WASHER SWITCH

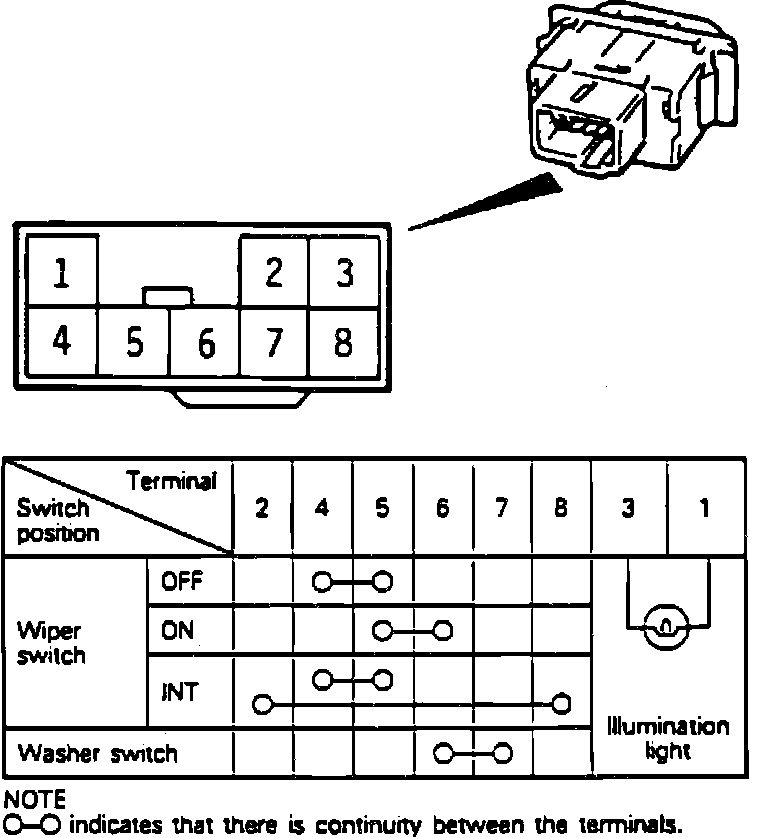

Fig. 56 Rear Wiper & Washer Connector Identification:

Disconnect switch, then ensure continuity between terminals as shown in Fig. 56.
