Front Wipers

WIPER MOTOR

Wiper Operation Check

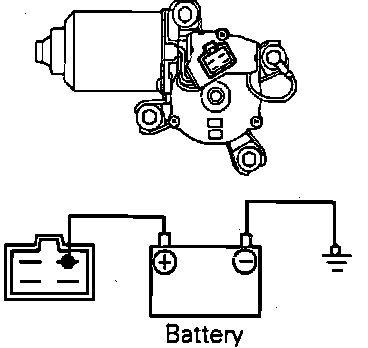

Fig. 39 Low Speed Wiper Motor Operation:

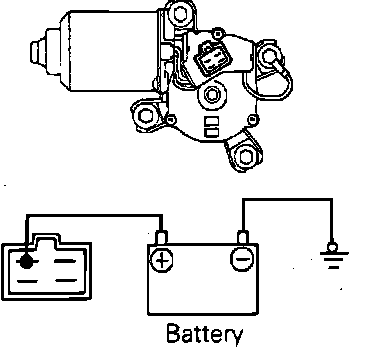

Fig. 40 High Speed Wiper Motor Operation:

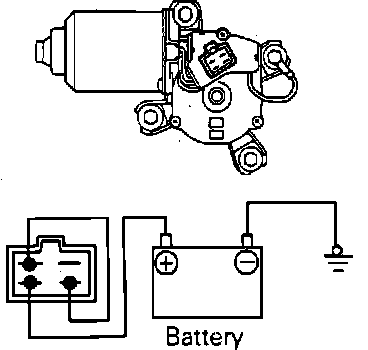

Fig. 41 Wiper Motor Stop Position:

1. Connect battery to wiper motor as shown in Fig. 39. Ensure motor works at low speed.
2. Connect battery to wiper motor as shown in Fig. 40. Ensure motor works at high speed.
3. Operate wiper at low speed, disconnect lead from battery.
4. Connect battery as shown in Fig. 41. Ensure motor starts on low speed, then stops at automatic stop position.

WIPER SWITCH & WASHER SWITCH

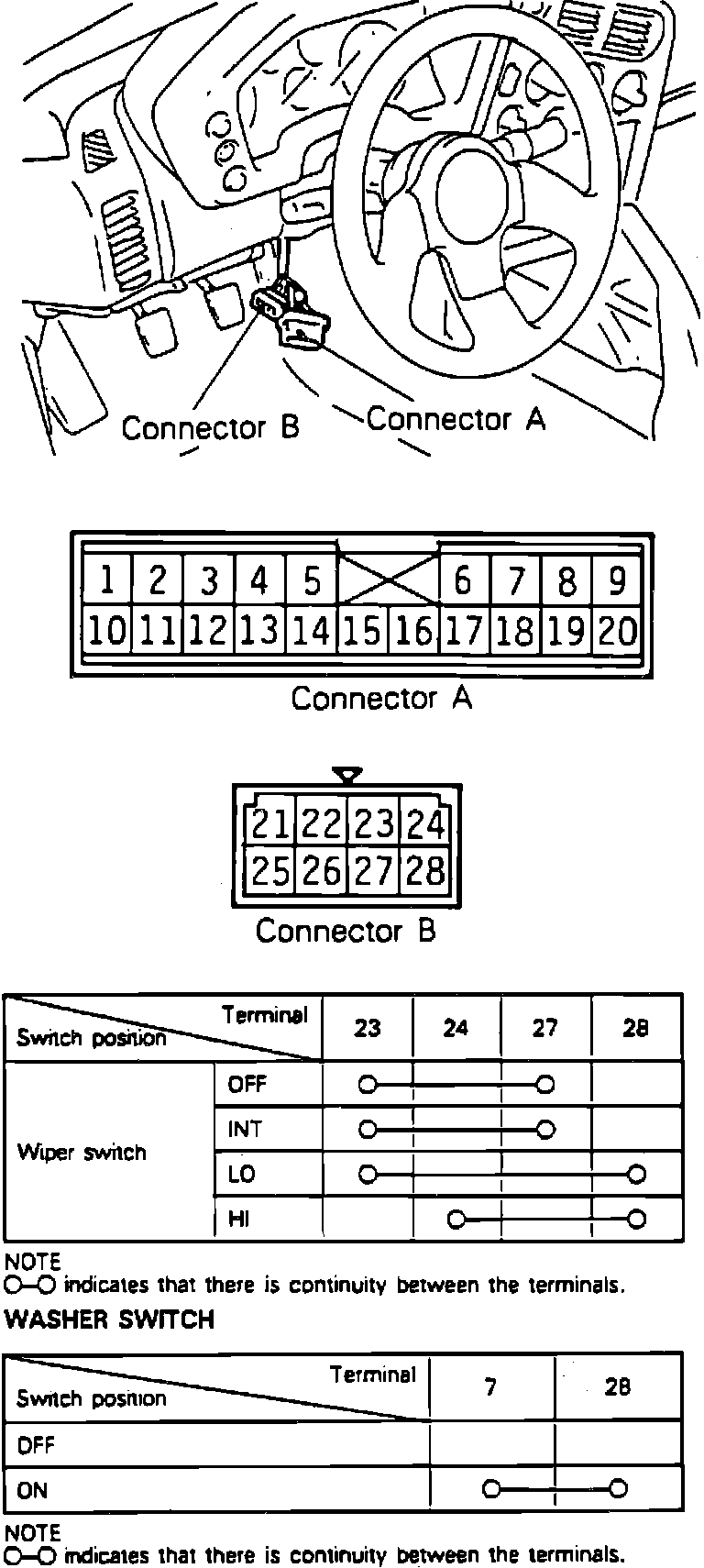

Fig. 53 Front Wiper & Washer Switch Connector Identification:

1. Remove column cover and knee protector.
2. Disconnect column switch, operate switch and ensure continuity between terminals as shown in Fig. 53.
