Drivetrain - Tripod Joint (TJ) On Driveshaft

90mitsubishi13
SUBJECT: SPIDER ASSEMBLY TO FRONT AXLE

DRIVESHAFT INSTALLATION:

SERVICE MANUAL SUPPLEMENT

NO. TSB-90-26-001

DATE December, 1990

MODEL Eclipse, Galant and Mirage

TSB Revision TSB 90-26-001

PURPOSE

This bulletin illustrates the direction in which the Tripod Joint (TJ) spider assembly is installed on the driveshaft of 1990-91 Eclipse, 1989-91 Galant and 1985-91 Mirage vehicles.

Please write the TSB revision number in the TSB Revision Box located at the bottom of each appropriate page.

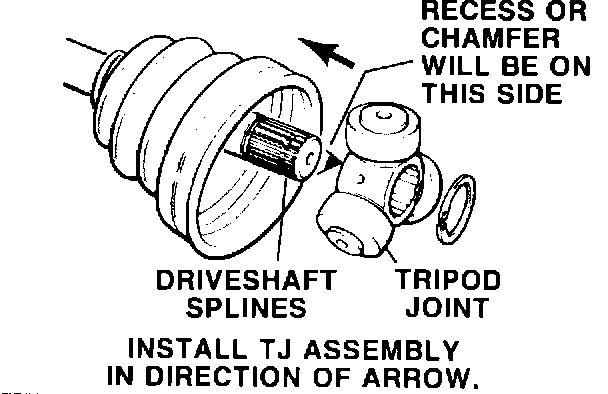

Figure 1.:

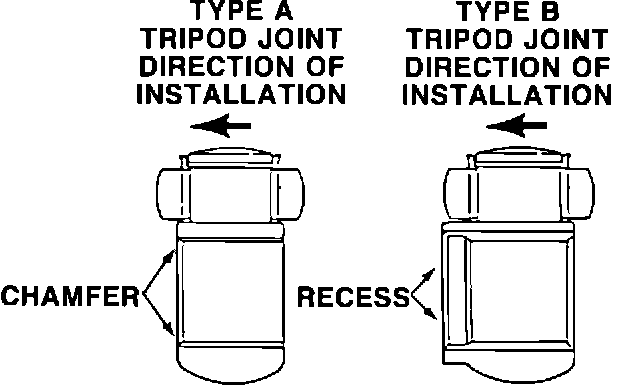

Figure 2.:

DESCRIPTION

Two different TJ assemblies may be encountered when servicing the front driveshaft of affected vehicles. One has a chamfered edge (Type A), the other has a recessed edge (Type B).

When installing either type, make sure the chamfered or recessed edge is facing the splines of the driveshaft.

AFFECTED SERVICE MANUALS

1990 and 1991 Eclipse, Volume 1, Pages 26-17 and 26-23.
1989-1990-1991 Galant, Volume 1, Pages 26-16, 26-20, and 26-26.
1985 Mirage, Page 2-21. 1986 Mirage, Page 2-17.
1987 Mirage, Volume 1, Pages 2-14 and 2-16.
1988 Mirage, Volume 1, Pages 2-15 and 2-17.
1989 Mirage, Volume 1, Pages 2-22 and 2-30.
1990 and 1991 Mirage, Volume 1, Pages 26-15 and 26-23.
