M/T - Reverse Brake Cone Mounting Screw Torque

91mitsubishi04

NO. TSB-91-22-006

DATE February, 1991

MODEL 1991 Eclipse, Galant, Mirage


SUBJECT: REVERSE BRAKE CONE

MOUNTING SCREW - SERVICE MANUAL SUPPLEMENT



TSB Revision TSB-91-22-006

PURPOSE

Some 1991 5-speed manual transmissions used in Eclipse, Galant, and Mirage vehicles incorporate a reverse brake cone mounting screw with a hexagon socket head ("Allen head") instead of a cross headed ("Phillips head") screw. If during servicing you encounter a hexagon socket head ("Allen head"), torque the reverse brake cone mounting screw to 6-7.5 N-m (4.4-5.5 ft.lbs.)

Please make the indicated service manual updates and as reference to this TSB please write this TSB number in the TSB revision boxes at the bottom of the affected Service Manual pages.

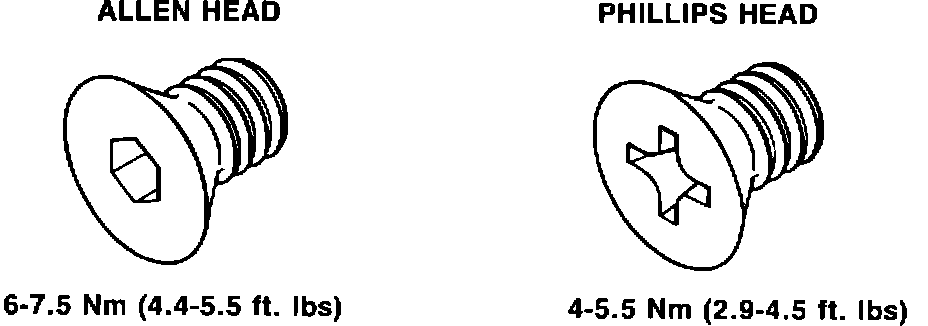

REVERSE BRAKE CONE TORQUE

Hexagon socket head ("Allen head") - 6-7.5 N-m (4.4-5.5 ft.lbs.)

Cross headed ("Phillips head") - 4-5.5 N-m (2.9-4.5 ft.lbs.)


TRANSMISSIONS AFFECTED


MODEL TRANSMISSION TYPE

ECLIPSE F5M22, F5M33

GALANT W5M31, W5M33

MIRAGE F5M22


AFFECTED SERVICE MANUALS

1991 Eclipse page 22-23, 22-34
1989 - 1991 Galant, volume 3, pages 22-13, 22-26
1991 Mirage page 22-8, 22-32

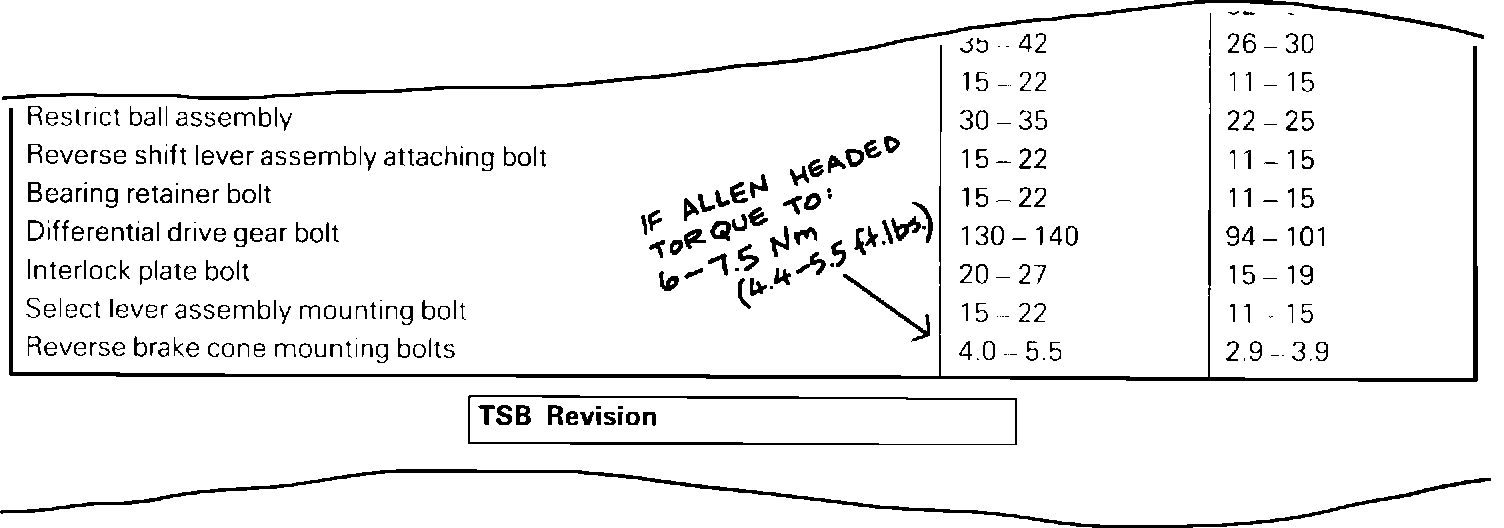

SERVICE MANUAL UPDATE

1989-1991 Galant, volume 3, page 22-13
1991 Mirage page 22-8
Please write "IF ALLEN HEADED, TORQUE TO: 6-7.5 N-m (4.4-5.5 ft.lbs.)".

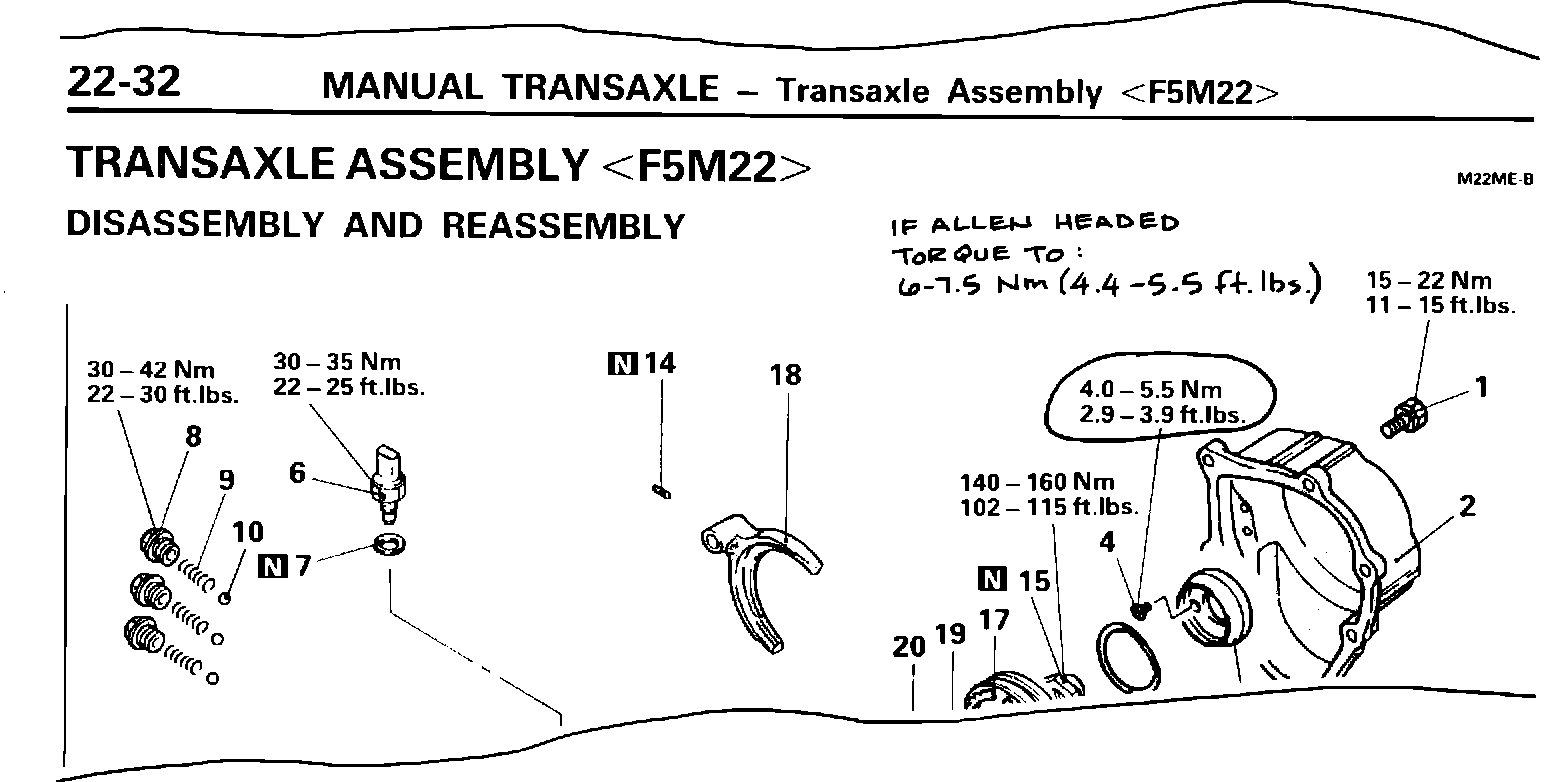

Typical Service Manual Page





1991 Eclipse page 22-23, 22-34
1989-1991 Galant, volume 3, page 22-26 1991 Mirage page 22-32
Please write "IF ALLEN HEADED, TORQUE TO: 6-7.5 N-m (4.4-5.5 ft.lbs.)".
Typical Service Manual Page
