Transfer Case Sub Assembly

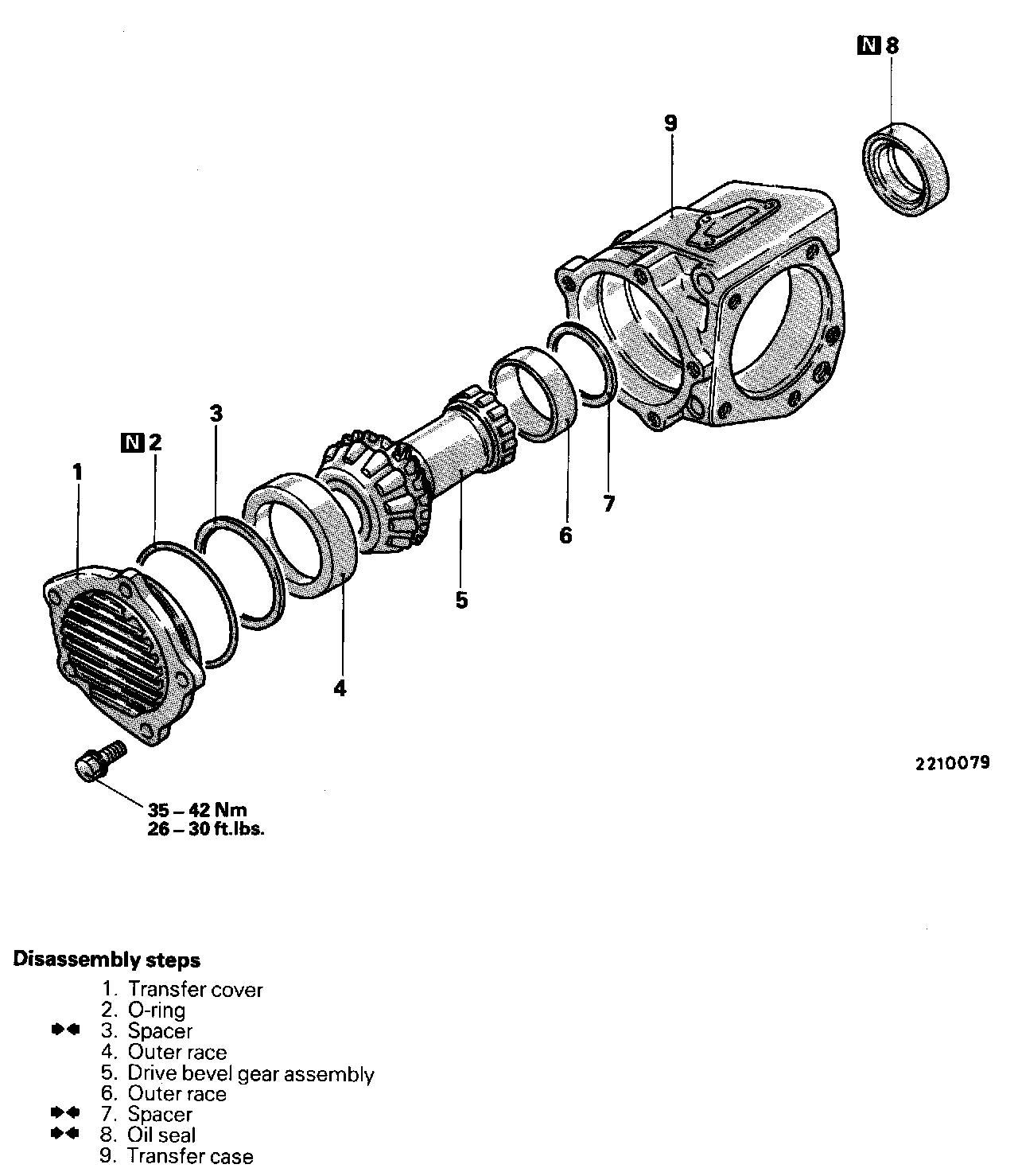

DISASSEMBLY AND REASSEMBLY

SERVICE POINTS OF REASSEMBLY

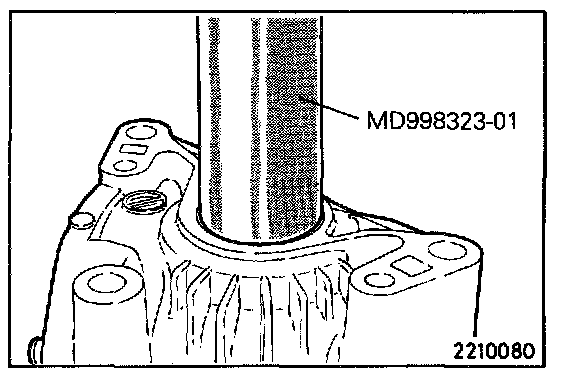

8. INSTALLATION OF OIL SEAL
Using the special tool, install the oil seal.

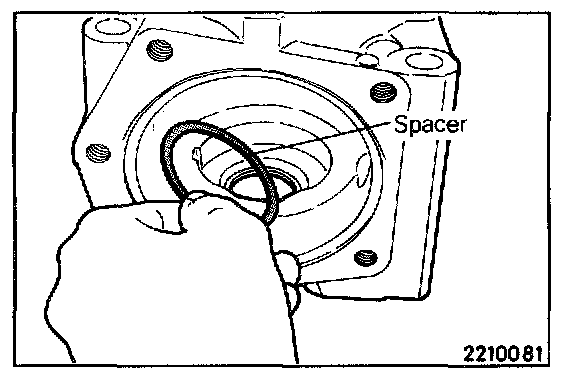

7. INSTALLATION OF SPACER
Install the spacer which has been used so far.

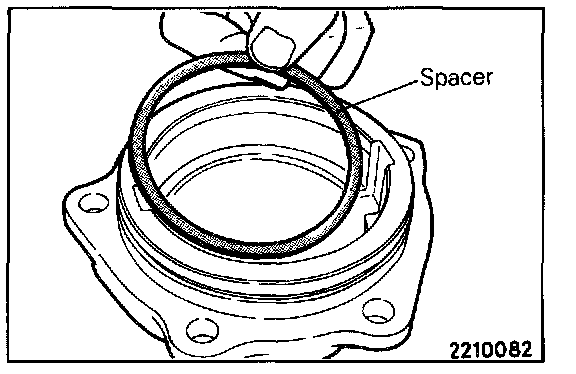

3. INSTALLATION OF SPACER
Install the spacer which has been used so far.

INSPECTION

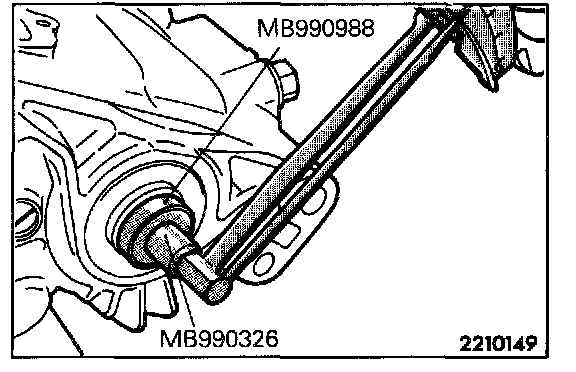

DRIVE BEVEL GEAR ASSEMBLY
Using the special tools, check to see if the turning drive torque of the drive bevel gear is up to specification.

Standard value: 1.7 - 2.5 N-m (1.23 - 1.81 ft-lbs.)

CAUTION:
1. If the turning drive torque is out of specification, adjust by using adjusting spacers.
2. Select spacers of nearly same thickness on both sides.
