Transfer

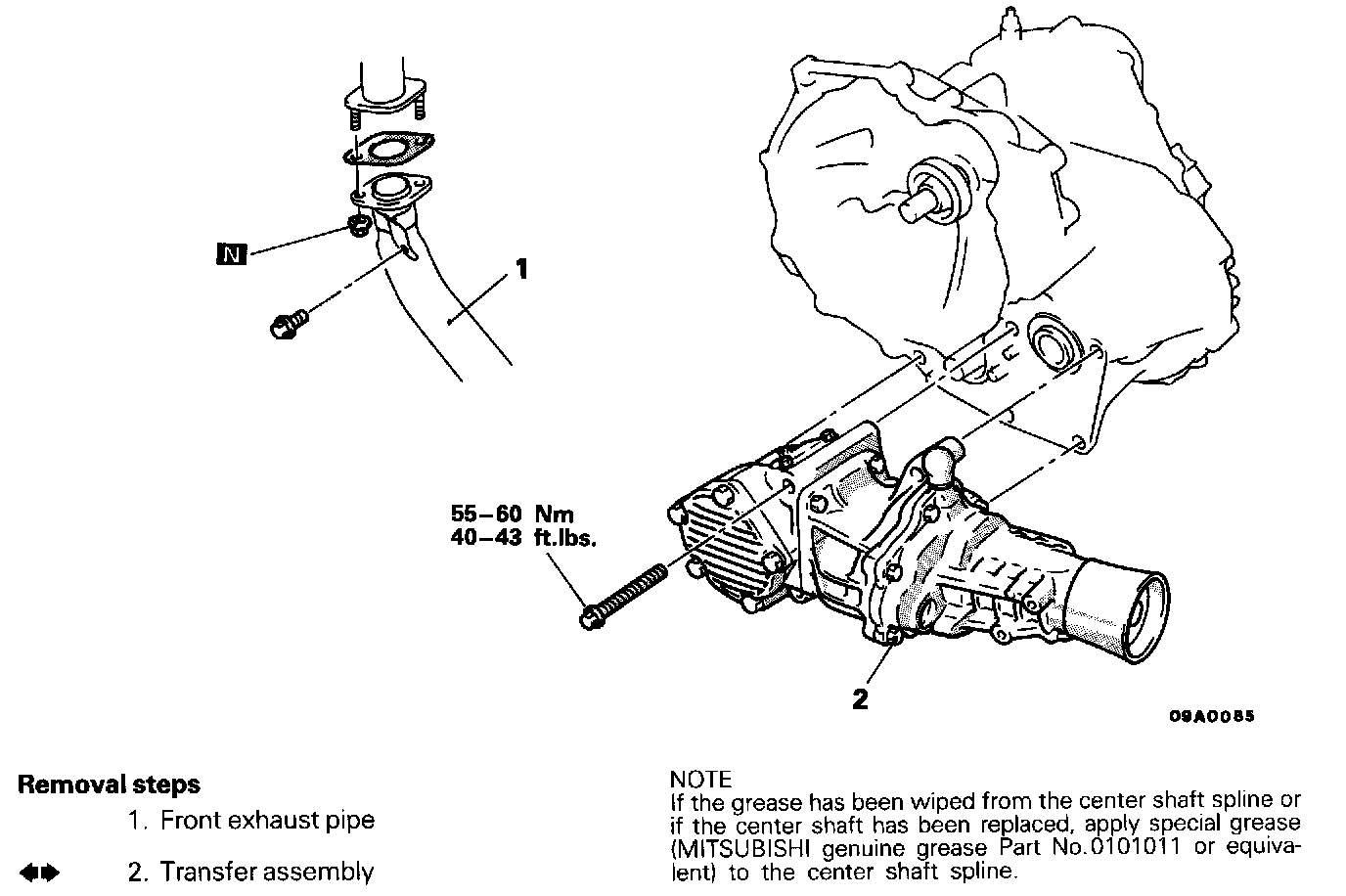

REMOVAL AND INSTALLATION

SERVICE POINTS OF REMOVAL







2. REMOVAL OF TRANSFER ASSEMBLY
After moving the transfer assembly to the left and lowering the front side, then remove it from the propeller shaft.

CAUTION:
1. Be cautious to avoid damaging the transfer oil seal lip.
2. The propeller shaft should be suspended so that it is not sharply bent.

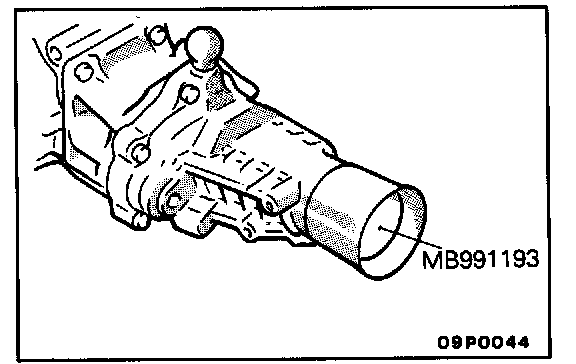

3. Cover the transfer opening with the special tool to prevent transaxle oil discharge and the entry of foreign objects.
