Speedometer Gear Assembly

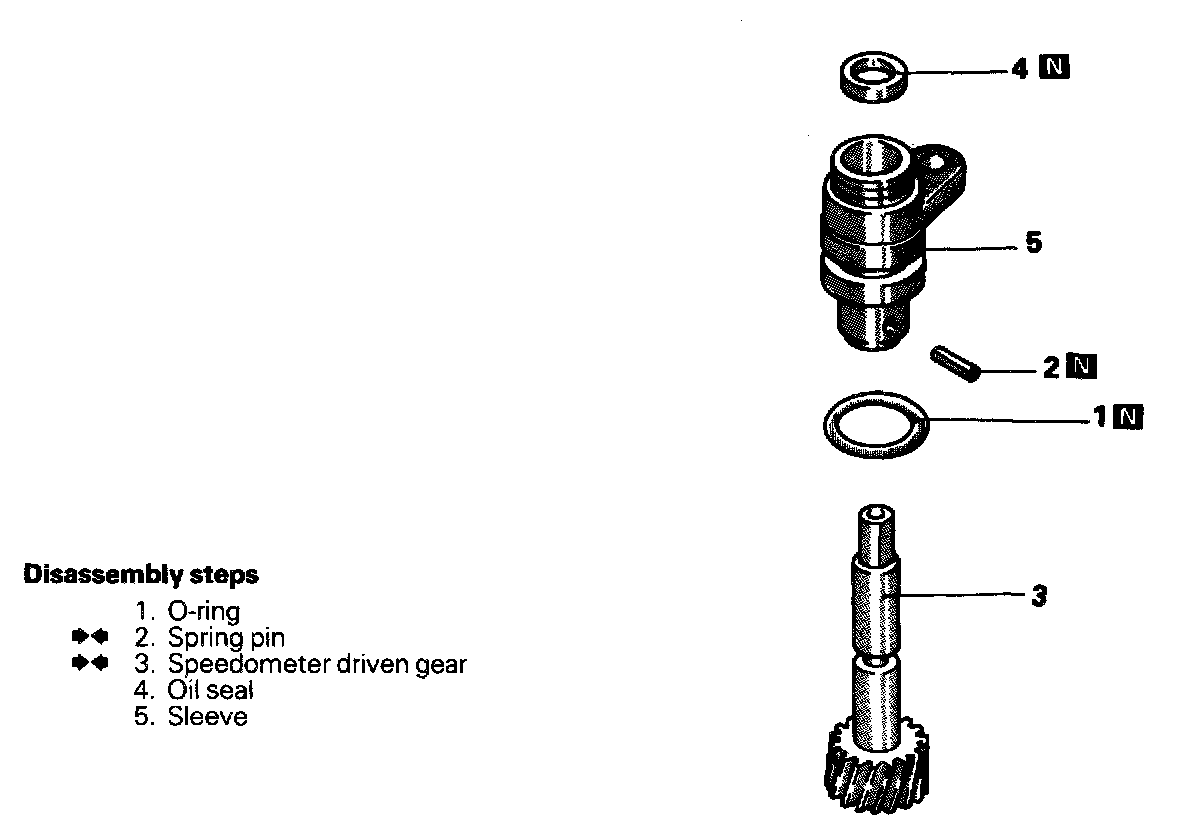

DISASSEMBLY AND REASSEMBLY

SERVICE POINTS OF REASSEMBLY
3. INSTALLATION OF SPEEDOMETER DRIVEN GEAR
Apply a small amount of gear oil to the speedometer driven gear shaft and insert the gear into position.




2. INSTALLATION OF SPRING PIN

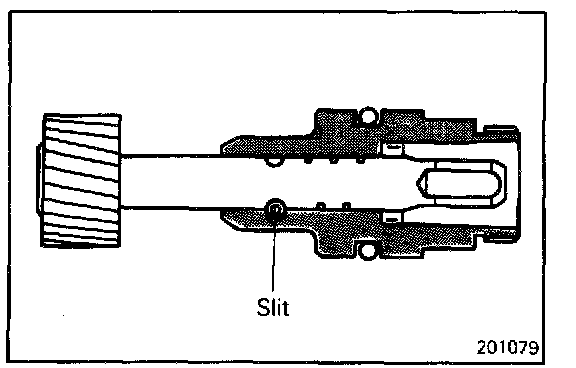

Install the spring pin so that its slit is not in contact with the gear shaft.
