Transfer Oil Seal Replacement

1. Pull out the propeller shaft from the transaxle.

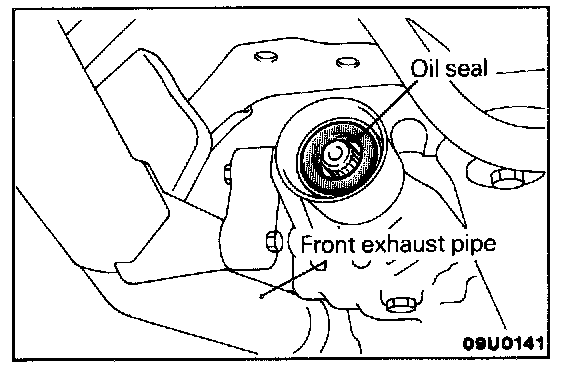

2. Using a flat-tip (-) screwdriver, remove the oil seal.

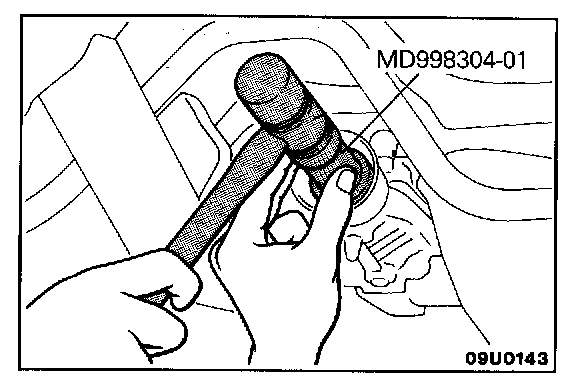

3. Using the special tool, tap the drive shaft oil seal into the transaxle.
4. Apply a coating of the transaxle.

Transaxle oil: Hypoid gear oil or equivalent, API classification GL-4
