Drive Shaft Oil Seals Replacement

1. Disconnect the drive shaft from the transaxle.
2. Remove the transfer assembly.

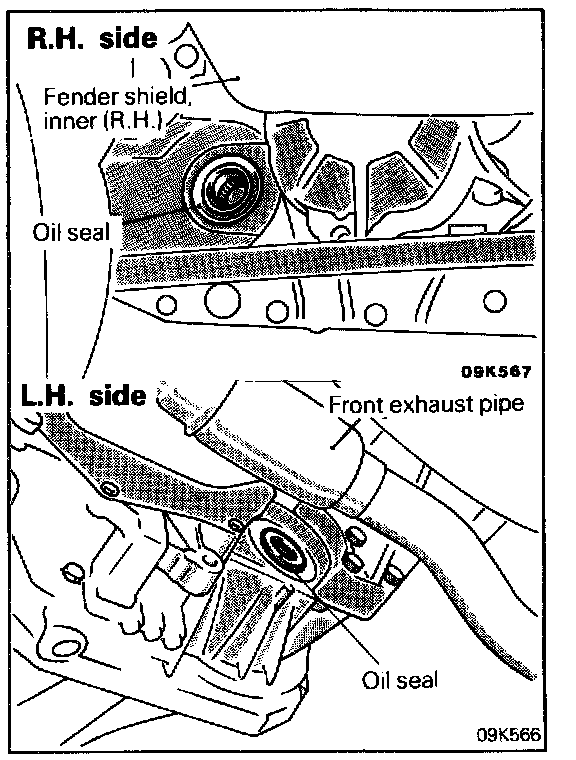

3. Using a flat-tip (-) screwdriver, remove the oil seal.







4. Install the oil seals using the following procedure:

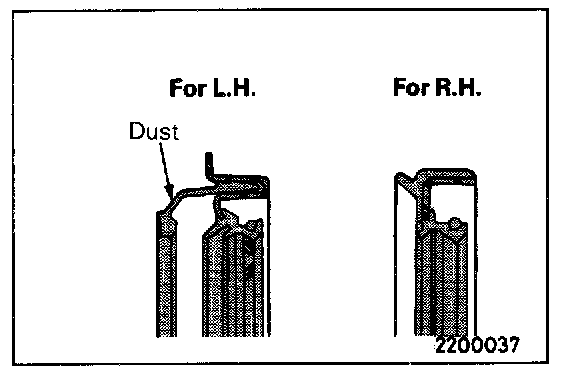

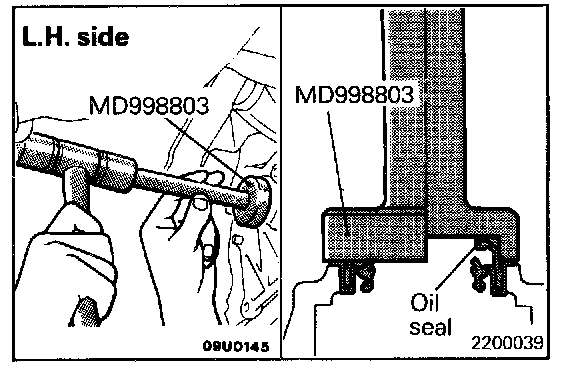

Using the special tool, tap the oil seal into the transaxle. Note that there are two types of oil seals, one for R.H. and the other for L.H., and the shape of each type is different, as shown.
