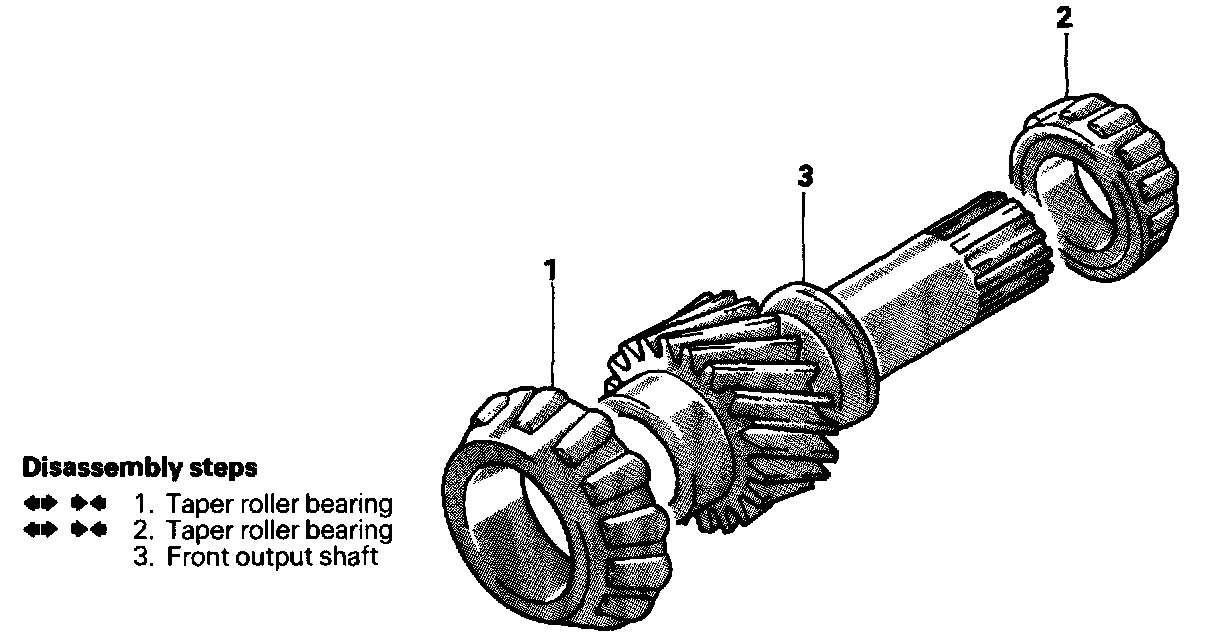

Front Output Shaft Assembly

DISASSEMBLY AND REASSEMBLY

SERVICE POINTS OF DISASSEMBLY

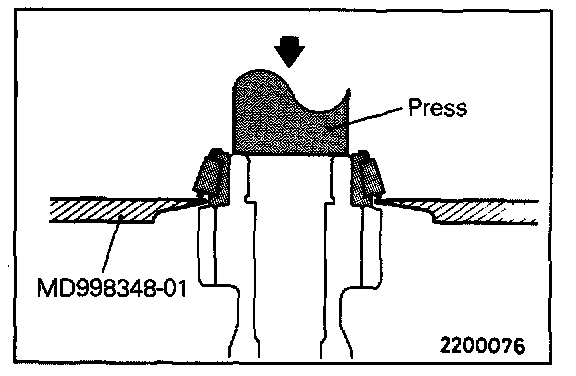

1./2. REMOVAL OF TAPER ROLLER BEARINGS
Using the special tool, remove the taper roller bearing.

CAUTION:
1. Do not reuse the bearing if it has been removed from the shaft.
2. Replace the inner and outer races of the taper roller bearing as a set.

SERVICE POINTS OF REASSEMBLY

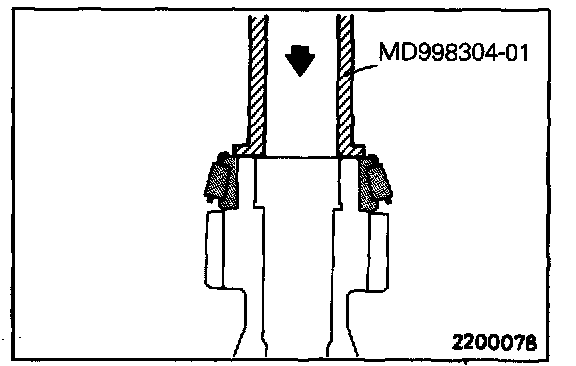

2. INSTALLATION OF TAPER ROLLER BEARINGS
Using the special tool, press-fit the taper roller bearing into position.

CAUTION: Apply the special tool to the inner race only when installing the bearing.

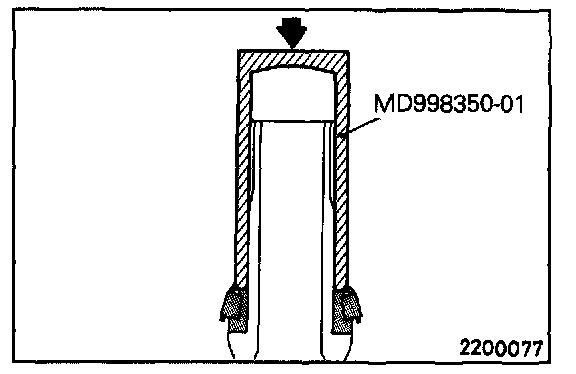

1. INSTALLATION OF TAPER ROLLER BEARINGS
Using the special tool, press-fit the taper roller bearing into position.

CAUTION: Apply the special tool to the inner race only when installing the bearing.
