Extension Housing Assembly

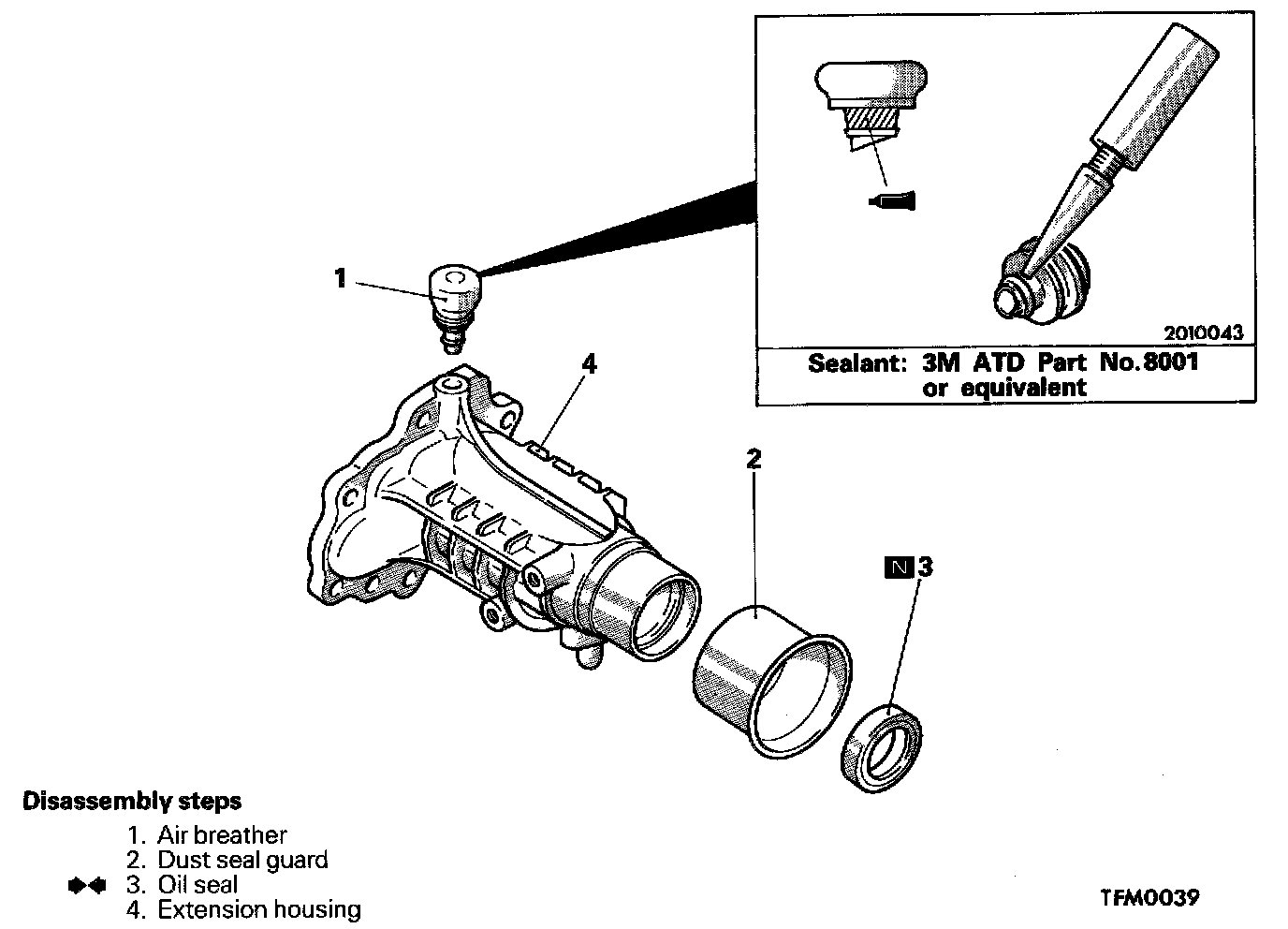

DISASSEMBLY AND REASSEMBLY

SERVICE POINTS OF REASSEMBLY

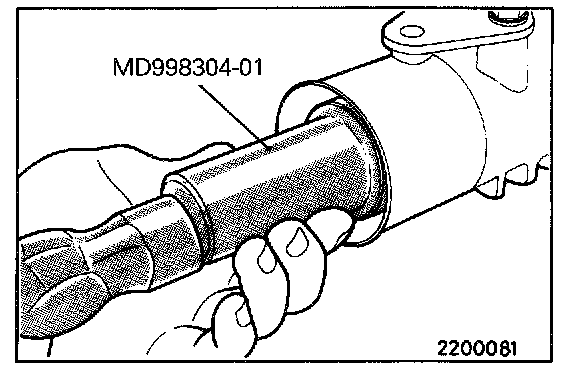

3. INSTALLATION OF OIL SEAL
Using the special tool, install the oil seal.
