Driven Bevel Gear Assembly

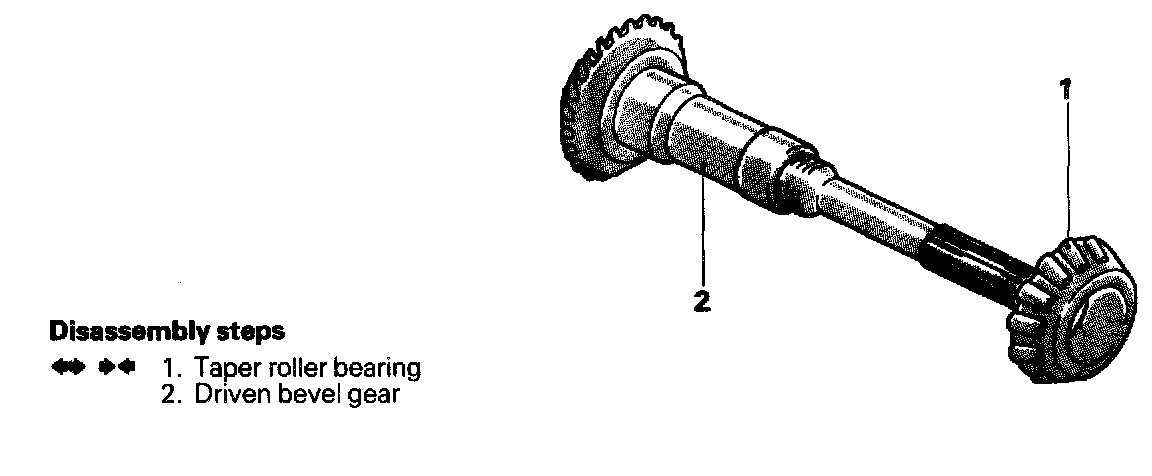

DISASSEMBLY AND REASSEMBLY

SERVICE POINTS OF DISASSEMBLY




1. REMOVAL OF TAPER ROLLER BEARING

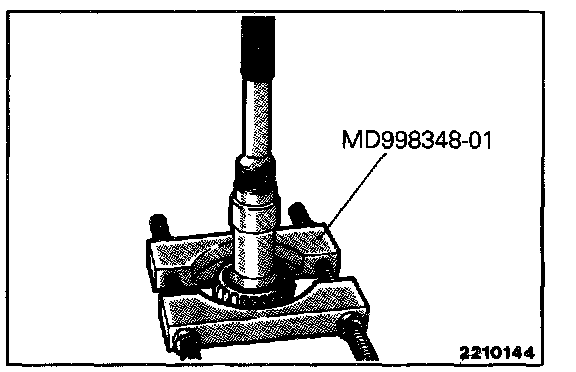

Using the special tool, remove the taper roller bearing.

SERVICE POINTS OF REASSEMBLY




1. INSTALLATION OF TAPER ROLLER BEARING

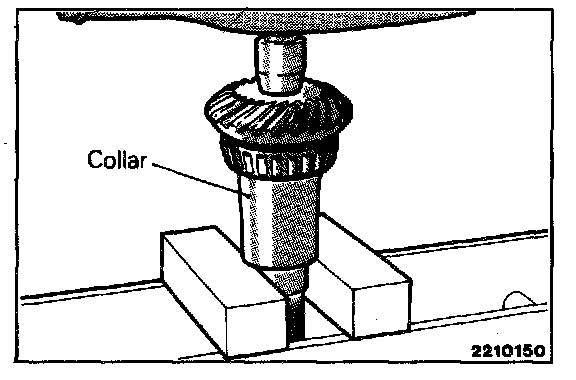

Using the collar, install the taper roller bearing.
