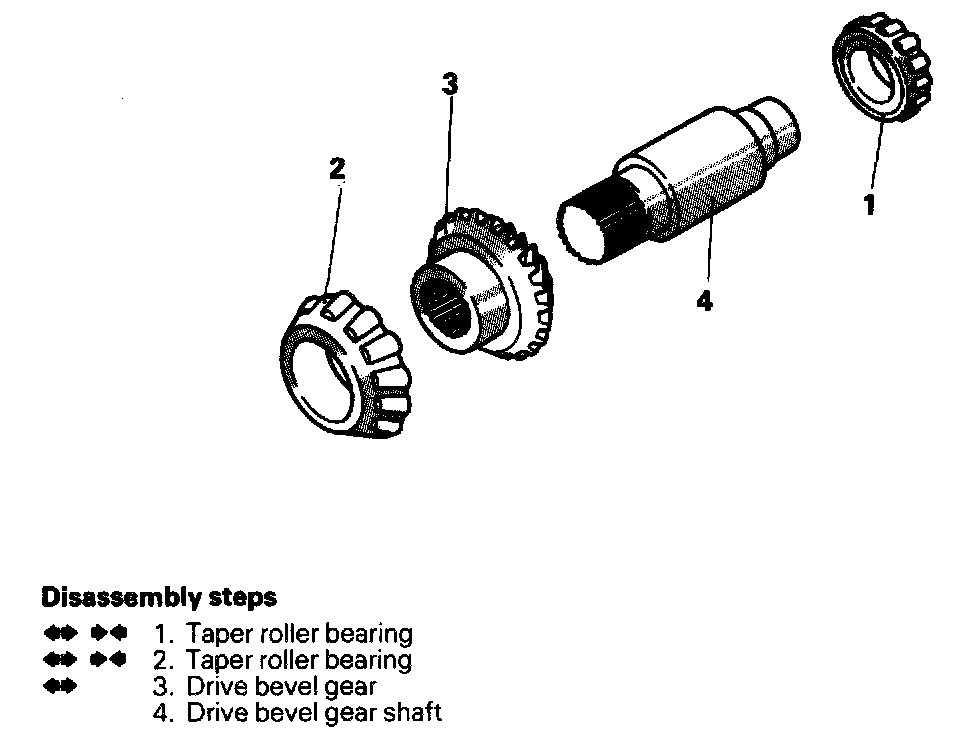

Drive Bevel Gear Assembly

DISASSEMBLY AND REASSEMBLY

SERVICE POINTS OF DISASSEMBLY

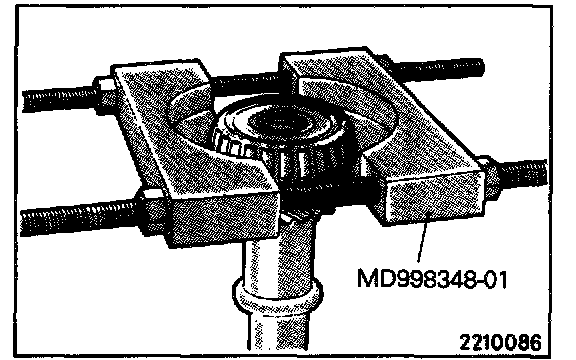

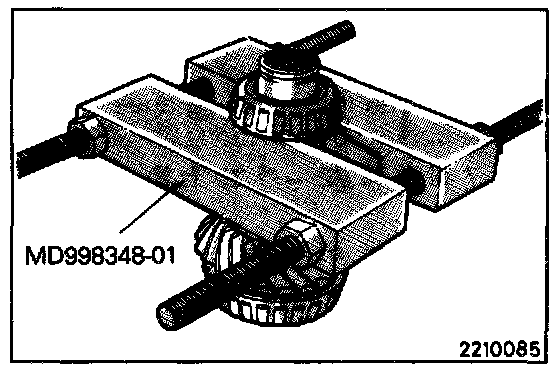

1./2. REMOVAL OF TAPER ROLLER BEARING
Using the special tool, remove the taper roller bearing.

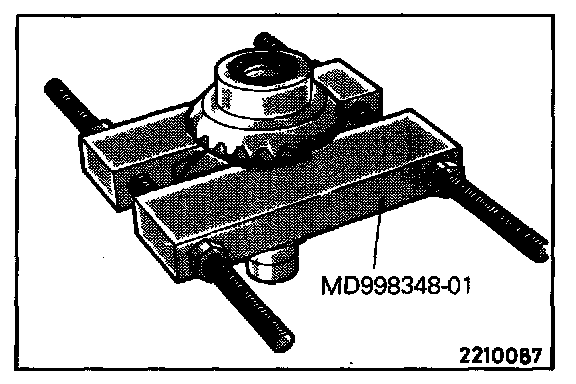

3. REMOVAL OF DRIVE BEVEL GEAR
Using the special tool, remove the drive bevel gear.

SERVICE POINTS OF REASSEMBLY

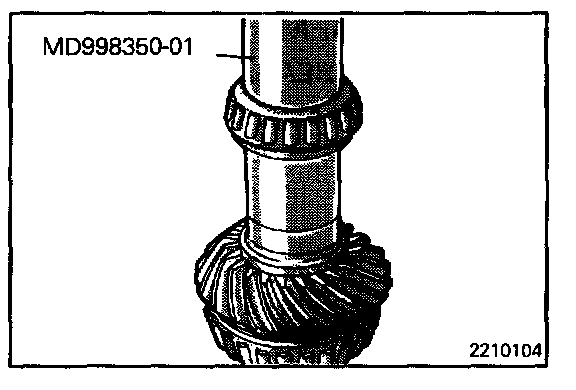

2./1. INSTALLATION OF TAPER ROLLER BEARING
Using the special tool, install the taper roller bearing.
