Clutch Housing Assembly

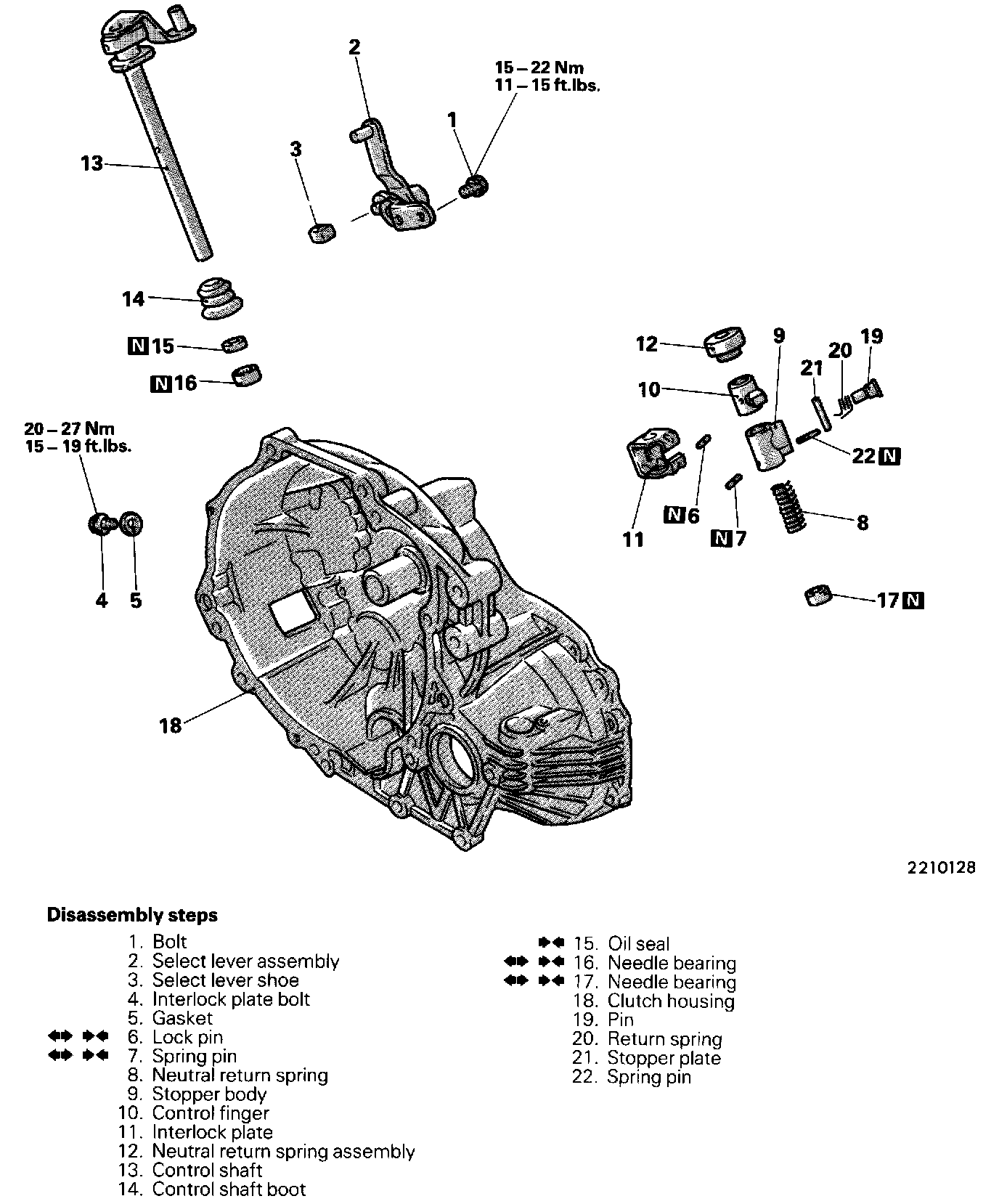

DISASSEMBLY AND REASSEMBLY

SERVICE POINTS OF DISASSEMBLY




6. REMOVAL OF LOCK PIN

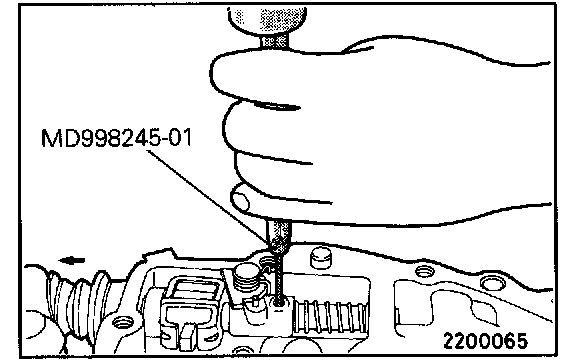

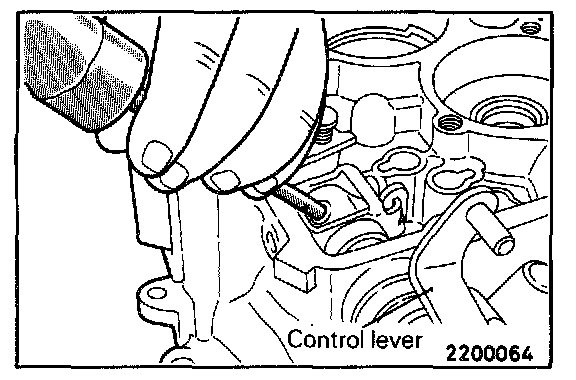

Drive out the lock pin from the control finger using the pin punch.

CAUTION: When removing the lock pin, turn the control lever to a position so that the lock pin will not contact the clutch housing.




7. REMOVAL OF SPRING PIN

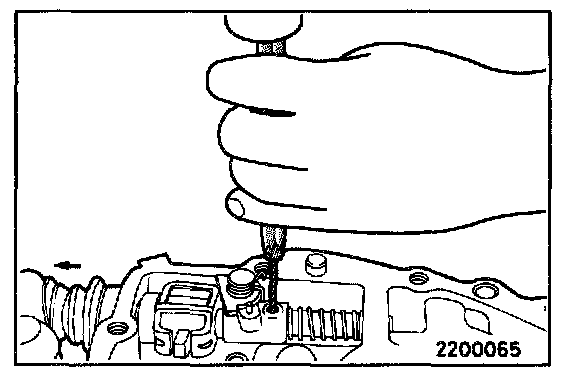

Using the pin punch, drive out the spring pin from the stopper body.

CAUTION: When removing the spring pin, pull the control shaft in the direction shown so that the spring pin will not contact the clutch housing.

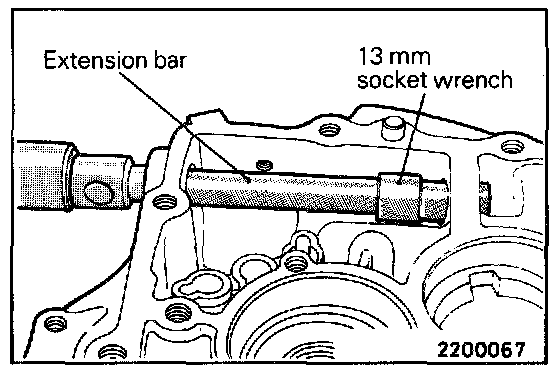

16./17. REMOVAL OF NEEDLE BEARING

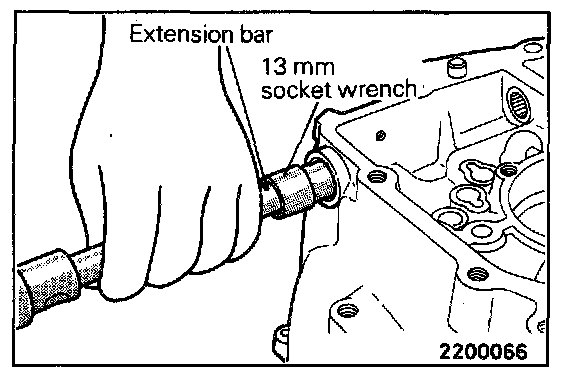

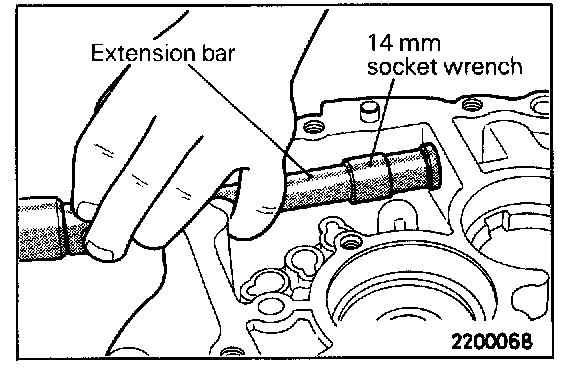

Drive out the needle bearing using a socket wrench.

SERVICE POINTS OF REASSEMBLY










17./16. INSTALLATION OF NEEDLE BEARINGS

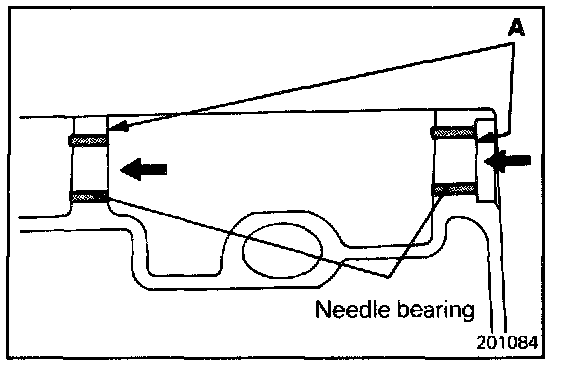

1. Using a socket wrench, press-fit the needle bearing flush with surface A in the clutch housing.
2. Make sure that the side of the bearing with a stamped type number faces surface A.




15. INSTALLATION OF OIL SEAL

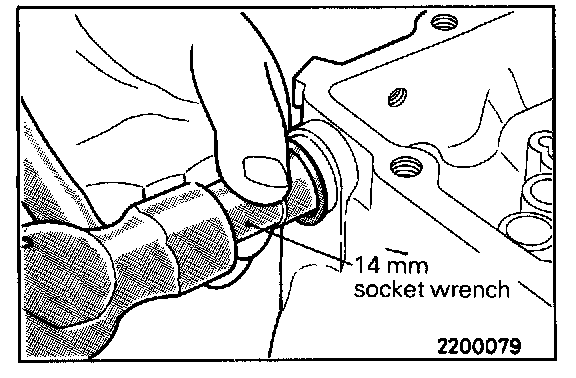

Using a socket wrench, install the control shaft oil seal.







7. INSTALLATION OF SPRING PIN / 6. LOCK PIN
Using the special tool, drive a new spring pin and lock pin into position.

CAUTION:
1. Do not reuse the spring pin or lock pin.

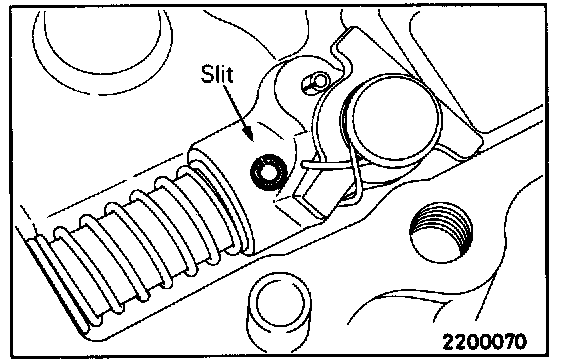

2. Install the spring pin so that its slit will be at right angles to the control shaft centerline.
