Home >> Mitsubishi >> 1991 >> Eclipse AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Application and ID

Manual Transmission/Transaxle: Application and ID

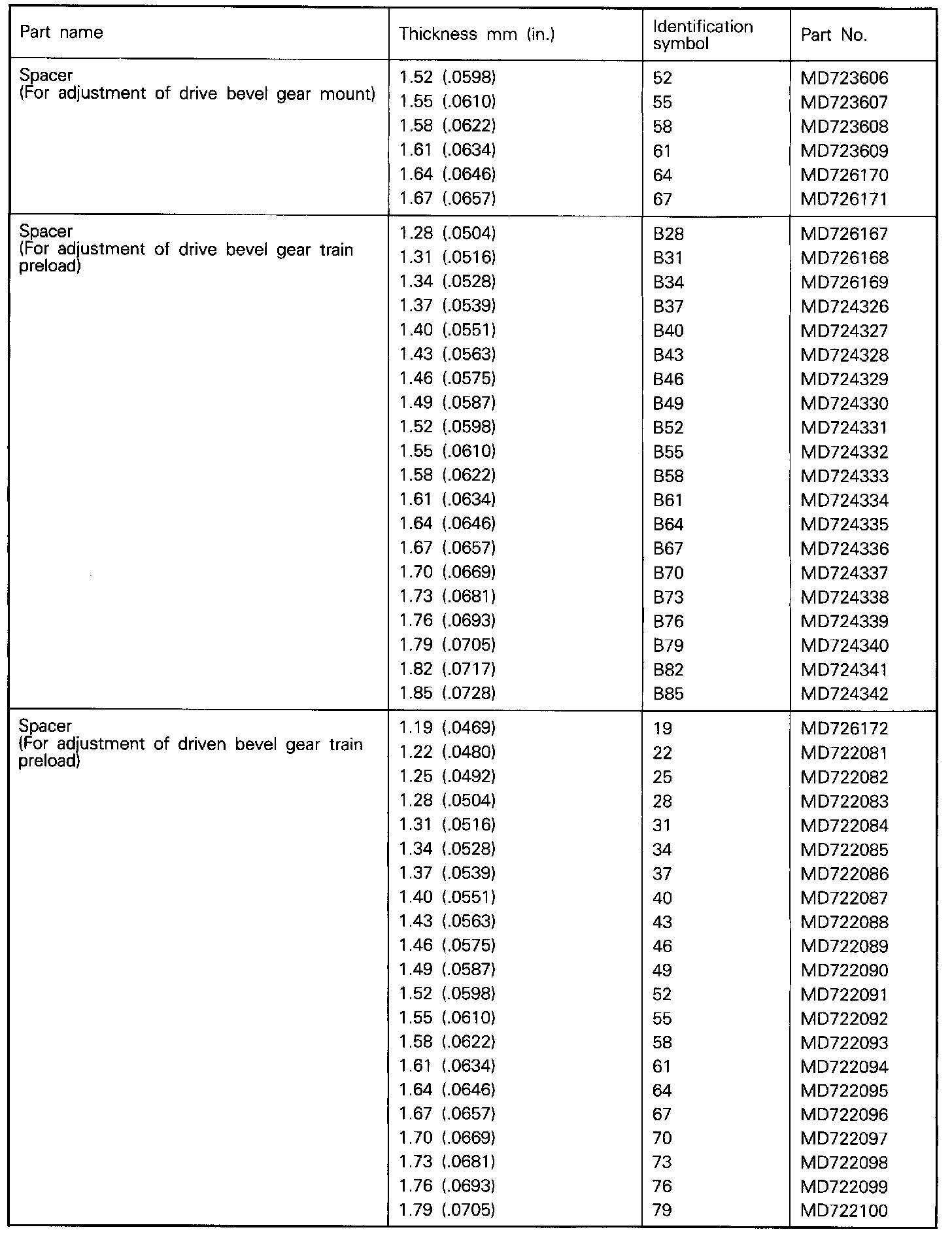

Part 1:

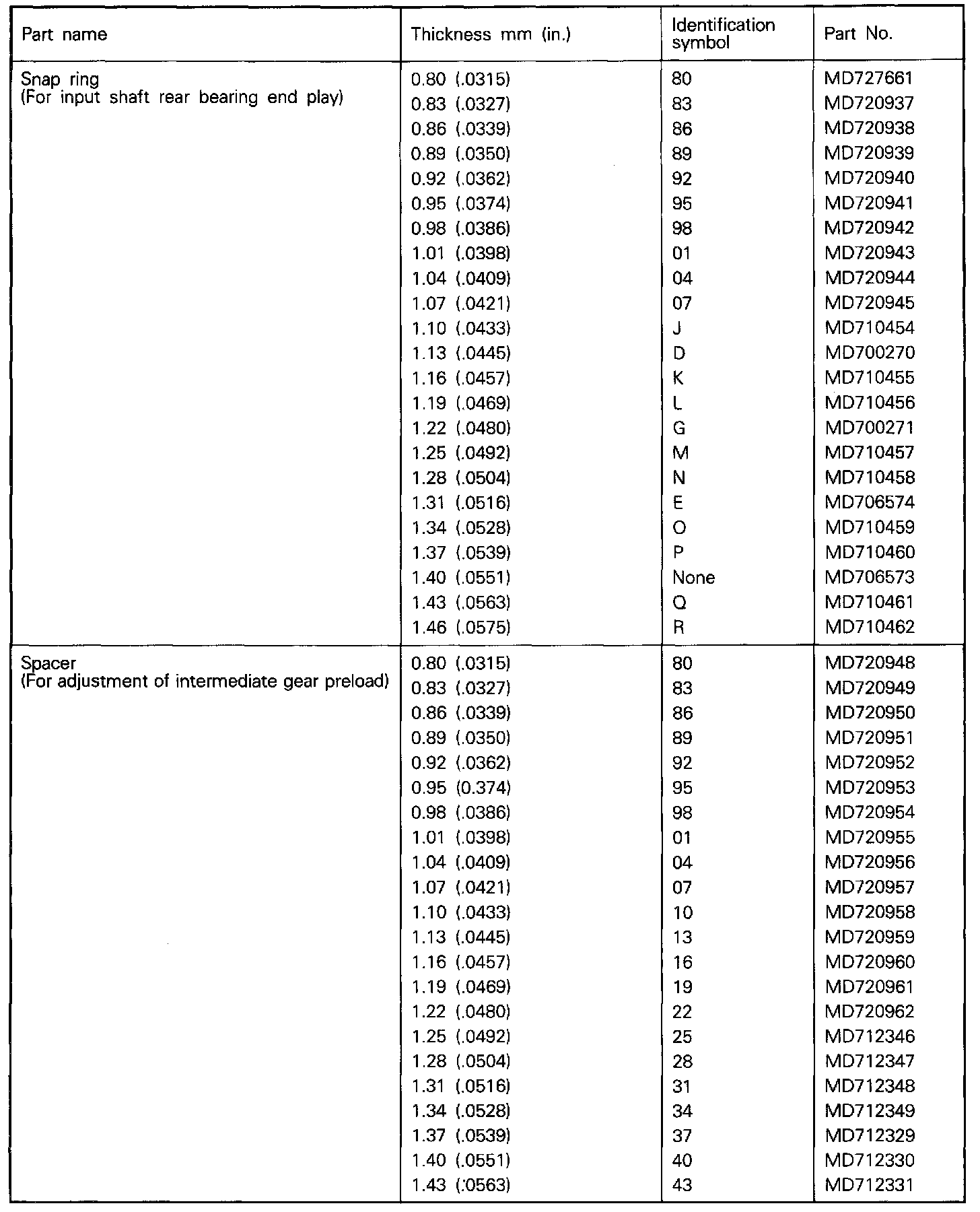

Part 2:

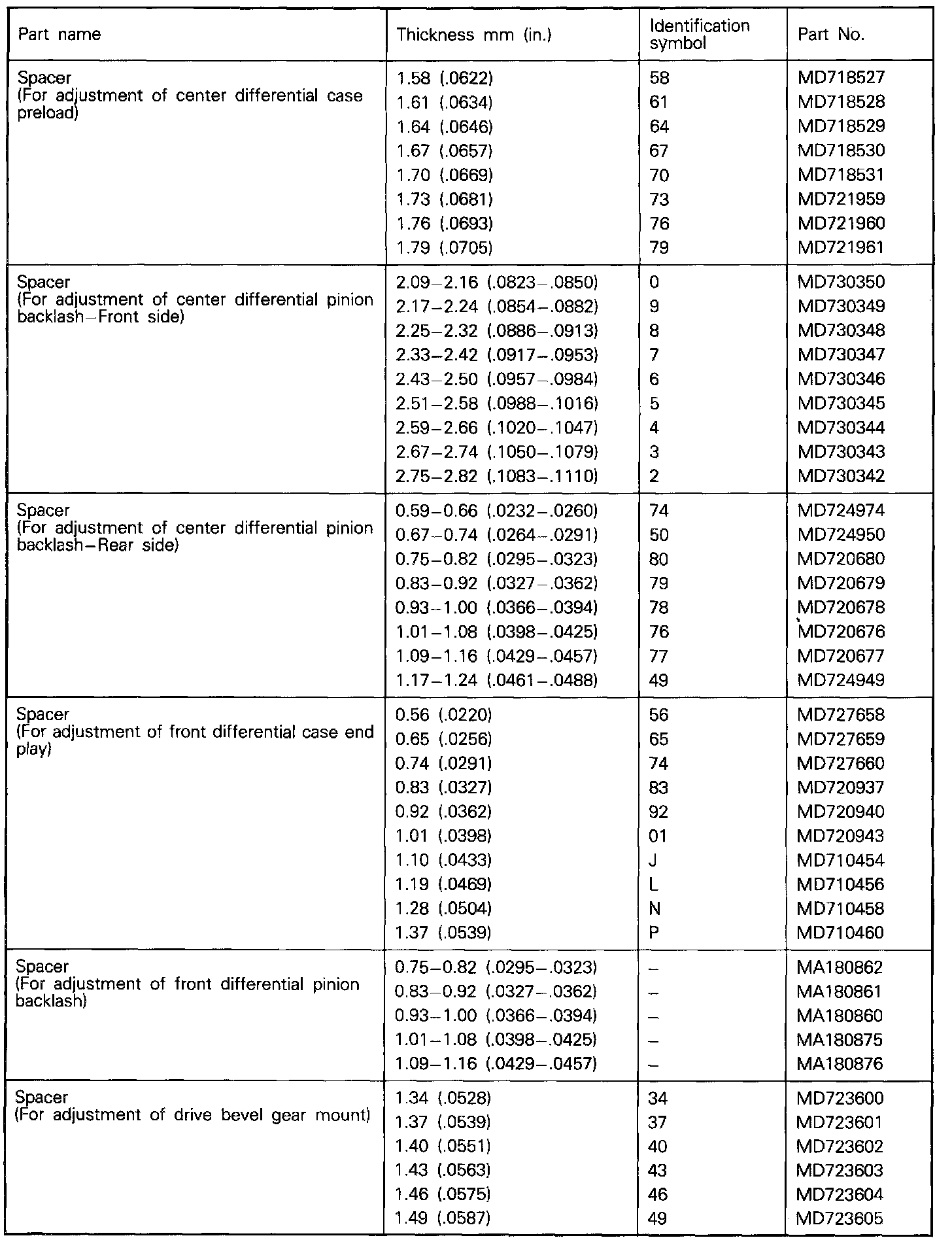

Part 3:

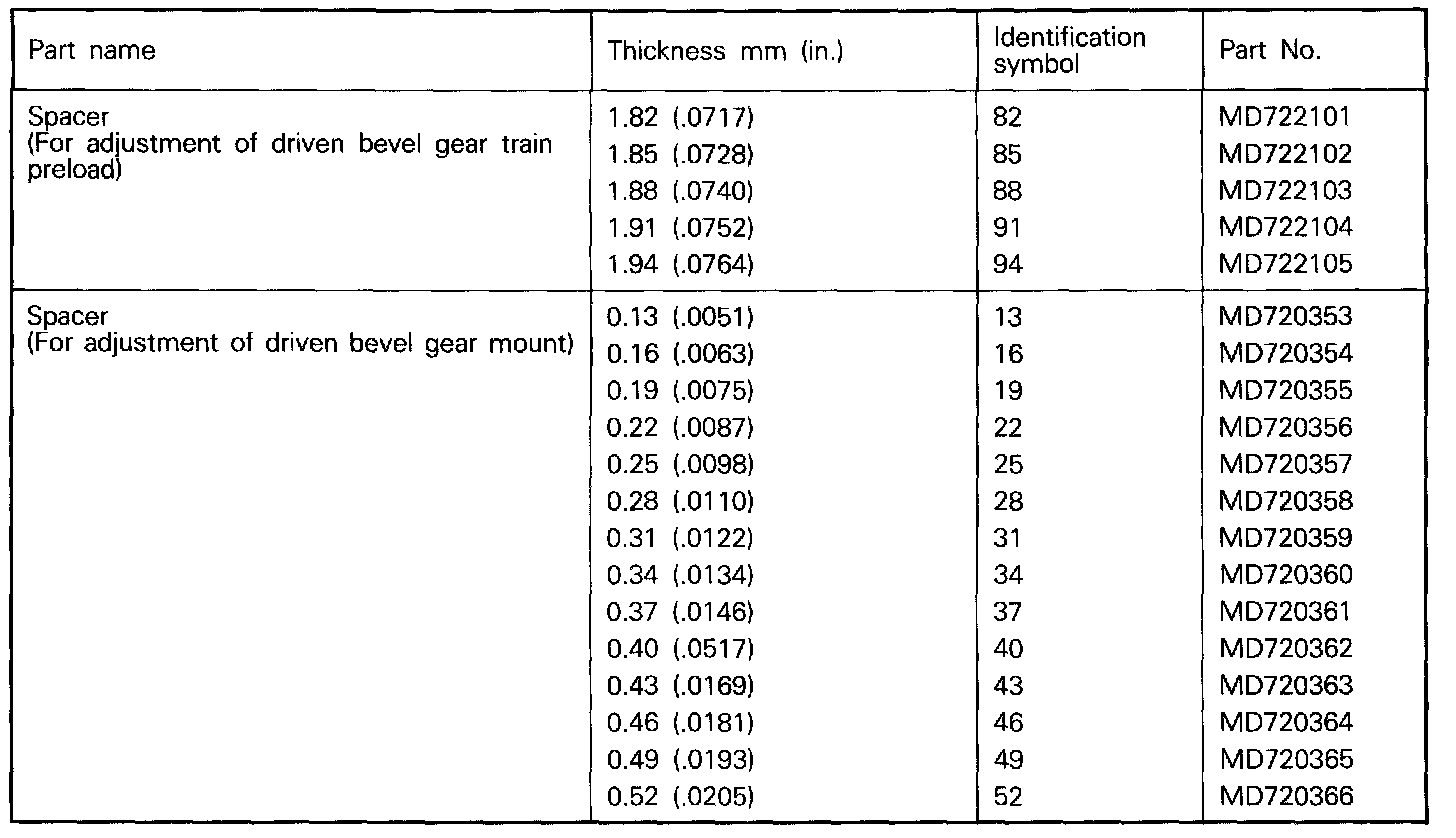

Part 4:

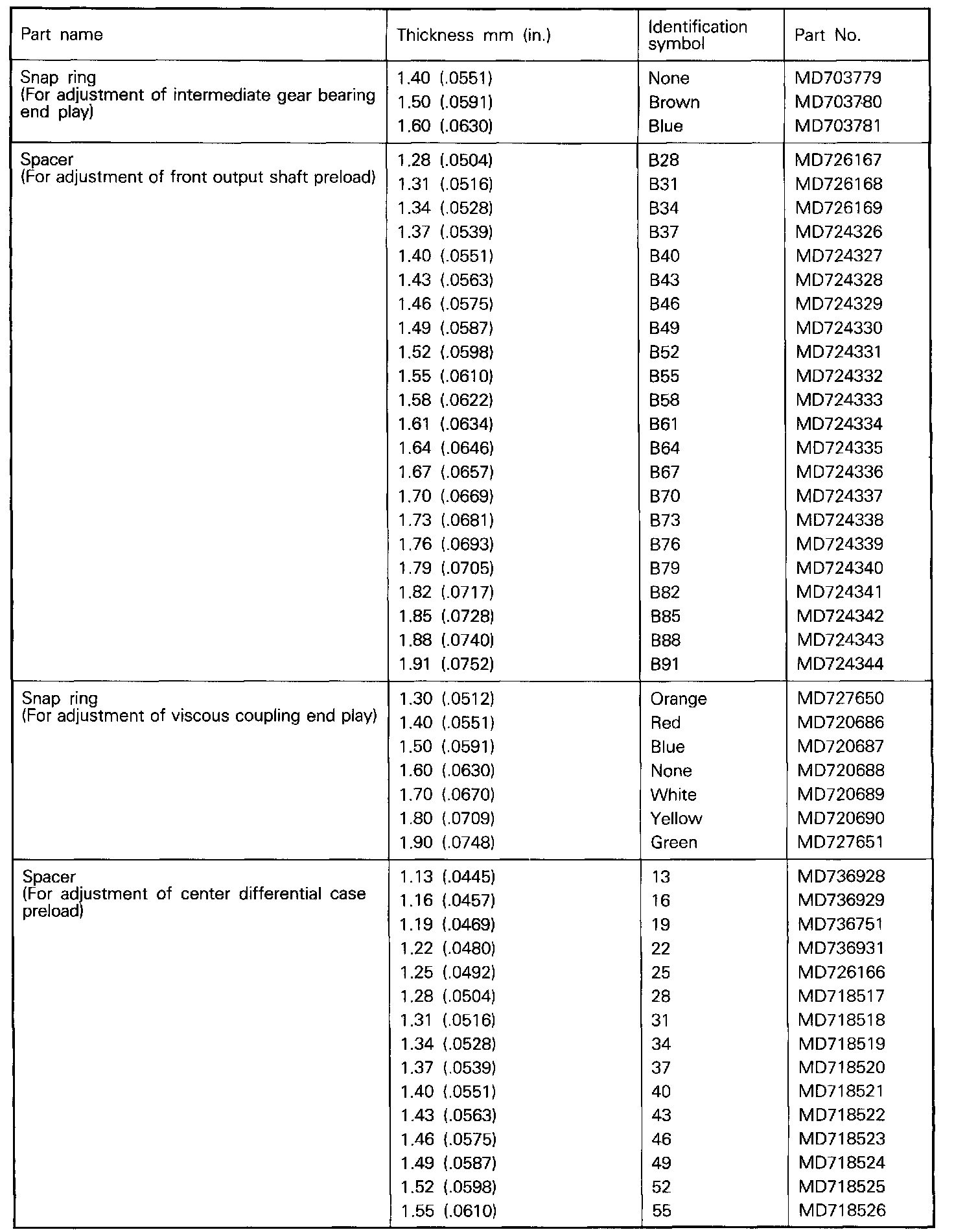

Part 5:
