A/T - Valve Body Repair Manual Corrections
NO.: TSB-92-23-007DATE: December, 1992
MODEL: 1991 Eclipse, Mirage, 3000GT
SUBJECT:
LOCATION OF N-D STOPPER PLATE -
SERVICE MANUAL REVISION
TSB Revision TSB-92-23-007
PURPOSE
This bulletin corrects the automatic transaxle N-D stopper plate location shown in the A/T valve body illustrations of three 1991 service manuals.
For reference, please write the TSB revision number in the TSB revision box located at the bottom of each affected service manual page.
AFFECTED SERVICE MANUALS
1991 Eclipse. Volume 1, Page 23-195 1991 Mirage, Volume 1, Pages 23-198 and 23-207
1991 3000GT, Volume 1, Page 23-111
DESCRIPTION

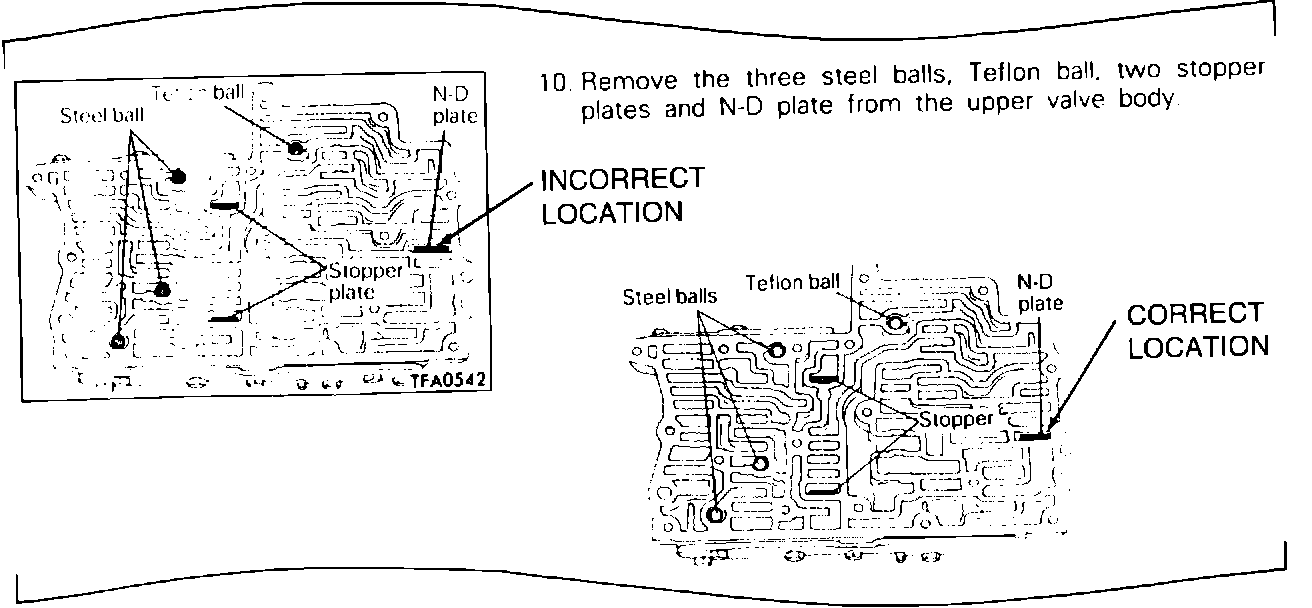

The location of the automatic transaxle N-D stopper plate is incorrectly illustrated in three 1991 service manuals. As shown in the following example, please revise each affected service manual page by moving the N-D stopper plate to its correct location.
NOTE:
The example shows an illustration revision to page 23-198 of the Mirage service manual. Eclipse and 3000GT service manual revisions are identical, although the text on the pages may differ.
