A/T - Idle Switch Revision
NO.: TSB-91-23-020DATE: October, 1991
MODEL: 1991 Eclipse
SUBJECT:
AUTOMATIC TRANSAXLE IDLE SWITCH - SERVICE MANUAL CORRECTION
[TSB Revision TSB-91-23-020]
PURPOSE
This bulletin replaces the 2.0L DOHC automatic transaxle circuit shown in the 1991 Eclipse Service Manual. The idle switch shown in the service manual diagram is not used on the 2.0L DOHC engine. Use the 2.0L circuit diagram shown in this bulletin when troubleshooting the automatic transaxle circuit. Please make the indicated service manual correction as shown and as reference to this bulletin, please write this TSB Number in the TSB Revision boxes on the affected service manual pages.
AFFECTED SERVICE MANUALS
1991 Eclipse, volume 1, Page 23-72
1991 Eclipse, volume 2, Page 92
SERVICE MANUAL CORRECTION

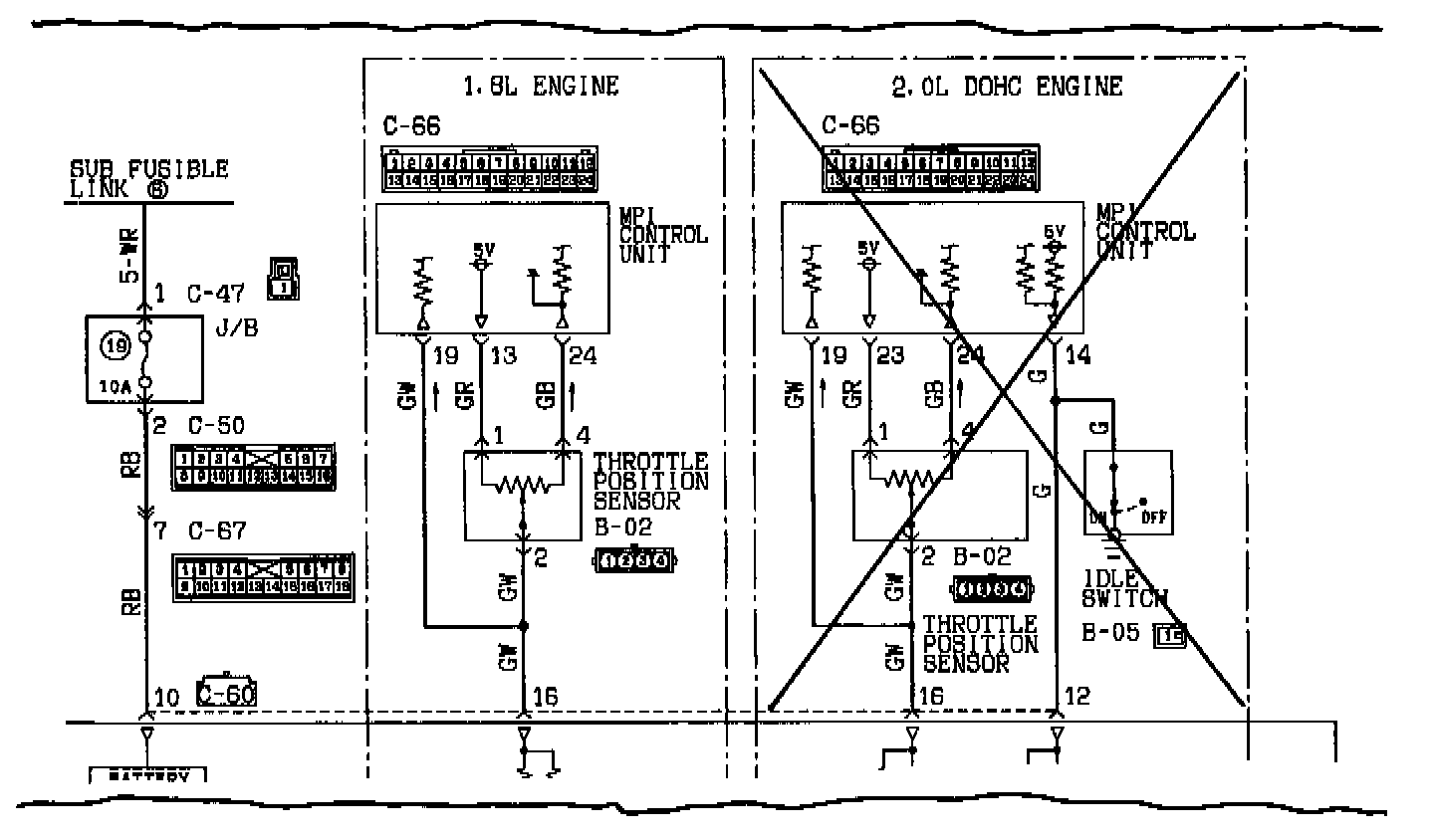

Please cross out the 2.0L DOHC circuit information as shown.

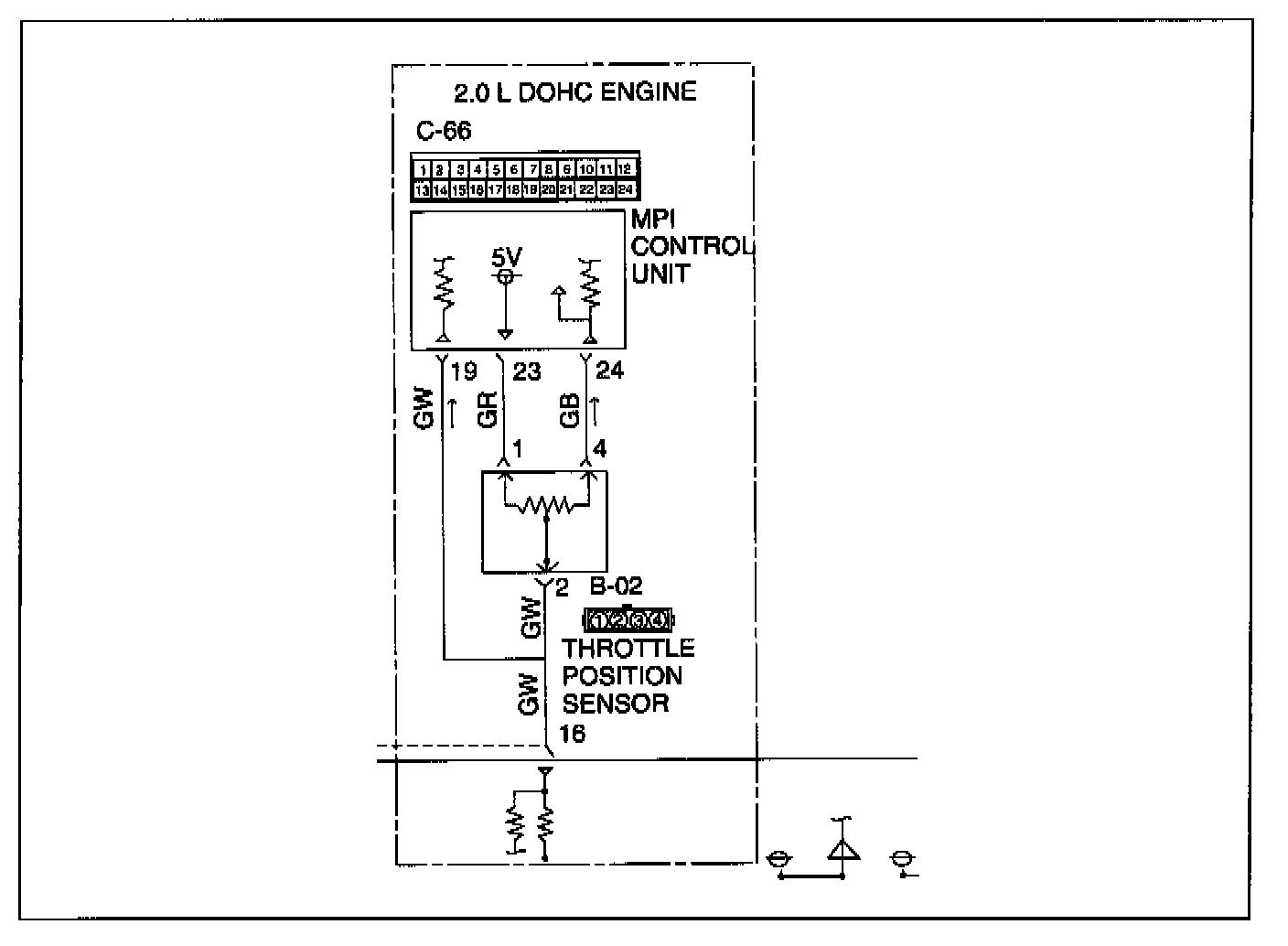

CORRECT 2.0L DOHC ENGINE CIRCUIT DIAGRAM
