A/T - Differential Bearing Spacers, Manual Update

91mitsubishi05

NO. TSB-91-23-012

DATE May, 1991

MODEL 1991 Mirage, 1991 Galant, 1991 Eclipse


SUBJECT: A/T SPACERS -
SERVICE MANUAL UPDATE


TSB Revision TSB 91-23-012

PURPOSE

In the F3A2 and F4A2 automatic transaxles, spacers of various thicknesses are used to adjust differential end play. To provide a wider range of adjustment, thicker spacers are now offered. These additional parts may prove useful when overhauling the automatic transmission.

As reference to this bulletin, please write the TSB number in the revision boxes on the affected pages. It is also recommended that you write-in the new part numbers as illustrated in this bulletin.

SERVICE MANUALS AFFECTED

1991 Mirage, Vol. 1, Page 23-26
1989-1991 Galant, Vol 3, Page 23-10
1991 Eclipse, Vol. 1, Page 23-28





DESCRIPTION

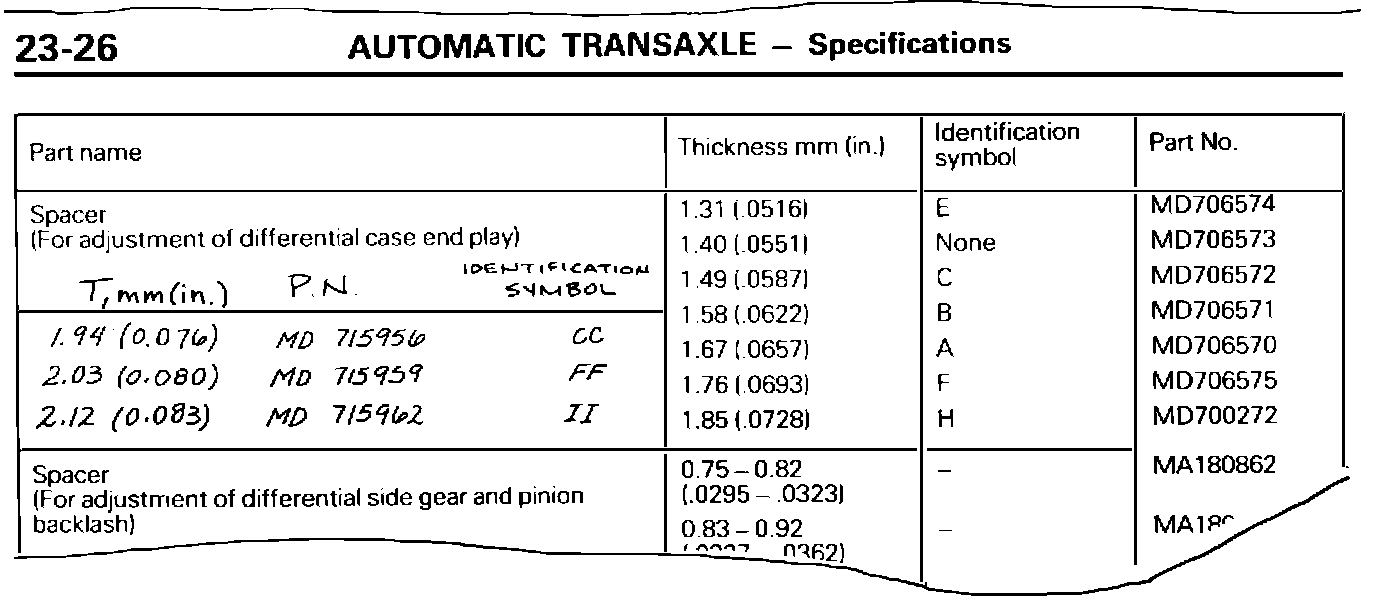

1991 Mirage, Vol. 1, Page 23-26
Add spacer part numbers to the table as illustrated below. (Note: these spacers may be used on either the F3A21 3-speed automatic transmission or the F4A21 four-speed automatic transmission.)

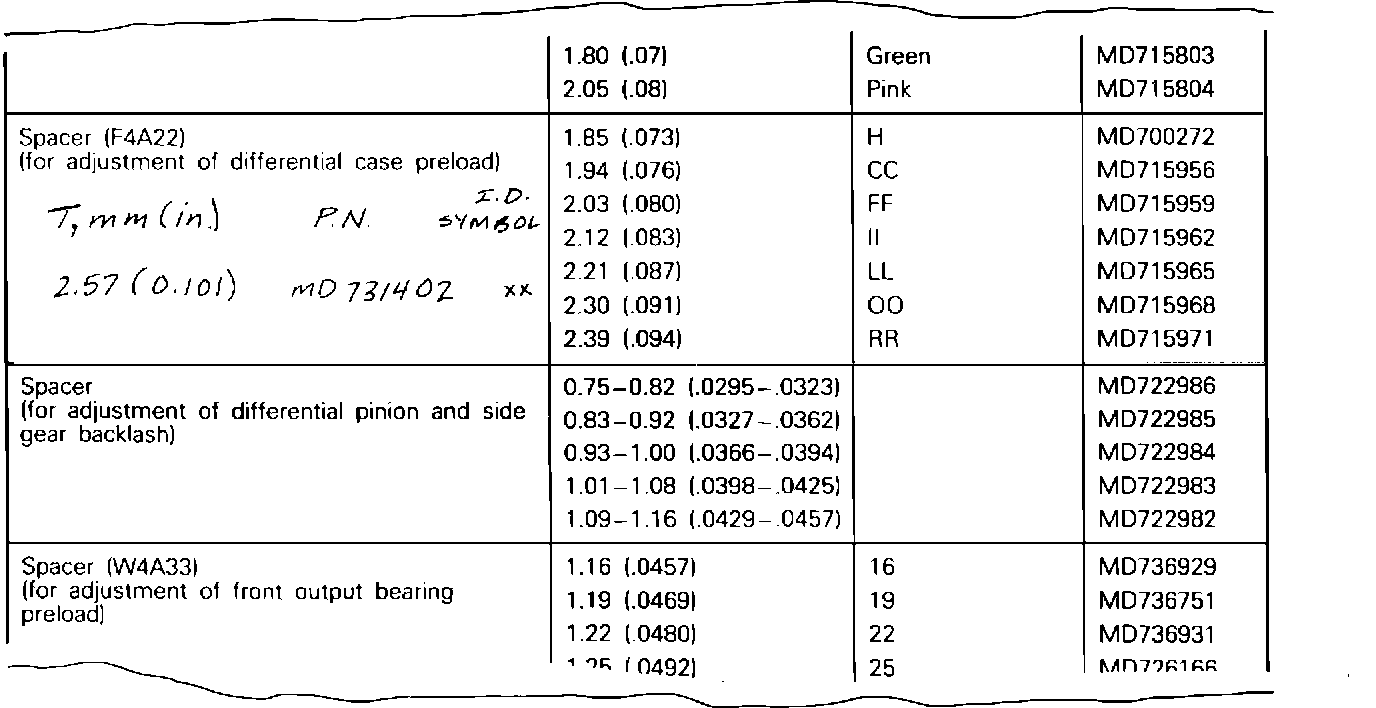

1989-1991 Galant, Vol. 3, Page 23-10

Add the spacer part number for the 2.57 mm spacer used in the F4A22 automatic transmission as illustrated.

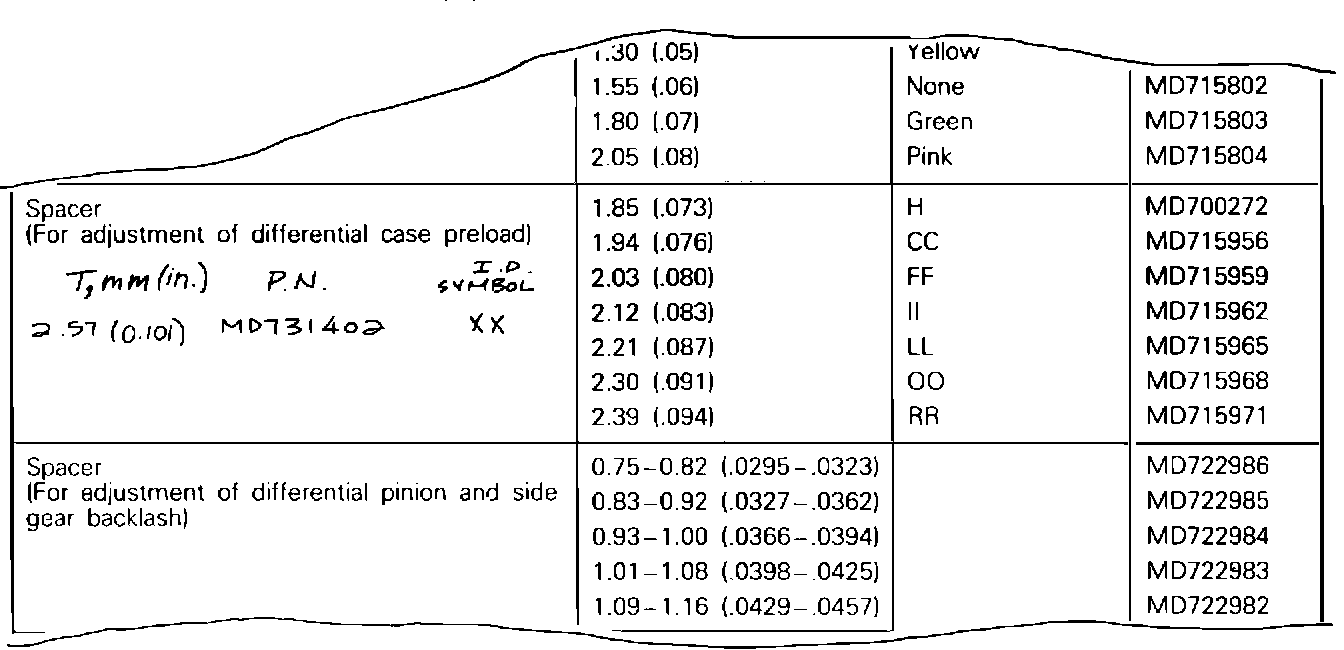

1991 Eclipse, Vol. 1, Page 23-28

Add the 2.57 mm spacer part number for the F4A22 automatic transmission as illustrated.
