Brakes - Pedal Height Adjustment Manual Revision

91mitsubishi01

NO. TSB-91-35-002

DATE January, 1991

1990-91 Eclipse, Galant,
MODEL Mirage, and 3000GT


SUBJECT: ADJUSTING SHIFT LOCK CABLE AFTER

BRAKE PEDAL HEIGHT ADJUSTMENT


TSB Revision TSB-91-35-002


PURPOSE

When brake pedal height is adjusted, be sure to check the A/T shift lock cable adjustment. If the A/T shift lock cable is out of adjustment as a result of the brake pedal height adjustment, it must be readjusted. Refer to Section 23 of the Service Manuals to perform this procedure.

AFFECTED SERVICE MANUALS

Integrated 1989-90-91 Galant Volume 1 (affecting 1990-91 models only), Page 35-12, Step 1.2
1990 Eclipse, Volume 1, Page 35-7, Step 1.2
1991 Eclipse, Volume 1, Page 35-47, Step 1.2
1990 and 1991 Mirage, Volume 1, Page 35-9, Step 1.2
1991 3000GT, Volume 1, Page 35-45, Step 1.2

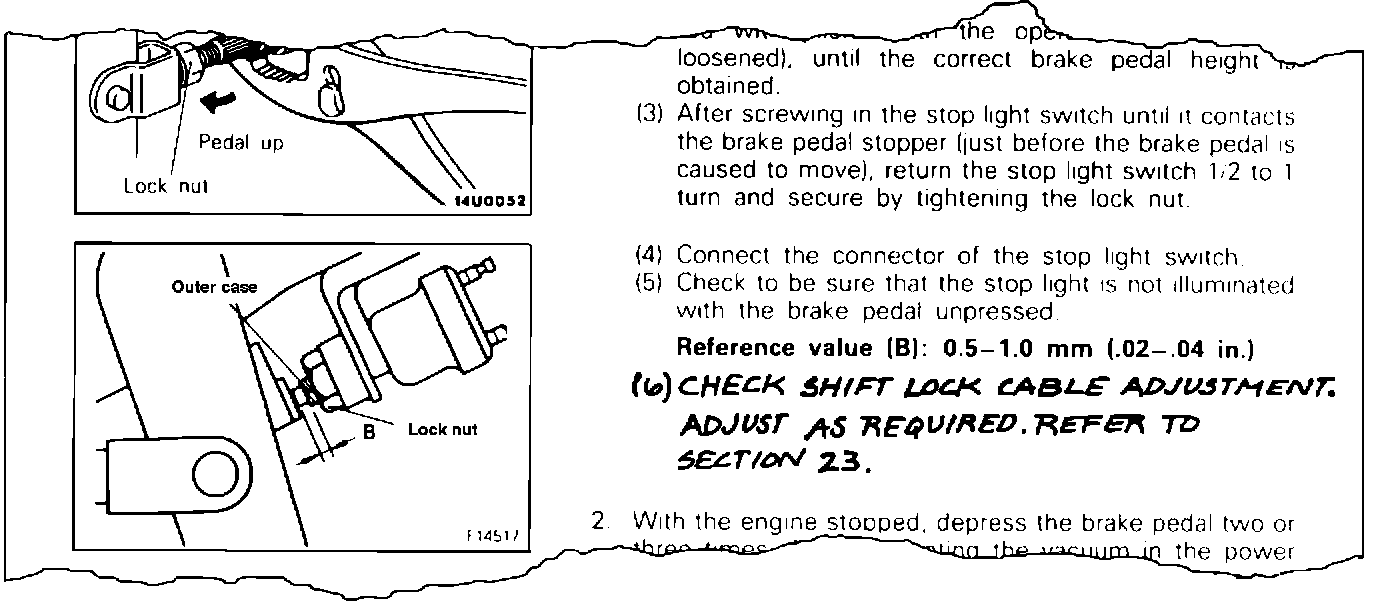

SERVICE MANUAL REVISION

As reference to this bulletin, please write the TSB number in the revision box on the affected pages of the 1991 Service Manuals and add a note as suggested below.
