M/T - Clutch Cover Production Change
NO.: TSB-91-21-002DATE: October, 1991
MODEL: 1991 Eclipse GS-TURBO, 1991 Eclipse GSX
SUBJECT:
CLUTCH COVER CHANGES/IDENTIFICATION
PURPOSE

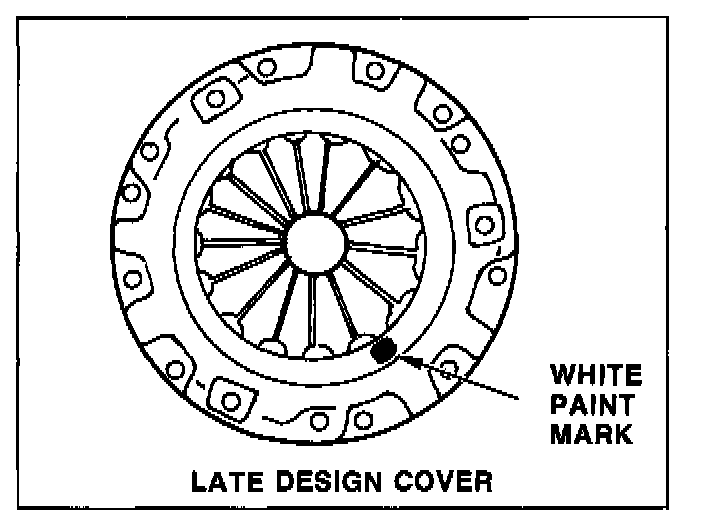

This bulletin is issued to inform Service technicians of clutch cover changes incorporated in 1991 Eclipse turbo equipped vehicles. Engines with number LL1225 and up are equipped with an enhanced heat-resistant late design clutch cover assembly. This late design clutch assembly is identified with a white 10 mm paint mark added to the rear surface of the cover.
PARTS INFORMATION
Late design
(with white 10 mm paint mark)
Cover assy, clutch: MD737970
PART INTERCHANGEABILITY
The older design clutch cover assembly (MD734041) is NOT interchangeable.
NOTE:
The late design clutch cover (MD737970) can be used on earlier vehicles only if the engine flywheel is replaced with the later design flywheel (MD173425).
