1991 and 1992 Eclipse Volume 1 Pages 35-21 and 35-39:

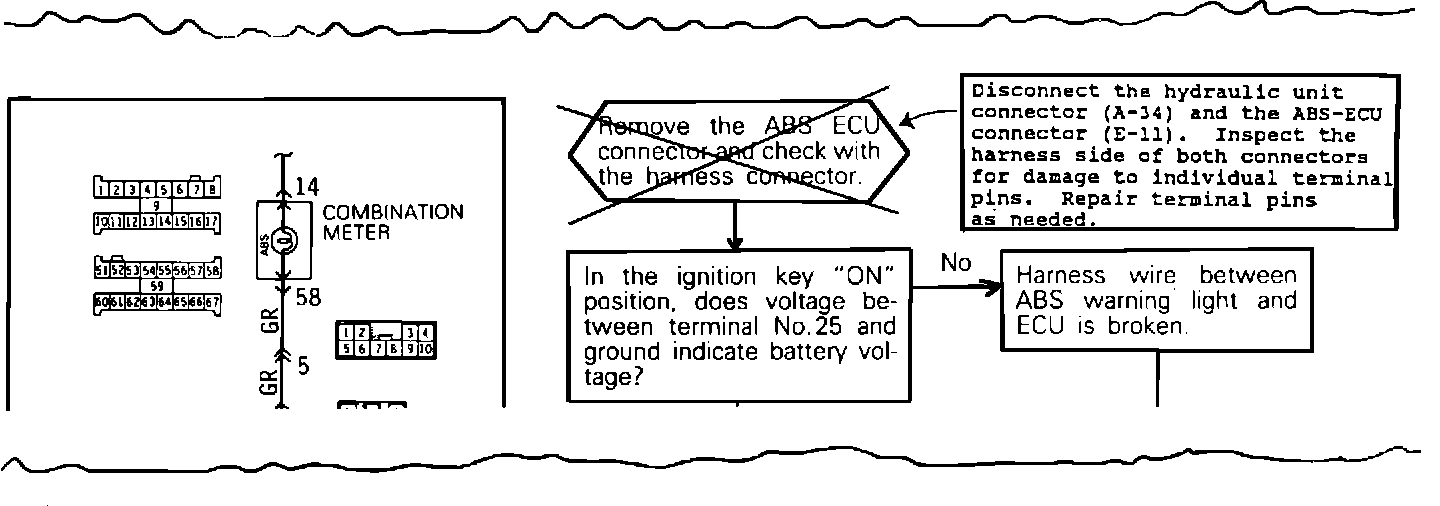

Revise information for disconnecting and inspecting the hydraulic unit connector and the ABS-ECU connector.
