Rear Suspension

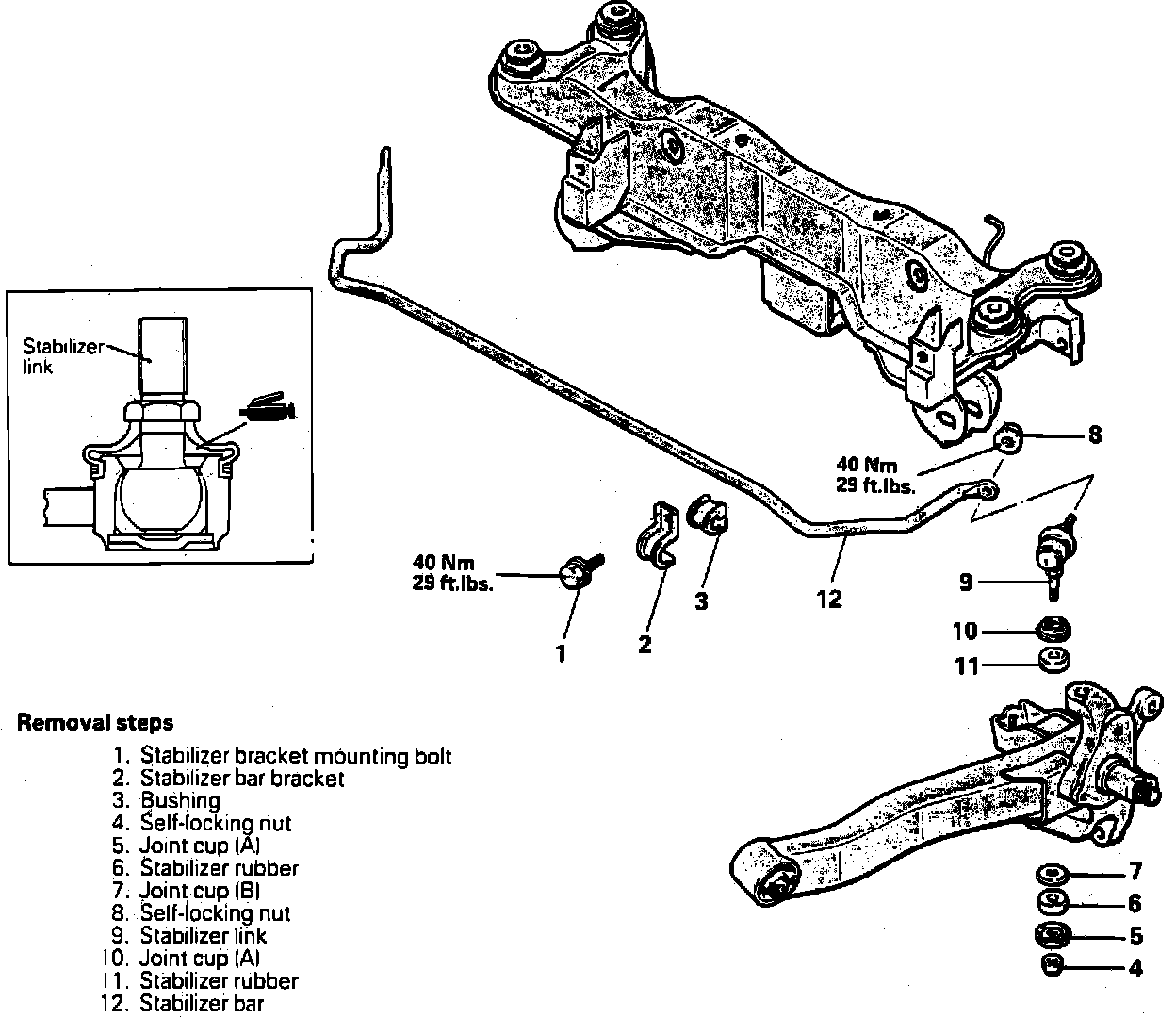

Fig. 15 Replacing Stabilizer Bar:

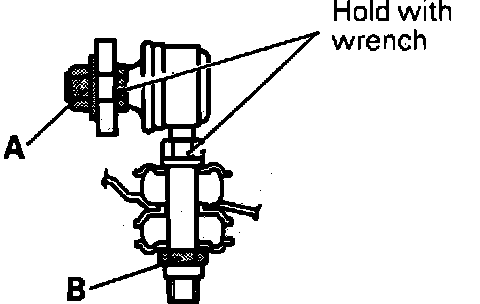

Fig. 16 Installing Stabilizer Link:

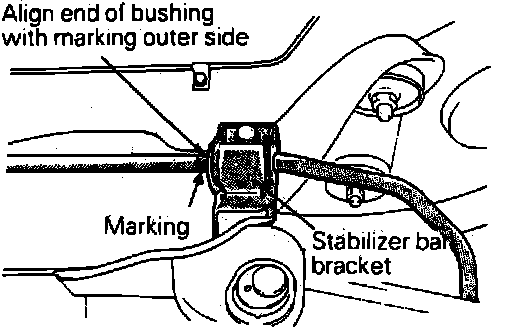

Fig. 17 Aligning Stabilizer Bracket:

Replace stabilizer bar in numbered sequence shown in Fig. 15, noting the following when installing:
1. Hold stabilizer link ball studs with wrench and install self-locking nuts (A), Fig. 16.
2. Holding stabilizer bar link with wrench, tighten self-locking nut (B) so that protrusion of stabilizer link is within .197-.276 inch.
3. Align left frame bushing with stabilizer bar marking end and temporarily tighten stabilizer bar bracket, Fig. 17.
4. Mount right stabilizer bar bracket and temporarily tighten.
5. Temporarily install both ends of stabilizer bar onto links and tighten stabilizer bat bracket bolts.
